In the modern industrial coating field, spray painting production lines have become essential equipment systems for furniture manufacturing, metal processing, automotive parts, and surface treatment of various industrial products. Through automated spraying equipment, these lines can evenly spray liquid paint onto the surface of workpieces, forming a decorative and protective coating.
However, spraying is only the first step in the painting process. After spraying, the paint remains in a liquid or semi-liquid state. Without timely drying, the paint film cannot form a stable structure, and product quality cannot be guaranteed. Therefore, drying equipment is an indispensable component of a complete spray painting production line.
Many companies ask the following question when planning their coating equipment: Why must automated spray painting production lines be equipped with drying equipment?
In fact, drying equipment not only affects the coating curing speed but also directly impacts the hardness, adhesion, and surface quality of the paint film. This article will systematically analyze why spray painting production lines need drying equipment from the perspectives of spray painting process principles, paint characteristics, and production efficiency.
What is a Spray Painting Production Line?

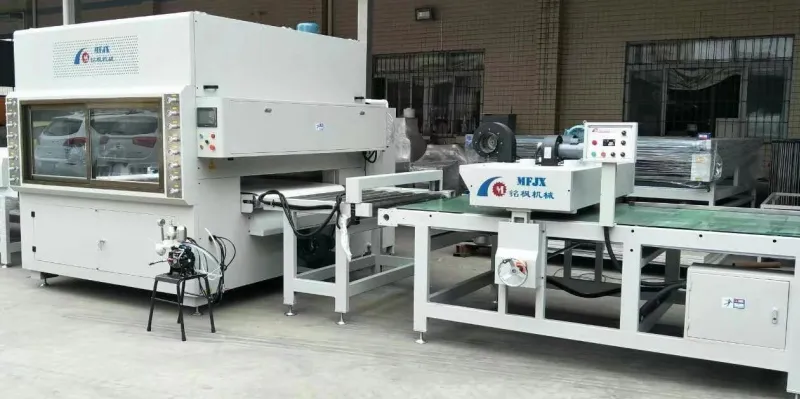

A spray painting production line is an automated coating system that uses automatic spray guns or spraying equipment to atomize and spray paint onto the surface of a workpiece. The workpiece, driven by a conveyor system, undergoes multiple processes including cleaning, spraying, leveling, and drying, ultimately forming a stable paint film.
A complete spray painting production line typically includes the following main stages:
• Workpiece conveying
• Surface cleaning
• Automatic spraying
• Paint film leveling
• Drying and curing
• Cooling
• Finished product output
Among these, the drying equipment is a crucial process in a spray painting production line because it directly determines whether a stable paint film can be formed.
Why can't the product be used directly after spraying?
After automatic spraying, although the paint has adhered to the workpiece surface, the paint film is still in an uncured state.
Without drying, the following problems may occur:
• Paint film is prone to flow
• Dust easily adheres to the surface
• Insufficient paint adhesion
• Low paint film hardness
These problems will seriously affect product quality. Therefore, drying equipment is essential in a spray painting production line to ensure the paint completes the drying or curing process.
What role does drying equipment play in a spray painting production line?
In a spray painting production line, the main function of drying equipment is to quickly dry or cure the paint sprayed on the workpiece surface through heating or radiation.
The drying process typically includes the following stages:
1. Solvent evaporation
2. Paint film leveling and stabilization
3. Chemical reaction curing
Through the action of drying equipment, the solvent in the paint gradually evaporates, and the resin molecules undergo a cross-linking reaction, thereby forming a solid paint film structure.
Therefore, drying equipment is a crucial piece of equipment in a spray painting production line that determines the coating performance.
Why must a spray painting production line be equipped with drying equipment?
From a process perspective, there are several main reasons why a spray painting production line needs drying equipment.
1. Drying equipment can improve the curing speed of paint films.
After spraying, paint needs to undergo two processes: drying and curing.
Drying mainly refers to solvent evaporation, while curing involves the resin in the paint undergoing a chemical reaction to form a stable structure.
Without drying equipment, the drying speed of paint will be very slow, which may lead to:
• Uneven paint film surface
• High surface tackiness
• Unstable coating performance
With drying equipment in a spray painting production line, paint curing can be completed in a shorter time, allowing the paint film to form a stable structure.
2. Drying equipment can improve the production efficiency of spray painting production lines.
Without drying equipment, paint usually needs to dry naturally, which often takes a long time.
For industrial production, if each workpiece needs to wait for a long time to dry, production efficiency will be greatly reduced.
Therefore, using drying equipment in a spray painting production line can significantly shorten the drying time. For example:
• Natural drying may take several hours
• Drying equipment usually only takes tens of minutes or even less
This can significantly improve the production efficiency of the spray painting production line.
3. Drying equipment improves paint film quality.
In a spray painting production line, paint film quality depends not only on the spraying technique but also on the drying process.
Drying equipment provides a stable temperature environment, allowing the paint to dry evenly, thus improving paint film quality.
Specifically, this manifests as:
• A smoother paint film surface
• More uniform paint thickness
• Stronger adhesion
• More stable surface gloss
Without drying equipment, the paint drying process is affected by ambient temperature and humidity, leading to unstable paint film quality.
4. Drying equipment prevents coating defects.
In a spray painting production line, if the paint dries too slowly, various surface defects may occur, such as:
• Sagging
• Orange peel
• Bubbling
• Dust buildup
These defects are usually related to the drying process.
By using drying equipment, the paint curing speed can be accelerated, thereby reducing the occurrence of coating defects.
What are some commonly used drying equipment types in spray painting production lines?
The type of drying equipment varies depending on the type of spray painting production line.
Common drying equipment includes the following:
1. Hot Air Drying Oven
Hot air drying ovens are one of the most common drying equipment in paint spraying production lines.
They heat air and circulate it, gradually drying the paint on the workpiece surface.
This equipment is suitable for various types of paints, such as:
• Water-based paints
• Solvent-based paints
• Oil-based paints
The advantages of hot air drying ovens are their stable structure and wide applicability.
2. Infrared Drying Equipment
Infrared drying equipment uses infrared radiation to heat the workpiece surface, rapidly heating and drying the paint.
The characteristics of this equipment are:
• Fast heating speed
• High energy efficiency
• Small footprint
In some paint spraying production lines, infrared equipment is often used as a pre-drying device.
3. UV Curing Equipment
For paint spraying production lines using UV paints, UV curing equipment is an essential drying device.
UV equipment uses ultraviolet light to cause the photoinitiators in the paint to react, thus rapidly curing the paint.
This equipment has the following characteristics:
• Very fast curing speed
• Low energy consumption
• High film hardness
Therefore, UV equipment is a highly efficient drying solution in paint spraying production lines using UV coatings.
Where is the drying equipment typically installed in a paint spraying production line?
In a complete paint spraying production line, the drying equipment is usually located after the painting process.
A typical equipment arrangement is as follows:
• Feed conveyor
• Surface cleaning equipment
• Automatic painting equipment
• Leveling section
• Drying equipment
• Cooling section
• Discharge conveyor
This structure ensures that the coating has sufficient time to level after spraying before entering the drying stage.
What factors need to be considered in the design of drying equipment for a paint spraying production line?
To ensure the stable operation of the paint spraying production line, several factors need to be considered in the design of the drying equipment.
1. Temperature control
Different coatings require different drying temperatures; therefore, the equipment must have a stable temperature control system.
2. Conveyor Speed
The conveyor speed of a paint spraying production line affects drying time; therefore, the length of the drying oven needs to be designed according to the production cycle.
3. Ventilation System
Drying equipment requires a good ventilation system to remove volatile gases.
4. Energy Efficiency
A well-designed drying system can reduce energy consumption and improve production efficiency.
Why must a paint spraying production line be equipped with drying equipment?
In summary, drying equipment is an indispensable and crucial piece of equipment in a paint spraying production line.
The main functions of drying equipment include:
• Enabling rapid drying and curing of paint
• Improving the production efficiency of the paint spraying production line
• Enhancing paint film quality and adhesion
• Reducing surface defects
• Ensuring stable product performance
In modern industrial production, if a paint spraying production line is not equipped with drying equipment, it will not only affect production efficiency but may also lead to unstable product quality.
Therefore, when designing and constructing a paint spraying production line, the proper configuration of drying equipment is a crucial step in ensuring coating quality.
