Which roller coating machines require UV coating?

In modern coating technology, matching coating type with coating equipment is a key factor in achieving high-quality coated products. UV coatings are widely used in many high-end manufacturing fields due to their fast-drying, high-solids content, and environmental friendliness.

However, UV coatings are not a universally compatible coating system for all coating methods; they place higher technical demands on process equipment. Within the coating equipment sector, UV roller coating machines, due to their structural advantages and coating stability, are one of the primary types of equipment suitable for UV coatings.

This article systematically answers the questions: Which roller coating machines require UV coating? Why? Focusing on the key keyword "UV roller coating machine," it provides an in-depth analysis.

What is UV coating?

To understand why you should choose a UV roller coating machine, it's important to first understand the basic characteristics of UV coatings. UV coatings (Ultra Violet Curing Coatings) are a type of liquid coating that cures rapidly through polymerization under ultraviolet light.

They offer the following notable characteristics:

    · High solids content: typically 100% solids, zero volatile organic compounds (VOCs), and excellent environmental performance;

    · Fast curing: reacts instantly under UV irradiation, requiring no prolonged drying time;

    · Excellent surface properties: exhibits high hardness, strong abrasion resistance, and a high gloss after curing;

    · Suitable for a variety of surfaces, such as wood, plastic, paper, metal, glass, and composites;

    · Sensitive operating window: sensitive to process parameters such as ambient temperature, light intensity, and coating thickness.

Therefore, UV coating application requires a high-precision, highly stable coating system, particularly to ensure uniform coating and sufficient curing.

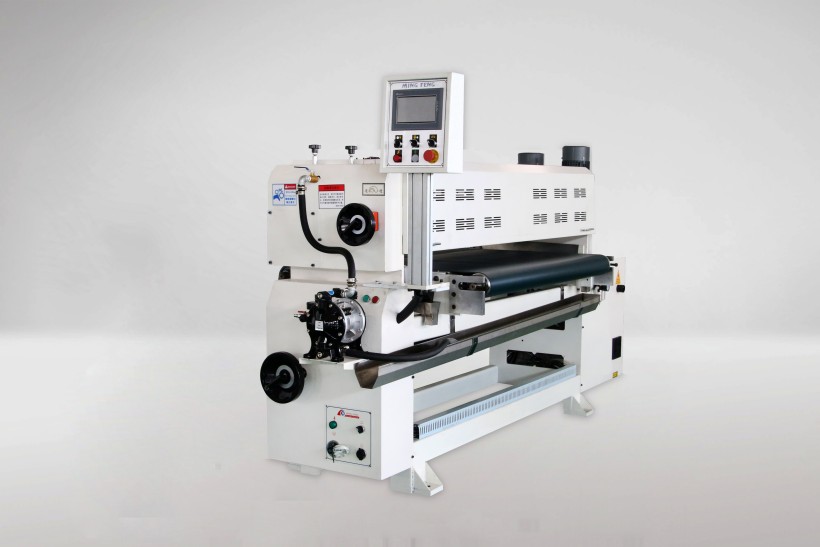

What is a UV roller coating machine?

A UV roller coating machine is a roller-type coating machine specifically designed or adapted for UV coating. Its primary function is to evenly apply UV coating to a substrate surface using a roller coating method, and then rapidly cure the coating using a UV curing system in the subsequent process.

The differences between UV roller coating machines and traditional equipment include:

    · Equipped with a UV lamp curing system or capable of operating in conjunction with one;

    · The roller material and structure are suitable for high-viscosity, highly reactive UV coatings;

    · Precise coating thickness control, meeting the stringent requirements of UV curing for coating uniformity;

    · Excellent overall sealing, preventing premature UV reaction;

    · Rigorous thermal management design, ensuring stable coating rheological properties.

In summary, UV roller coating machines are high-performance equipment specifically designed for UV coating processes and are the foundation for achieving high-quality UV coatings.

Why use a UV roller coating machine for UV coatings?

1. UV coatings require high coating thickness uniformity

UV coatings must form a uniform, continuous coating to fully cure under UV irradiation, avoiding "curing dead spots" or "drying on the outside but not on the inside." Roller coating, due to its stable physical contact mechanism, effectively controls coating thickness and uniformity, particularly within the 10–80μm range.

UV roller coating machines offer advantages in this regard:

    · Precisely control coating weight using a metering roller or doctor blade system;

    · Adjustable roller gap and speed ratio for optimized coating quality;

    · Close contact between the roller and the substrate, minimizing streaks and bubbles.

2. UV coatings require high application speeds

UV coatings rapidly polymerize upon exposure to UV light, resulting in a very short window from coating to curing. If the coating speed is too slow, the coating may prematurely react within the equipment or before contact with the substrate, causing contamination or equipment blockage.

The advantages of UV roller coating machines include:

    · Continuous high-speed operation (typical speeds of 10–100 m/min);

    · Inline connection to a UV curing system for simultaneous coating and curing;

    · A closed paint supply system prevents premature reactions caused by UV exposure.

3. UV coatings' high viscosity makes them suitable for roller coating

Compared to water-based or oil-based coatings, UV coatings typically have higher viscosities (up to several thousand cP), making them unsuitable for spraying or dipping. Roller coating is a typical high-viscosity, adaptive coating method that uses mechanical extrusion to spread the coating steadily and continuously onto the substrate surface.

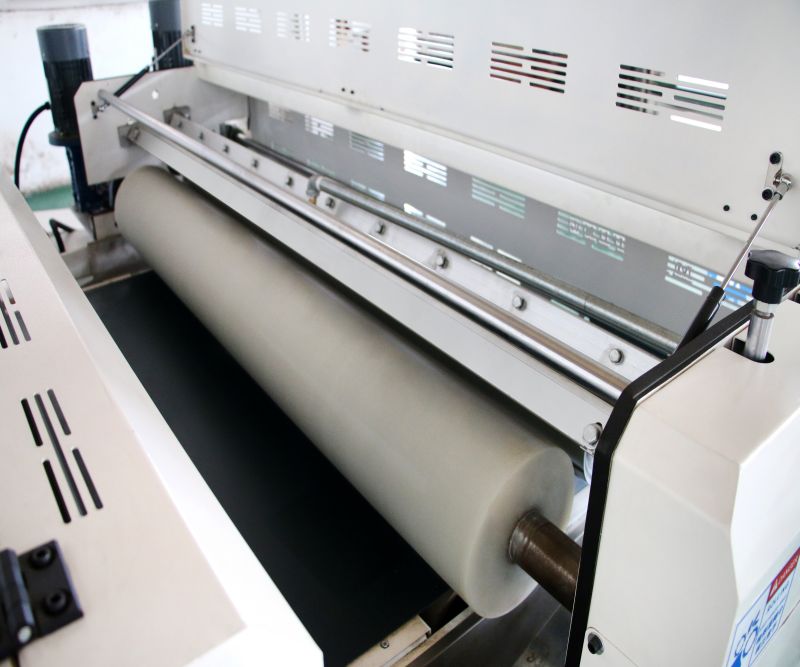

UV roller coating machines utilize a combination of wear-resistant rubber or metal rollers, ensuring excellent fluidity and spreadability even with high-viscosity coatings, preventing stringing, dripping, or localized buildup.

4. Driven by Coating Functionality

UV coatings are commonly used to achieve the following surface properties:

    · Gloss enhancement (gloss, matte, mirror effects);

    · Surface hardness enhancement (3H–9H);

    · Chemical and scratch resistance;

    · UV and aging resistance.

All of these properties require precise coating thickness, complete curing, and flawless appearance, which are precisely what UV roller coating machines can provide.

Which roller coating machines are classified as "UV"?

Not all roller coating equipment can directly handle UV coatings. Only equipment that has been adapted in terms of structure, configuration, materials, and control systems can be considered a true UV roller coating machine. Commonly used coating types include:

1. Reverse Roller UV Coater

    ·The coating roller rotates in opposite directions to the substrate, creating a high shear zone;

    ·Extremely precise coating thickness control;

    ·Commonly used for high-gloss coatings and functional protective layers.

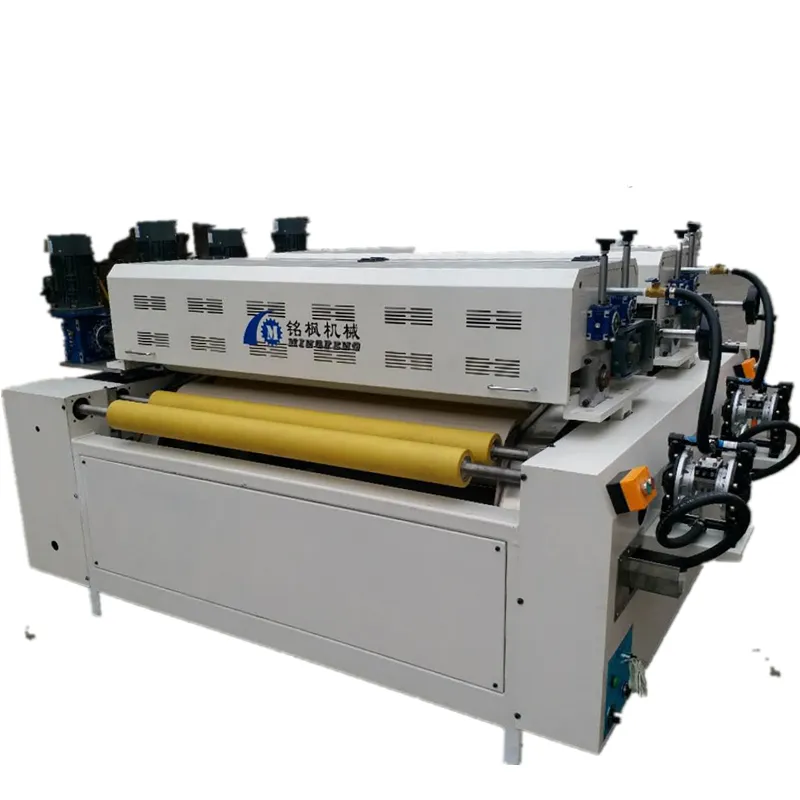

2. Three-Roller UV Coater

    ·Coating is transferred in multiple stages via a feed roller, metering roller, and coating roller;

    ·Strong stability, suitable for high-viscosity UV coatings;

    ·Adaptable to substrates with a variety of surface tensions.

3. Double-Side UV Coater

    ·Coats both sides simultaneously;

    ·Used for double-sided UV coating or functional treatment of sheets, coils, and other materials.

4. Fully Automatic UV Roller Coating Line

    ·Integrates coating, UV curing, cooling, and winding/cutting;

    ·Suitable for high-volume continuous processing;

    ·Control system supports intelligent adjustment of parameters such as coating speed, coating thickness, and UV energy density.

Only equipment that meets the above requirements can truly unleash the performance advantages of UV coatings, thus qualifying as a professional UV roller coating machine system.

Which materials are best suited for coating with a UV roller coating machine?

Not all substrates are suitable for UV coating. UV roller coating machines are commonly used for the following surface treatments:

    ·Wood and wood veneers: UV coating of furniture, flooring, and decorative panels;

    ·Plastic films: Surface hardening of PET, PVC, and BOPP films;

    ·Paper: UV varnishing of paper, covers, gift boxes, etc.;

    ·Metal sheets: Protection and decoration of aluminum and color-coated steel sheets;

    ·Optical film materials: Scratch-resistant films, anti-reflective films, and composite optical films.

These surfaces require strong coating adhesion, a uniform appearance, and excellent surface properties, and UV roller coating machines can meet all of these technical requirements.

Why use a UV roller coating machine for UV coatings?

In summary, the UV roller coating machine is the only equipment that simultaneously meets the four key requirements of UV coatings: precise coating, stable operation, uniform coating, and fast curing. It offers the following irreplaceable advantages in coating systems:

Therefore, any company using UV coatings for high-quality industrial coating must adopt this specialized equipment to ensure controllable coating quality, high production line efficiency, and stable product performance.

What kind of technical support and training can be expected post-purchase?

After you purchase a machine or a full production line from XMF Machinery, your team receives thorough support, including on-site commissioning, operator training, maintenance guidance, and process optimization assistance. As a manufacturer and supplier, we also provide digital manuals, remote diagnostics, and spare parts quotes.

Our company ensures fast response times for technical queries and can arrange consumable supplies through wholesale or bulk purchasing arrangements with discounted prices.
