Which coating machine should you use to paint furniture?

Surface coating is a crucial process in the furniture manufacturing industry, directly impacting not only the product's visual aesthetics but also its wear resistance, moisture resistance, and longevity. Choosing the right coating equipment is a crucial step in the furniture painting process.

This article will systematically analyze the application of various coating machine types in furniture painting, focusing on the process advantages, application scope, and technical features of UV roller coating machines. This will help you make an informed decision about which coating machine to use to achieve high-quality furniture finishes.

What are the requirements and challenges of furniture painting?

Before discussing which coating machine to use, we first need to clarify the basic requirements for furniture painting:

    · Appearance quality: The coating must be uniform, bubble-free, and scratch-free, meeting high-end visual standards;

    · Mechanical properties: Excellent adhesion, hardness, and abrasion resistance;

    · Environmental requirements: Comply with VOC (volatile organic compound) emission control standards;

    · Processing efficiency: Adaptable to the pace of mass production, with high automation and stability;

    · Material compatibility: Compatible with a variety of substrates, such as solid wood, MDF, multi-layer board, and veneer.

Based on these requirements, the commonly used coating equipment for painted furniture on the market mainly includes: spray equipment, curtain coaters, knife coaters, and roller coaters. UV roller coating machines, as a high-efficiency subcategory of roller coaters, offer significant advantages in efficiency, quality, and environmental protection.

What are the common types of furniture coating equipment?

Common types of furniture coating equipment include:

1. Manual or automatic spray coating equipment

2. Curtain coater

3. Knife coater

4. UV roller coating machine

1. Manual or automatic spray coating equipment

Applicability: Suitable for furniture components with complex shapes and strong three-dimensional structures.

Advantages of manual or automatic spray coating:

    · Flexible operation and adjustable thickness;

    · Capable of handling curved surfaces, corners, and carved structures.

Disadvantages of manual or automatic spray coating:

    · Low paint utilization (approximately 30-50%), resulting in waste;

    · High reliance on operator skill;

    · High environmental pollution, requiring an efficient exhaust system.

2. Curtain coater

Applicability: Suitable for high-volume coating of flat panels.

Advantages of curtain coaters:

    · Can produce thick films (greater than 100μm) in one pass;

    · Excellent film smoothness.

Disadvantages of Curtain Coating Machines:

    ·High paint consumption;

    ·Used for a more complex primer process, limiting topcoat application;

    ·High paint flow requirements.

3. Knife Coater

Suitability: Suitable for basecoating where thickness control is critical.

Advantages of Knife Coater:

    ·Widely adjustable coating range;

    ·Can produce thick coatings.

Disadvantages of Knife Coater:

    ·Slow speed;

    ·Unsuitable for high-gloss coatings and high-hardness finishes.

4. UV Roller Coating Machine

Suitability: Widely used for coating flat or slightly curved substrates such as panel furniture, wooden doors, and cabinet door panels.

Advantages of UV roller coating machines:

    · Fast coating speed, suitable for large-scale industrial production;

    · Uniform and stable coating;

    · Rapid curing when used in conjunction with UV coatings;

    · Environmentally friendly and energy-efficient, with extremely low VOC emissions;

    · High coating utilization rate (over 90%);

    · High degree of automation, suitable for assembly line operations.

Disadvantages of UV roller coating machines:

    · Unsuitable for processing complex three-dimensional structures;

    · High initial equipment investment.

From the above comparison, it can be seen that in the furniture industry, especially in the large-scale production of panel furniture, UV roller coating machines are the most cost-effective coating option.

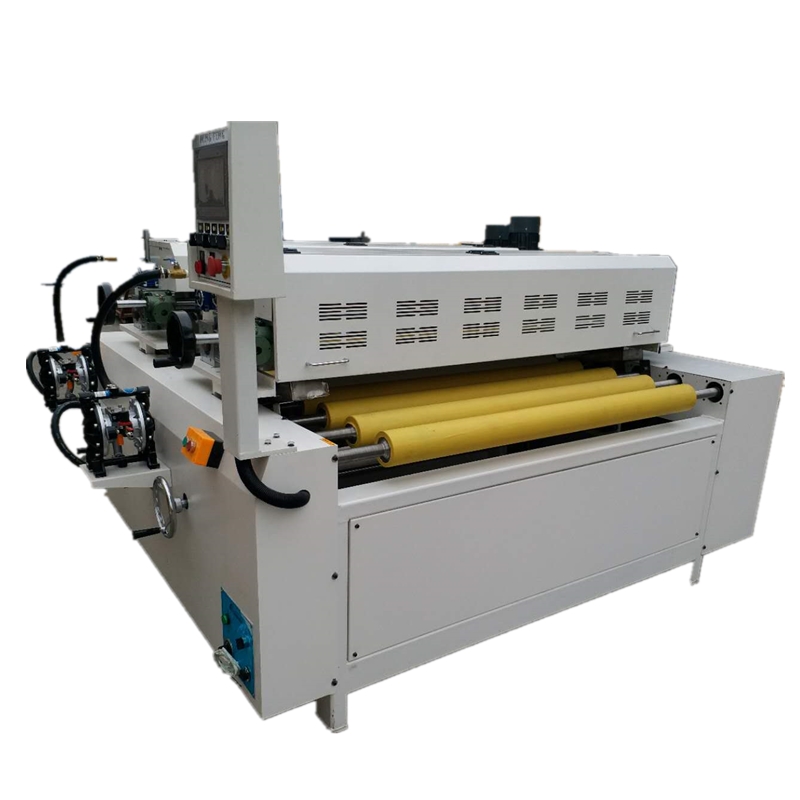

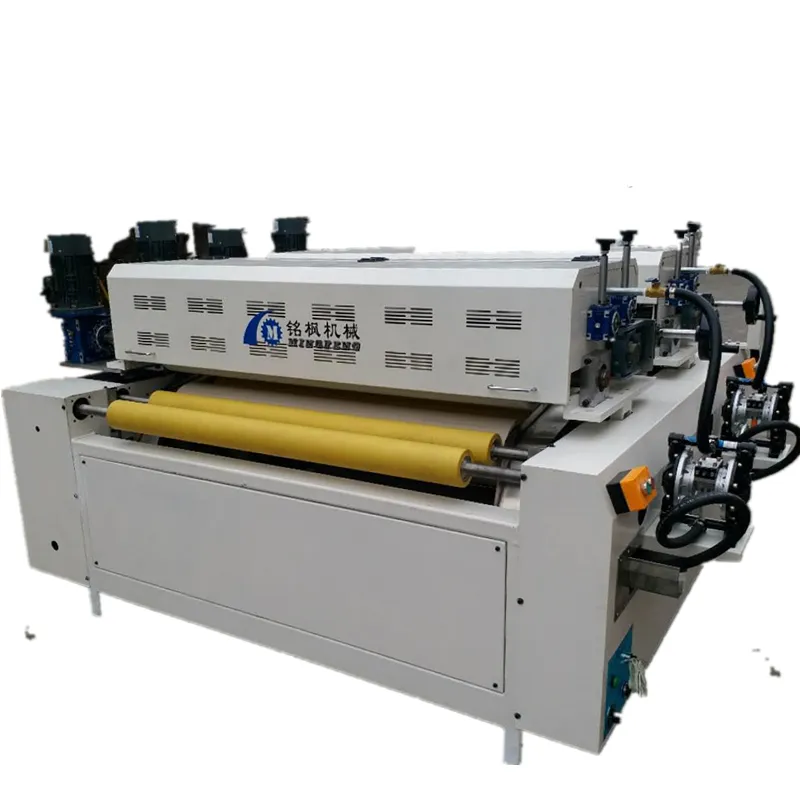

What is a UV roller coating machine? - Process and Structure

1. Working Principle

The UV roller coating machine uses a combination of coating rollers, metering rollers, and inking rollers to evenly apply UV-curable coating to the surface of the panel. Subsequently, a UV light source system provides instant curing, causing the coating to polymerize into a film, resulting in a hard, smooth surface layer.

2. Typical Structural Components

    · Feed conveyor: Ensures smooth workpiece transport;

    · Metering roller and inking roller system: Controls coating thickness and flow;

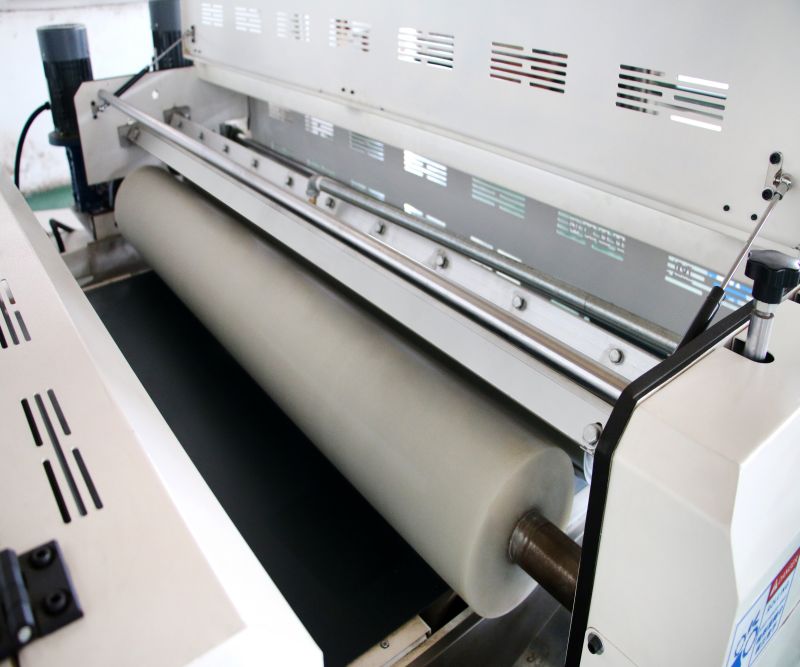

    · Coating roller (rubber or metal): Evenly transfers coating to the workpiece surface;

    · UV curing light box: Multi-stage setting for rapid UV curing;

    · Cooling and exhaust system: Prevents heat buildup and ensures efficient curing;

    · Electronic control system (PLC control): Precisely adjusts parameters such as coating speed, roller gap, and UV power.

What are the advantages of a UV roller coating machine for furniture painting?

Advantages of UV roller coating machines for furniture painting:

1. Uniform coating quality and controllable thickness

2. Suitable for glossy and matte finishes, and a variety of paint formulas

3. High paint utilization, energy saving and environmental protection

4. Fast UV curing speed, improving production efficiency

5. Wide range of applications, suitable for a variety of furniture components

1. Uniform coating quality and controllable thickness

By adjusting roller pressure and viscosity parameters, the UV roller coating machine can achieve precise control of coating thickness within a range of 5μm to 100μm, avoiding defects such as sagging, blistering, and orange peel. Its high repeatability ensures product consistency and meets the high quality stability requirements of industrial production.

2. Suitable for glossy and matte finishes, and a variety of paint formulas

Whether used for high-gloss decorative surfaces or matte wear-resistant surfaces, the UV roller coating machine can adapt to different UV paint types (transparent, white base, closed base, open base, etc.). By changing rollers with different hardness and patterns, visual effects such as wood grain, metallic, and sand texture can be achieved.

3. High paint utilization, energy-saving and environmentally friendly

Compared to spray coating processes, UV roller coating machines have extremely low paint loss, effectively transferring most of the paint to the substrate surface. The paint recovery system also allows for recycling. Furthermore, the UV curing process does not release solvents, aligning with green manufacturing principles.

4. Fast UV curing speed, improving production efficiency

The UV roller coating machine can achieve a continuous operating speed of 10 to 30 meters per minute. Compared to traditional drying, UV curing eliminates the need for a drying process and fully cures in just 1 to 2 seconds, significantly shortening the process cycle and accommodating high-speed production lines.

5. Wide range of applications, suitable for a variety of furniture components

It is suitable for furniture substrates such as MDF, MDF, solid wood multilayer board, and particleboard. It is particularly adept at efficiently batch coating flat surfaces such as door panels, flooring, cabinet panels, and wainscoting.

What is the difference between a UV roller coating machine and other roller coating equipment?

Among roller coating equipment, UV roller coating machines offer several distinct advantages over traditional roller coating machines:

As can be seen from the comparison, UV roller coating machines not only offer superior coating results but also offer significant advantages in environmental protection, safety, and operating costs.

Key Process Controls in UV Roller Coating Machine Operation

1. Matching Coating Speed with Coating Thickness

The faster the speed, the less paint is applied per unit area. Adjusting the speed requires a comprehensive consideration of the paint viscosity and roller gap.

2. UV Lamp Power and Distance Adjustment

Different coatings absorb UV energy differently. The power (typically 80W/cm2-120W/cm2) and the distance between the lamp and the workpiece (approximately 5-15cm) should be adjusted based on the coating thickness and color depth.

3. Paint Circulation and Filtration System

Prevents particle clogging of the rollers and ensures a clean coating.

4. Temperature and Humidity Control

UV curing is sensitive to ambient temperature and humidity. It is recommended to maintain a workshop temperature of 20°C-28°C and a humidity of 50%-65%.

The Preferred Equipment for Furniture Painting—UV Roller Coating Machines

—Combining the above systematic analysis of furniture coating requirements, the characteristics of various coating equipment types, and the advantages of UV roller coating machines, we can clearly conclude:

For mass-produced, high-quality coating of flat furniture components, UV roller coating machines are currently the most ideal choice.

Their high efficiency, high quality, low pollution, and low energy consumption have earned them a central position in modern furniture manufacturing. Especially for large-scale furniture manufacturers striving for environmental protection, automation, and stability, UV roller coating machines are almost standard equipment.

Of course, for complex structures or special-shaped components, they still require a combination with other equipment such as spray coating. However, for over 90% of flat surface coating tasks, UV roller coating machines undoubtedly guarantee both efficiency and effectiveness.
