In the modern furniture manufacturing industry, surface coating technology has gradually transformed from traditional manual spraying to an automated, mechanized, and continuous production model. In this transformation process, the combined application of UV Dryer Machines and coating machines has become crucial for improving coating efficiency and quality.
Many furniture manufacturers, when planning automated coating lines, often ask a core question:
“What stage does the UV Dryer Machine actually occupy in the furniture coating process?”
This not only relates to the design of the coating process sequence but also affects paint film adhesion, gloss, hardness, and the rhythm and efficiency of the entire production line.
This article will systematically explain, from a professional perspective, the specific location, functional logic, and relationship with cooperating equipment (especially coating machines) of the UV Dryer Machine in the furniture coating line, helping you to fully understand its key role in the entire furniture surface coating process.
What is a UV Dryer Machine? Why is it indispensable for furniture coating?

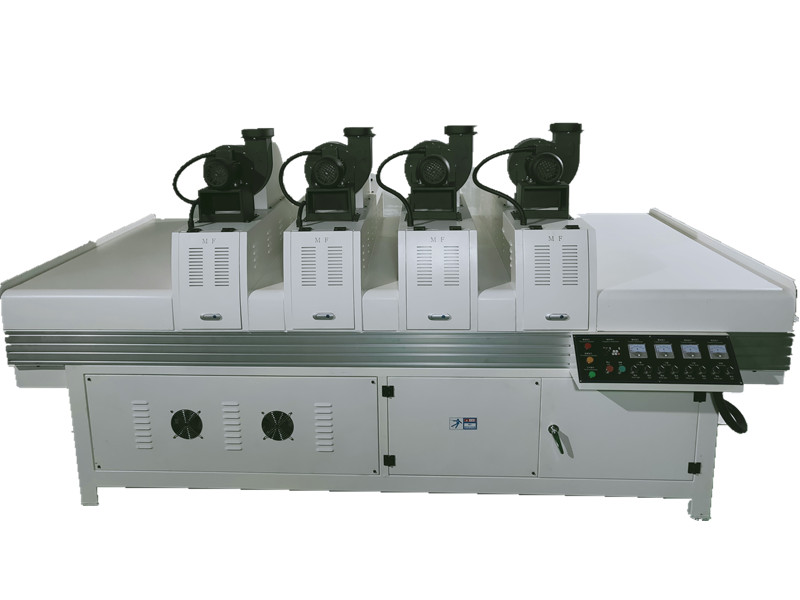

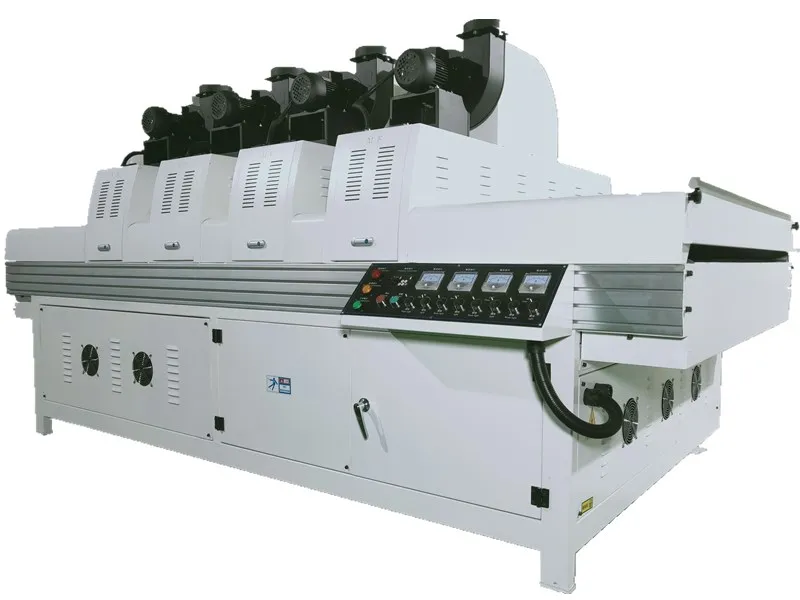

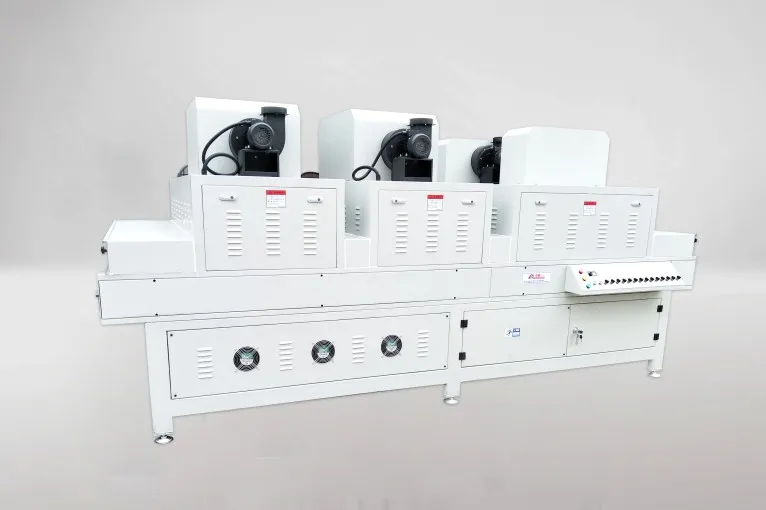

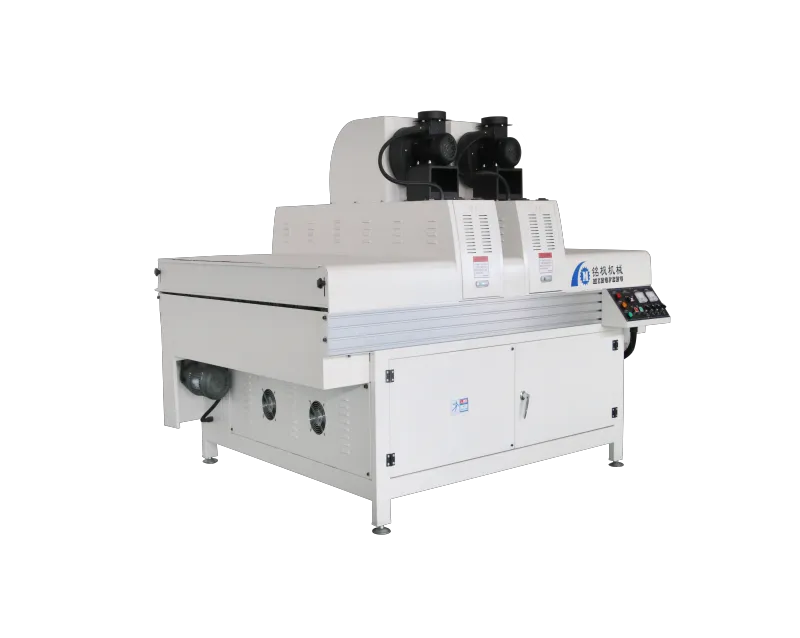

A UV Dryer Machine is a device that uses ultraviolet (UV) light energy to rapidly cure UV coatings containing photoinitiators.
Unlike traditional hot air drying, the UV Dryer Machine uses ultraviolet light irradiation to complete the "chemical reaction" of the coating in a few seconds, forming a high-hardness paint film.
Its main features include:
• Fast curing speed – the paint film hardens in a few seconds;
• Low energy consumption – no need for prolonged heating or ventilation;
• Small footprint – compact size, suitable for automated assembly lines;
• Superior coating performance – high hardness, strong wear resistance, and stable gloss;
• Good environmental performance – no solvent volatilization, extremely low VOC emissions.
In furniture coating, the UV Dryer Machine is mainly used in conjunction with coating machines, sanding machines, automatic spraying machines, and other equipment to achieve a cyclical process of "coating → curing → sanding → recoating".
What are the standard stages of the furniture coating process?
A typical automated furniture coating line (especially for flat panels) usually includes the following main processes:
1. Substrate pre-treatment (sanding and dust removal)
2. Primer coating (using a coating machine)
3. First UV curing (using a UV Dryer Machine)
4. Primer sanding (sanding machine)
5. Topcoat application (coating machine or spray machine)
6. Second UV curing (UV Dryer Machine)
7. Polishing or packaging and unloading
As can be seen, the UV Dryer Machine is usually located after the coating machine and before the sanding machine, acting as the curing device after each layer of coating is applied.
In other words:
In the furniture coating process, the UV Dryer Machine is a key piece of equipment for "immediate post-coating curing," located after each painting operation to quickly harden the paint layer.
Where exactly is the UV Dryer Machine located in the entire coating process?
To understand the specific location of the UV Dryer Machine, we can divide the coating line process into several stages.
1. First Stage: Substrate Sanding and Dust Removal (Pre-treatment)
Before entering the production line, furniture panels are usually pre-treated for initial leveling by a sanding machine, and then cleaned of dust by a dust removal machine. This stage does not involve coating and does not require a UV Dryer Machine.
Main equipment:
• Wide-belt sanding machine (sanding machine)
• Dust removal machine
UV Dryer Machine location: Not yet in the process sequence.
2. Second Stage: Primer Coating and First Curing
After sanding and cleaning, the substrate is first uniformly coated with primer using a coating machine (such as a roller coating machine).
At this point, the primer layer is not yet cured, and the coating surface is still wet. It must immediately undergo UV curing using a UV Dryer Machine.
Main equipment:
• Roller coating machine (coating machine)
• UV Dryer Machine (primer curing)
UV Dryer Machine location:
Located downstream of the primer coating machine, immediately following the coating machine.
3. Third Stage: Primer Sanding and Intermediate Treatment
After the primer is cured by the UV Dryer Machine, the surface is usually hard but may have slight particles or micro-ripples. At this point, the surface needs to be leveled and smoothed using a sanding machine to prepare it for the topcoat.
Main equipment:
• Sanding machine
• Dust collector
UV Dryer Machine location:
Curing is complete at this stage, and the UV Dryer Machine is not currently in operation.
4. Fourth Stage: Topcoat Application and Second Curing
After sanding the primer, the workpiece enters the coating machine or automatic spraying machine again for topcoat application.
This layer of topcoat often determines the final appearance, gloss, and feel of the furniture. After painting, it must also be cured again using a UV Dryer Machine.
Main equipment:
• Coating machine (topcoat machine) or automatic spraying machine
• UV Dryer Machine (topcoat curing)
UV Dryer Machine location:
Immediately following the topcoat coating machine, it is the downstream equipment of the entire coating line.
5. Fifth Stage: Surface Polishing and Output
Some high-gloss products require polishing or waxing after the topcoat curing; the UV Dryer Machine is not involved at this stage.
Why must the UV Dryer Machine be used in conjunction with the coating machine?
In furniture coating production, the coating machine and UV Dryer Machine are "process partners," and neither is dispensable.
The relationship between the two can be understood as: "The coating machine is responsible for applying the paint, and the UV Dryer Machine is responsible for curing."
If there is only a coating machine but no UV Dryer Machine, the coating will not be able to form a film quickly;
If there is only a UV Dryer Machine but no coating machine, there is no paint to cure, and the entire process chain cannot be established.
The significance of their cooperation includes:
1. Ensuring paint film hardness and adhesion
After the coating machine applies the paint, it must be cured immediately; otherwise, the paint film will absorb dust or produce streaks. The instant curing of the UV Dryer Machine avoids these problems.
2. Achieving continuous production
When the coating machine and UV Dryer Machine are connected in series, they can form an automated cycle of "painting—curing—sanding—re-painting," increasing the production rate.
3. Ensuring controllable coating thickness
The coating machine controls the thickness of the paint layer, while the UV Dryer Machine controls the curing depth. The interaction of the two ensures a uniform and stable paint film. 4. Shortening Production Cycles
UV curing takes only a few seconds, significantly reducing drying time and increasing production efficiency several times over.
Is the function of the UV Dryer Machine the same in different coating layers?
In furniture coating processes, multiple layers of coating are typically used: sealer, primer, and topcoat.
Although the function of the UV Dryer Machine is similar in each coating layer, the specific effects differ slightly.
1. Sealer Layer Curing
• Function: Quickly seals wood pores and forms an adhesion base;
• Requirement: Moderate curing strength to prevent excessive hardness that could reduce interlayer adhesion.
2. Primer Layer Curing
• Function: Provides thickness and flatness;
• Requirement: Sufficient curing and a smooth paint film to support subsequent sanding.
3. Topcoat Layer Curing
• Function: Forms the final decorative layer, determining gloss and hardness;
• Requirement: Thorough curing, no surface particles, and wear and scratch resistance.
Therefore, multiple UV Dryer Machines are usually configured in a furniture coating line:
After each coating machine, there is a UV Dryer Machine immediately following it.
How many UV Dryer Machines are typically configured in a furniture coating production line?
This depends on the number of layers and functional requirements of the entire production line. Generally:
Number of Coating Layers | Number of Coating Machines | Number of UV Dryer Machines | Configuration Instructions |
| Single layer (simple gloss) | 1 unit | 1 unit | Only one UV Dryer Machine is needed after the coating machine |
| Double layer (base coat + top coat) | 2 units | 2 units | Each layer is cured independently after coating. |
| Triple layer (sealing primer + base coat + top coat) | 3 units | 3 units | This forms a complete multi-layer system |
| High-end multi-layer system | 4-5 units | 4-5 units | The coating machine and UV Dryer Machine are arranged alternately |
As you can see, the number of UV Dryer Machines basically corresponds one-to-one with the number of coating machines.
How does the working sequence and production rhythm of the UV Dryer Machine match?
In an automated furniture coating line, the UV Dryer Machine must be synchronized with the speed of the coating machine.
If the drying speed is too slow, it will cause panel accumulation; if it is too fast, it will result in incomplete curing.
The typical working sequence is as follows:
• Panels enter the coating machine via a conveyor line;
• The coating machine evenly applies the paint layer;
• The panels immediately enter the UV Dryer Machine;
• The UV lamps instantly irradiate and cure the coating;
• The panels exit the machine and proceed directly to the next process (such as sanding or recoating).
Rhythm matching standards:
• Coating speed: 5–25 meters/minute;
• UV curing time: 1–3 seconds;
• Continuous operation of the entire line, avoiding pauses and cooling.
The Relationship Between UV Dryer Machines and Other Equipment
Equipment used | Function Description |
| Sanding machine | Provides a smooth paint film after curing, improving adhesion for subsequent layers. |
| Automatic spraying machine | Allows for the application of complex colors or textures during the topcoat stage. |
| Conveyor line | Ensures smooth transfer of workpieces between different equipment. |
| Dust collector | Prevents dust from adhering to the uncured paint film. |
| Turning machine | Used for automatic flipping of double-sided panels. |
In a furniture coating line, the UV Dryer Machine not only works in conjunction with the coating machine but also needs to be coordinated with the following equipment:
Why is the placement of the UV Dryer Machine so important?
Improper placement of the UV Dryer Machine will directly affect the coating quality and the overall efficiency of the production line.
For example:
• If the distance from the coating machine is too far, the coating is prone to dust accumulation or sagging;
• If the light energy is insufficient, the paint film will not cure completely;
• If the irradiation angle is uneven, it will cause inconsistent gloss.
Therefore, the correct placement is:
Immediately after the outlet of each coating machine, with a distance of no more than 50cm, ensuring that the panel surface directly enters the UV zone.
