In industries such as furniture, flooring, cabinetry, and decorative building materials, UV roller coating machines have become the main equipment for achieving efficient surface coating.
They can give boards a high-gloss, wear-resistant, and smooth coating effect, and are environmentally friendly, fast, and produce highly consistent finished products.
However, many companies have a key question during the procurement or use process:
👉 What sizes of boards are suitable for UV roller coating machines?
👉 What are the limitations and requirements for different sizes of boards during the roller coating process?
👉 How can the equipment be adjusted according to the size of the boards?
This article will systematically explain the core logic of matching UV roller coating machines with board sizes, helping you make scientific judgments in selection and use.

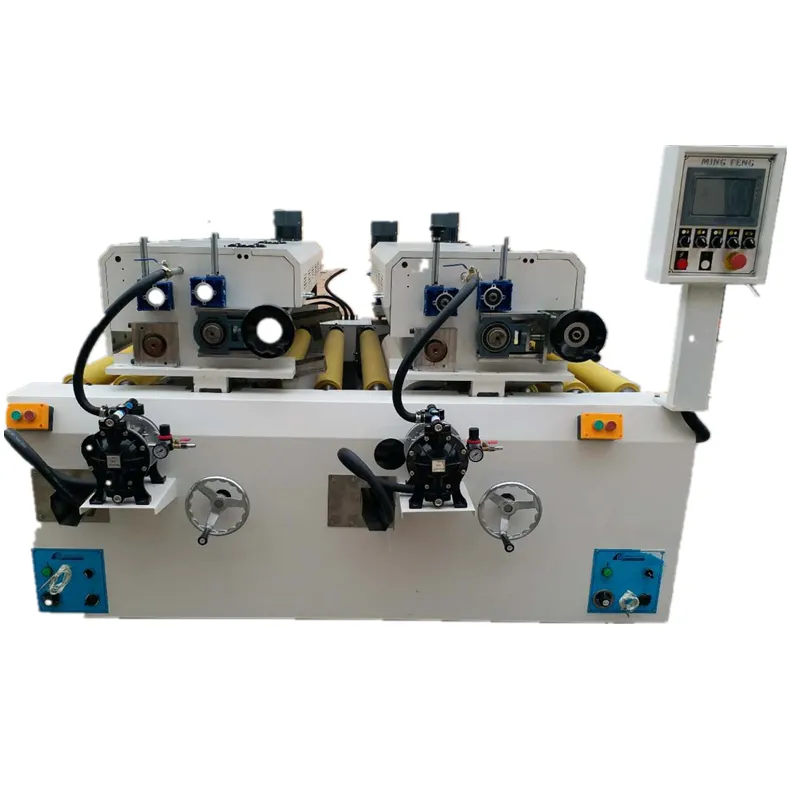

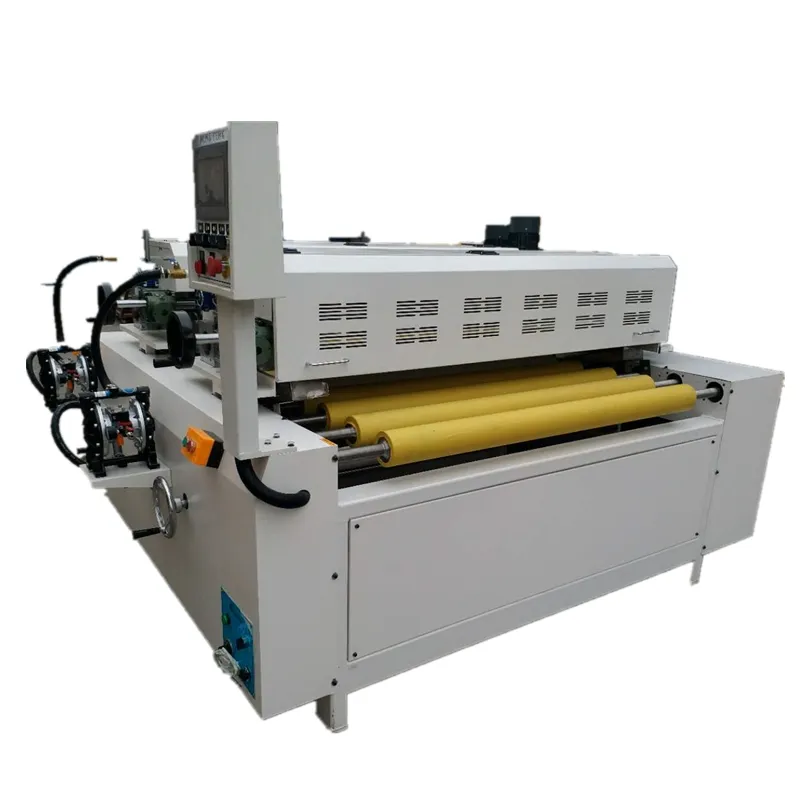

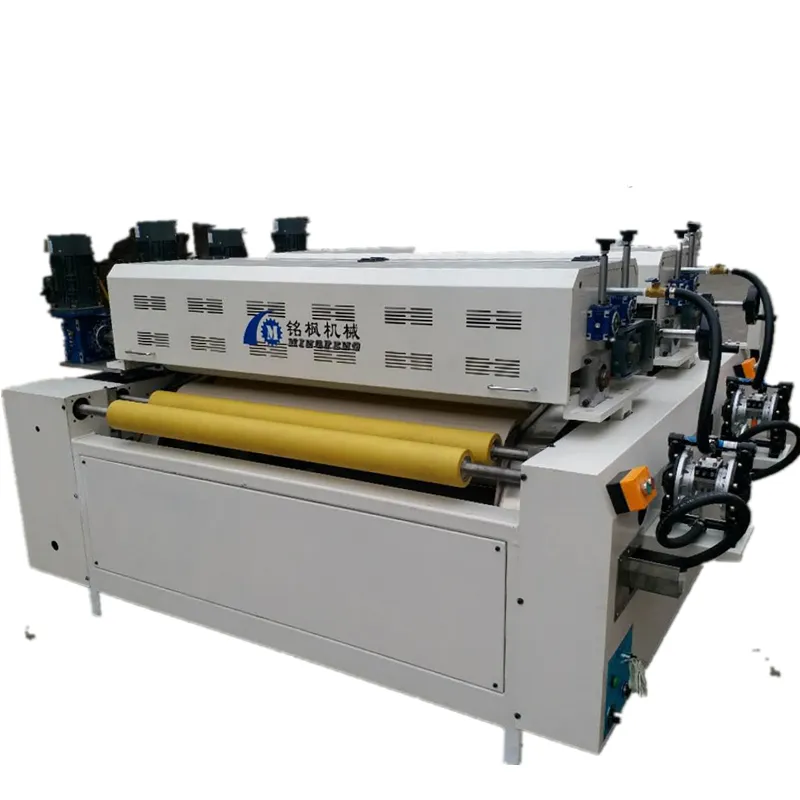

UV Roller Coating Machine: Structure and Working Principle
1. Main Components of a UV Roller Coating Machine
A standard UV roller coating machine typically consists of the following components:
• Paint supply system: Responsible for evenly delivering UV paint to the roller surface;
• Metering and coating roller system: Controls coating thickness through roller gaps;
• Conveying system: Transports the substrate through the coating zone;
• UV curing system: Cures the coating using ultraviolet light;
• Dust removal and cleaning system: Ensures a dust-free substrate surface, preventing defects.
The dimensions of these components, roller width, and adjustable gap range directly determine the range of substrate widths and thicknesses that the UV roller coating machine can handle.

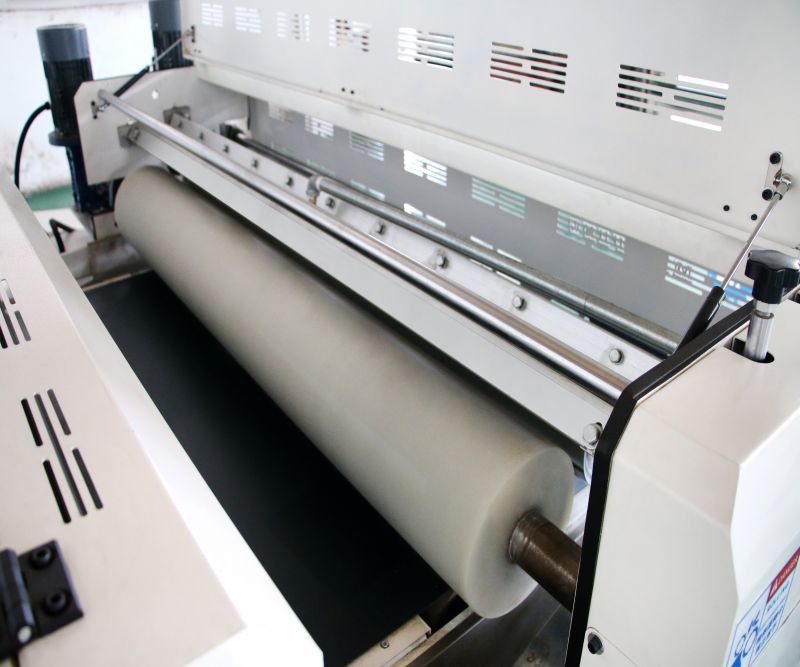

2. Roller Coating Principle
The UV roller coating machine uses the precise coordination of multiple sets of rollers to evenly transfer UV paint to the substrate surface. As the substrate passes through the coating zone at a constant speed, the paint forms a uniform thin film, which is then cured by UV lamps to form a coating.
The entire process requires extremely high standards of substrate flatness, dimensional accuracy, and stability.
Therefore, only when the equipment and substrate dimensions are perfectly matched can a flawless, high-quality coating be achieved.
What is the typical range of board sizes that a UV roller coating machine can handle?
1. Board Width Range
The coating width of a UV roller coating machine is the primary parameter for equipment selection.
Common machines on the market are roughly divided into the following categories based on roller width:
Equipment Model | Effective Coating Width | Typical Applicable Boards
Small Machine | 300mm～600mm | Decorative strips, small door panels, furniture edge strips
Medium Machine | 800mm～1300mm | Furniture door panels, cabinet panels, decorative panels
Large Machine | 1400mm～2200mm | Flooring, wall panels, large decorative panels
Specialized Machine | 2500mm and above | Special-sized building materials or industrial composite panels
Therefore, the suitable board width range for a UV roller coating machine is generally between 300mm and 2200mm, depending on the equipment model and production requirements.
2. Board Length Range
Coating machines do not have fixed length limitations, as long as the conveyor system can transport the material stably.
However, in actual production, a minimum board length of 400mm is recommended to prevent tilting, shaking, or jamming of the board when entering or leaving the roller area.
For long boards (over 2800mm), auxiliary rollers or support frames need to be added to the conveyor line to ensure smooth transport.
3. Board Thickness Compatibility Range
The roller gap of a UV roller coating machine is usually adjustable to accommodate boards of different thicknesses.
Common coating thickness ranges are as follows:
Board Thickness Range | Compatibility Notes
2mm～5mm | Suitable for thin PVC boards, decorative film substrates
6mm～25mm | Suitable for furniture door panels, cabinet panels, MDF boards
26mm～60mm | Suitable for flooring, large decorative panels
>60mm | Requires a special model or adjustment of the roller gap structure
Generally, the standard UV roller coating machine is suitable for thicknesses of 3mm～50mm.
For thicknesses exceeding this range, a customized roller structure or lifting platform is required.
Why do different sizes of boards require different specifications of UV roller coating machines?
1. Roller width determines effective coating area
If the roller width is less than the board width, incomplete edge coating will occur;
If the width is too large, it will increase equipment costs, paint waste, and energy consumption.
Therefore, when selecting a roller, the effective width should be slightly larger than the maximum board width by about 50-100mm to ensure complete edge coverage.
2. Board thickness affects roller gap and pressure setting
UV roller coating machines rely on pressure between the rollers to achieve coating transfer.
If the board is too thin, improper pressure will cause scratches or bounce;
If it is too thick, it cannot pass through the roller gap.
Therefore, the equipment needs to have an adjustable lifting system to accommodate different thicknesses.
3. Board length affects conveying stability
Shorter boards are prone to tilting or rotating when entering the roller, resulting in uneven coating; longer boards, if lacking support, may sag or shift, leading to inconsistent roller coating trajectories.
For boards of different lengths, appropriate conveyor brackets or automatic centering devices should be configured.
What are the requirements for dimensional matching of different types of boards?
1. MDF and Medium-density Fiberboard (MDF)
These boards have uniform thickness and high flatness, making them ideal coating materials for UV roller coating machines.
Recommended size range:
• Thickness: 6mm～25mm
• Width: 600mm～1300mm
• Length: 900mm～2400mm
2. Solid Wood Boards and Finger-Jointed Boards
Solid wood boards are prone to warping, requiring higher pressure and conveying capabilities from the equipment.
It is recommended to choose a UV roller coating machine with automatic pressure adjustment and a floating roller system. The board width should ideally be controlled below 1200mm.
3. Laminate Flooring and SPC Flooring
These boards have high hardness and uniform thickness, typically 6mm～12mm.
Suitable for wide-width (1300mm～1800mm) UV roller coating machines, enabling high-speed continuous coating.
4. Stone-plastic composite panels (PVC panels, PET panels)
Due to the thinness and susceptibility to deformation of these materials, it is recommended to use a machine with adjustable roller pressure and stable conveying. Suitable for thicknesses of 2mm to 8mm and widths of 300mm to 900mm.
5. Large architectural decorative panels
These panels are large (generally exceeding 2000mm in width) and require a custom-made large-scale UV roller coating machine. Roller widths typically exceed 2200mm, and they must be equipped with auxiliary conveying and automatic alignment systems.
How to determine if your panels are suitable for a UV roller coating machine?
1. Check the panel flatness
UV roller coating machines have extremely high requirements for flatness. Uneven surfaces can easily cause missed coatings or scratches.
General requirements:
• Flatness error ≤ ±0.3mm;
• The surface must be free of warped edges, pits, and obvious pinholes.
2. Measure the uniformity of board thickness
The thickness error should not exceed ±0.2mm; otherwise, the coating pressure will not be evenly distributed, resulting in inconsistent coating thickness.
3. Check the edge quality of the board
Burnt or sharp edges may damage the rubber rollers during application. It is recommended to grind and chamfer the edges before coating.
4. Confirm that the board size is within the equipment's allowable range
If the board width or thickness exceeds the equipment specifications, check the technical parameter table to confirm whether the roller gap can be adjusted or parts replaced.
Do not force it onto the machine to avoid damaging the rollers or the conveyor system.
How to adjust the UV roller coating machine according to the board size?
1. Roller gap adjustment
Adjust the distance between the main roller and the conveyor table using the handwheel or automatic control system to accommodate boards of different thicknesses.
After adjustment, perform an impression test to ensure uniform pressure.
2. Speed Matching Adjustment
For small-sized boards, the roller coating speed can be appropriately reduced (3-5 m/min) to ensure stable paint coverage; for large-sized boards, the speed can be increased to 10-15 m/min to improve production efficiency.
3. Squeegee Position and Angle Adjustment
The squeegee angle should be fine-tuned according to the board thickness and paint viscosity, generally controlled between 30° and 45° to ensure a smooth coating without paint buildup.
4. Conveyor System Alignment Adjustment
For wide or long boards, the conveyor belt alignment system should be calibrated to avoid board misalignment and edge coating omissions.
Relationship between Board Size and UV Roller Coating Machine Efficiency
Board size not only affects matching but also directly impacts production efficiency and paint utilization.
Board Size Type | Coating Stability | Coating Utilization | Production Efficiency
Small Boards (<600mm) | Lower stability, requires slow conveying | Slightly higher coating loss | Medium
Medium Boards (800-1300mm) | Optimal matching range | Highest coating utilization | High
Large Boards (>2000mm) | Limited stability, requires customized equipment | Slightly lower coating utilization | Low
Conclusion:
The UV roller coating machine is best suited for coating medium-sized furniture and decorative boards with a width of 800mm-1300mm and a thickness of 6mm-25mm.
Within this range, the highest production stability and best coating quality can be achieved.
Avoiding Problems Caused by Size Mismatch
If the board size exceeds the design range of the UV roller coating machine, the following problems may occur:
• Edge coating omissions or paint buildup;
• Unstable board movement or misalignment;
• Uneven coating thickness;
• Increased roller wear;
• Rubber roller damage or paint peeling.
Therefore, the following must be confirmed before selecting a model:
• Effective coating width of the equipment ≥ maximum board width + 50mm;
• Board thickness is within the equipment's allowable adjustment range;
• The conveyor system can support the length of the board.
