The most common and most efficient equipment in industrial mass production is called a Wood Grain Printing Machine (also known as a wood grain roller printing machine/gravure wood grain printing machine/imitation wood grain printing equipment). It transfers ink to the surface of the workpiece through rollers with wood grain engravings, and can perform single-color, two-color, or even multi-color printing. It is stable, high-speed, and suitable for continuous production.
Besides this, direct inkjet UV flatbed digital printers, heat transfer wood grain equipment, water transfer systems, and laminating/veneer equipment can also create a "wood grain effect" on wood or wood-based substrates, but their principles, applicable scope, and cost structure differ.
The following systematically explains the process principles, typical configurations, how they are matched with a "wood UV dryer," and how to ensure clear and durable patterns for each type of solution.
What exactly is a "Wood Grain Printing Machine"?

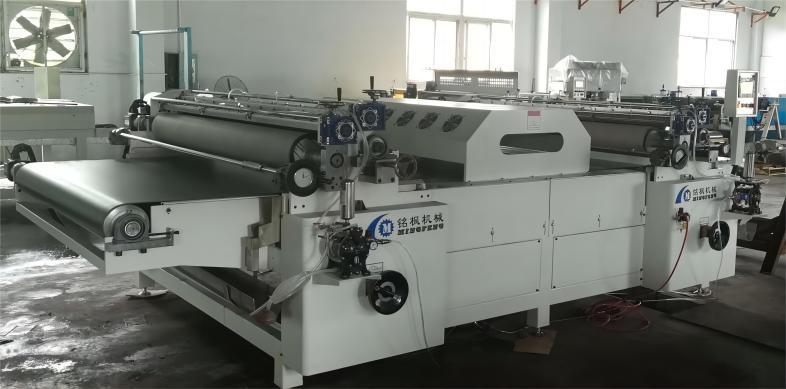

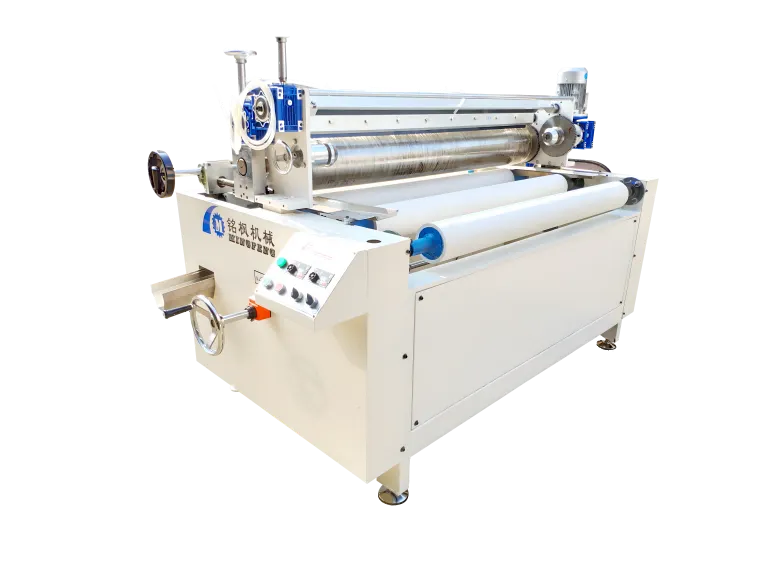

A Wood Grain Printing Machine is essentially a roller transfer printing system for wood or board materials. The most representative structure centers on a gravure-engraved wood grain pattern roller, an inking/scalpel system, and an impression roller. This system evenly distributes ink into the grooves, then transfers it to the workpiece surface under pressure. Multi-color machines connect 2-4 printing units on a single line, each completing one layer of color. Servo drives and a color registration system ensure stable and consistent pattern layers and stitching. To achieve rapid curing and immediate usability, post-printing is often integrated with a wood UV dryer (UV curing section) or a hot air/IR drying section, forming an integrated production line of "roller printing + drying/curing + top cleaning."

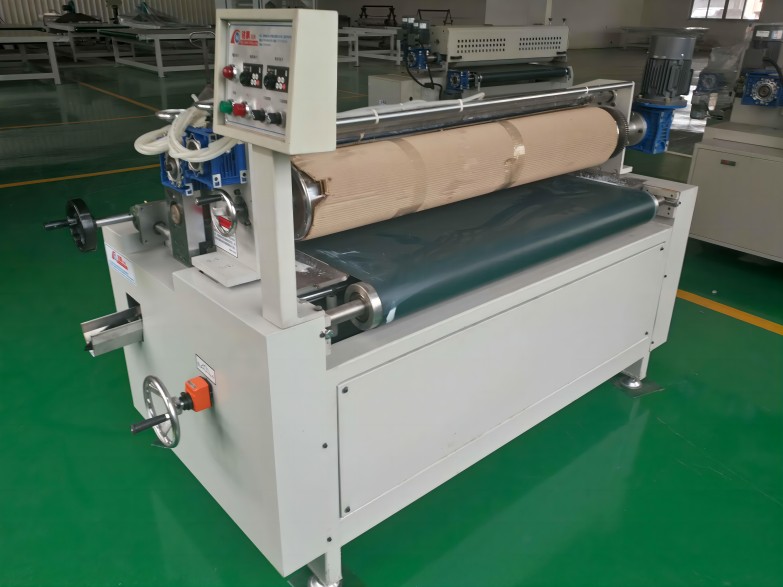

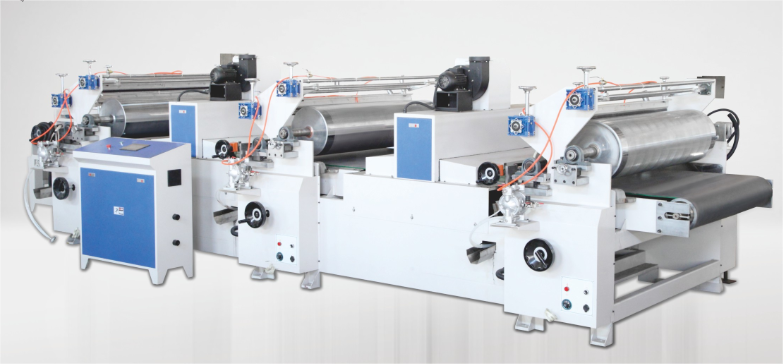

Typical two-color Wood Grain Printing Machine product specifications typically indicate an effective width of approximately 1320 mm, a processable thickness of 2-80 mm, a line speed of 0-20 m/min, servo control, and automatic color registration. These parameters and functions are representative of the industry and are used for 3D wood grain/stone grain printing on various types of boards.
Why is the Wood Grain Printing Machine the "first choice"?
Because it possesses:
• High consistency: Roller texture is solid engraving, ensuring batch stability;
• High throughput: Continuous board feeding, adjustable line speed, high efficiency with minimal human intervention;
• Multi-color gradation: One machine can perform multiple color applications, with controllable gradations of light and dark areas, growth rings, and knots;
• Easy integration with UV curing lines: Can be integrated with wood UV dryers, achieving second-level curing and allowing boards to proceed directly to the next process.
Besides the "Wood Grain Printing Machine," what other machines can create wood grain patterns?
To achieve a wood grain appearance on wood (or wood-based materials), there are five main types of equipment in the industry. They can all "create wood grain," but the differences lie in: size compatibility, throughput, cost, durability, and process chain compatibility.
1) Wood Grain Printing Machine (Roller/Gravure Printing)
• Applicable to: Flat or near-flat workpieces such as MDF/particleboard/plywood/solid wood panels, door panels, and flooring blanks.
• Process Features: Roller engraving + ink supply/squeegee + printing; multi-color overprinting; post-printing connection to wood UV dryer or hot air/IR; optional top coat.
• Advantages: Low unit cost, high speed, stable pattern layering, perfectly compatible with UV curing.
• Limitations: Not suitable for curved surfaces/irregular deep recesses; changing patterns requires changing the printing plate (replacing the roller).
2) UV Flatbed Digital Printer (UV inkjet)
• Applicable Objects: Single-item multi-product printing, personalized patterns, including 3D parts but with a surface that can be positioned.
• Principle: The printhead directly sprays UV ink droplets onto the surface, which is instantly cured by a wood UV dryer or internal UV lamp.
• Advantages: No printing plate required, patterns can be changed at any time; supports local whitening and varnishing.
• Limitations: Printing speed is relatively slower than roller printing; to achieve the same wear resistance as flooring/countertops, a clear varnish or top coat is often required and strictly cured.
3) Wood Grain Heat Transfer Equipment (including roller heat transfer/vacuum heat transfer)
• Applicable Materials: Aluminum profiles, metal components, PVC/ABS components, and wooden parts; suitable for strip or irregularly shaped parts.
• Principle: The wood grain transfer film is transferred to the workpiece surface under heat and pressure.
• Advantages: Good shape adaptability, clear patterns, and a rich film library.
• Limitations: Relatively complex consumable costs and process; requires subsequent clear varnish protection to improve wear resistance.
4) Hydrographics
• Applicable Materials: Handles, engraved parts, and three-dimensional irregularly shaped parts.
• Principle: Wood grain film is laid on a water surface → activation → object is immersed → pattern is applied → cleaning and drying → clear varnish sealing.
• Advantages: Strong three-dimensional coating capability, can cover complex curved surfaces.
• Limitations: Higher efficiency and environmental protection requirements; less economical than roller printing for mass production of flat parts.
5) Lamination/Veining Hot Press (Not a "printing machine," but capable of creating wood grain appearance)
• Target: Panel furniture boards, countertops.
• Methods: Melamine-impregnated paper hot pressing, PVC wood grain film lamination, etc.—essentially a veneer, not on-site printing; can be integrated with the surface coating curing section of a wood UV dryer as a curing solution to protect the clear coat layer.
—For mass production of flatbeds, prioritizing ultimate cost and consistency, prioritize the Wood Grain Printing Machine; for flexible patterns and small-batch personalization, UV flatbed digital printing is more suitable; for complex curved surfaces, use heat transfer/water transfer printing; if decorative paper/film is selected from the substrate procurement stage, that falls under the veneer process chain.
Working Principle and Components of the Wood Grain Printing Machine
1. Printing Unit (Core Three-Piece Set)
• Gravure Wood Grain Roller: Wood grain grooves are electro-engraved/laser-engraved on a steel/copper roller, determining the pattern detail and layering.
• Ink Supply/Scraper System: The anilox roller/ink trough delivers ink into the grooves, and the scraper removes excess ink from the roller surface, leaving only the ink layer in the grooves.
• Impression Roller: Forms an impression zone with the wood grain roller, "releasing" the ink from the grooves onto the workpiece surface.
2. Material Feeding and Drive
• The servo motor-driven conveyor is synchronously controlled with the printing rollers to reduce speed errors; photoelectric/encoder ensures color registration, suppressing color mixing and pattern drift caused by stretching/slippage.
3. Drying/Curing
• Solvent-based or water-based inks → hot air/IR drying;
• UV-cured inks → inline wood UV dryer; the UV segment uses irradiance (mW/cm²) and dosage (J/cm²) as control indicators to achieve second-level curing and lock in pattern clarity and wear resistance.
4. Typical Specifications (Industry Representative Range)
• Effective width commonly 600–1320 mm;
• Line speed typically 5–20 m/min (depending on formulation/pattern/ink layer);
• Two-color/three-color/four-color options available, with automatic color matching and tension control, improving multi-color fidelity and repeatability.
Many two-color Wood Grain Printing Machine websites emphasize features such as servo control, automatic color matching, compatibility with various board types, effective width close to 1320 mm, and line speed 0–20 m/min, reflecting the current mainstream machine configuration baseline. (xmfjxcoating.com)
What is the complete "Roller Printing Wood Grain" process flow?
Taking "Flat Two-Color Wood Grain" as an example:
• Substrate pretreatment: Stable moisture content (commonly 8–12%), sanding and thickness setting, fine grinding to 180–320 grit, thorough dust removal.
• Base Seal and Base Color: Seal with primer/base coat, bake or UV cure, light sanding if necessary; apply background base color (determines the wood grain "base tone").
• First Color Roller Printing: Install the first color wood grain roller, set pressure, ink viscosity, doctor blade angle, and feed speed; observe details and coverage online.
• Intermediate Curing: If using UV ink, quickly cure in a wood UV dryer to prevent "smudging" of the second color.
• Second Color Roller Printing: Apply layering colors such as "annual rings/shades/knots"; use a color matching system to avoid "misprinting/overlapping".
• Final Curing and Top Cleaning: UV final curing → apply UV varnish or abrasion-resistant varnish (roller coating/spraying) → cure in a wood UV dryer.
• Inspection and Finishing: Packaging after passing appearance, color difference, hardness/solvent resistance/adhesion tests.
"What kind of machine can print wood grain onto wood?"
From an industrial practice perspective, a Wood Grain Printing Machine is the first choice for efficiently, cost-effectively, and consistently printing wood grain onto wood or engineered wood. It uses gravure rollers and color matching to achieve layering, and then completes rapid curing via a wood UV dryer or hot air/IR, forming a stable production line.
If you require flexible patterns or single-piece customization, a UV flatbed digital printer is an option. For three-dimensional/irregularly shaped components, heat transfer or water transfer printing is more suitable. If your strategy is primarily veneer printing, then use lamination/veneer solutions to obtain the wood grain, and then use a UV topcoat to enhance durability.
As a category reference, "two-color Wood Grain Printing Machines" on the market typically offer a width of approximately 1.3 m, a line speed of 0–20 m/min, servo and automatic color matching capabilities, and are compatible with mainstream sizes of panel furniture and door panels. These publicly available specifications can help you quickly align your needs with the appropriate equipment level.
