In the surface treatment industry, the coating process is a crucial step, directly determining a material's surface properties, durability, and aesthetics. Among various coating methods, UV curtain coating machines, due to their unique liquid curtain principle and UV curing technology, have gradually become an indispensable key piece of equipment in industrial production.
Compared to traditional coating processes, UV curtain coating machines not only ensure highly uniform coatings but also significantly improve production efficiency and environmental performance.
This article will focus on the topic of "What is a UV curtain coating machine?", systematically explaining its definition, operating principles, and other aspects, fully revealing the professional value of this equipment.

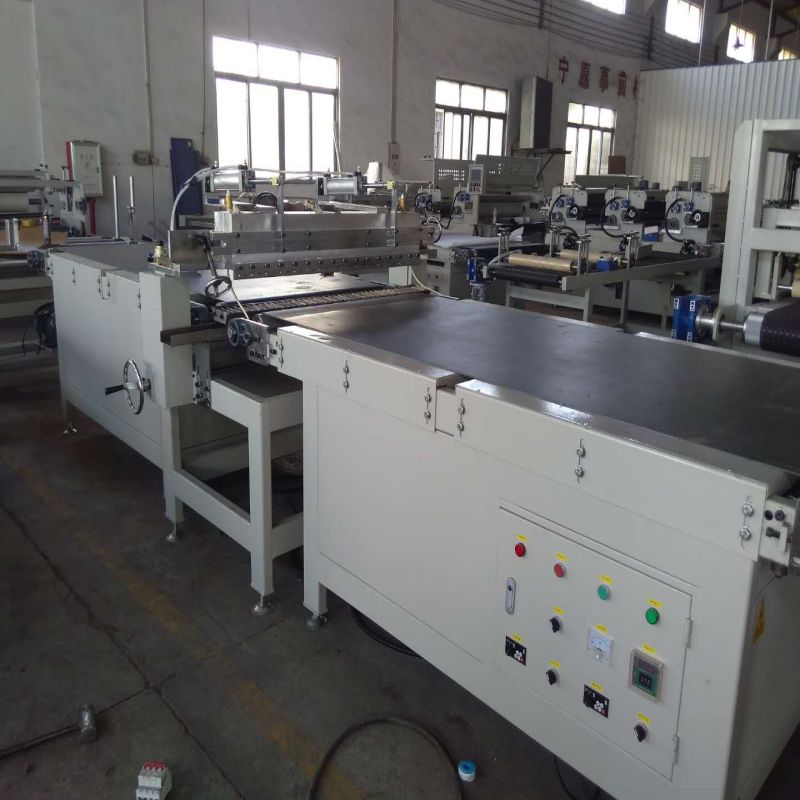

UV curtain coating machine: What is it?
A UV curtain coating machine is a specialized device that coats substrates by forming a "flowing curtain" of liquid coating, which is then moved through the curtain by a conveyor system. Unlike traditional roller coating or spray coating methods, it relies on the gravity and fluid dynamics of the liquid coating to evenly deposit the coating on the substrate surface, resulting in a smooth, even coating with controllable thickness.
Key Points:
• The "curtain": This is its most distinctive feature—after passing through the overflow trough, the paint continuously flows down, resembling a transparent liquid curtain.
• Paint Type: Primarily UV-curable paint, which contains a photoinitiator that allows it to instantly polymerize and cure under UV light.
• Coating Results: This ensures coating uniformity while improving production efficiency and avoiding the waste and instability common in traditional processes.
Thus, a UV curtain coating machine can be simply understood as a highly efficient device that utilizes a liquid curtain and UV curing technology to achieve continuous and uniform surface coating.
UV Curtain Coating Machine: Do You Know How It Works?
To truly understand a UV curtain coating machine, you must break down its workings. The entire process consists of three key steps: the paint forms a liquid curtain, the substrate passes through the coating area, and UV curing sets the substrate.
1. Paint Forms a Liquid Curtain
• The paint is pumped from the storage tank into the overflow trough.
• The overflow trough is precisely machined, with the outlet width and angle carefully designed to ensure uniform paint flow.
• Under the action of gravity, the paint forms a continuous, smooth liquid curtain.
• The curtain thickness can be adjusted by controlling the pump speed, flow rate, and paint viscosity.
2. Substrate Passes Through the Coating Zone
• A conveyor precisely delivers the substrate to be coated beneath the liquid curtain.
• When the substrate surface contacts the liquid curtain, the paint automatically spreads, forming an even coating.
• The coating process is contactless, eliminating damage to the substrate surface caused by mechanical friction.
3. UV Curing
• The coated substrate then enters the UV curing unit.
• High-intensity UV light activates the photoinitiator in the paint, initiating a molecular chain polymerization reaction.
• The coating hardens in a very short time, forming a dense and wear-resistant surface.
This process achieves an integrated "coating + curing" operation, significantly improving production efficiency.
UV Curtain Coating Machine: Structure and Functional Extensions
A complete UV curtain coating machine consists of multiple precision modules. Each component performs its own function, working together to ensure coating quality.
1. Paint Supply System
• Storage Tank: Stores UV paint and is typically sealed to prevent dust and air from entering.
• Circulation Pump: Maintains continuous paint flow within the system to prevent sedimentation or viscosity changes.
• Filter: Removes impurities, ensuring a pure, particle-free liquid curtain.

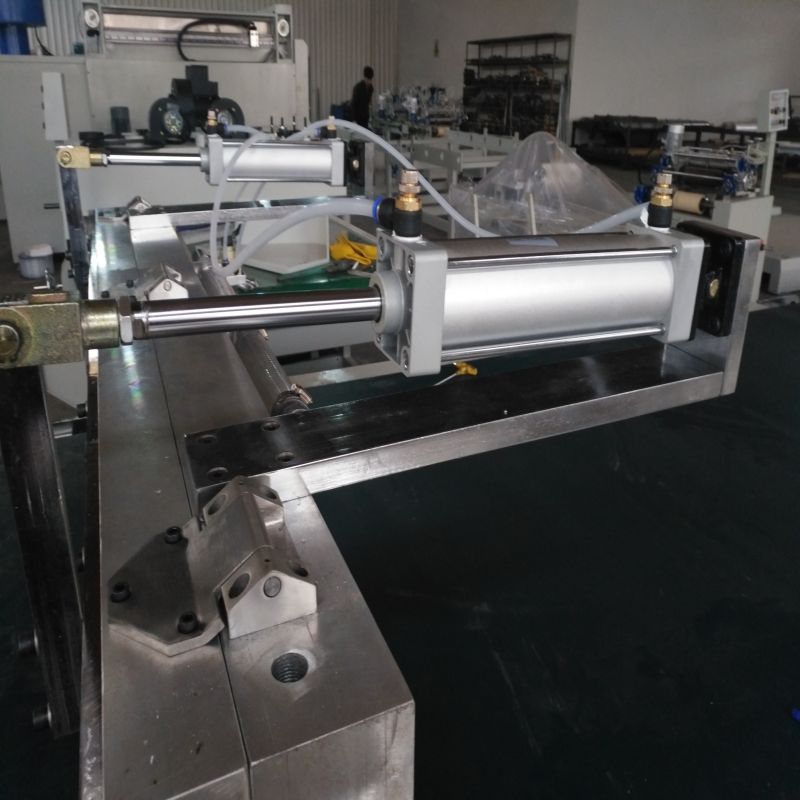

2. Curtain Head
• The overflow head is the "heart" of the entire machine.
• Its design precision directly determines the uniformity and stability of the liquid curtain.
• High-end overflow heads can control the outlet angle and flow rate using fine-tuning mechanisms.

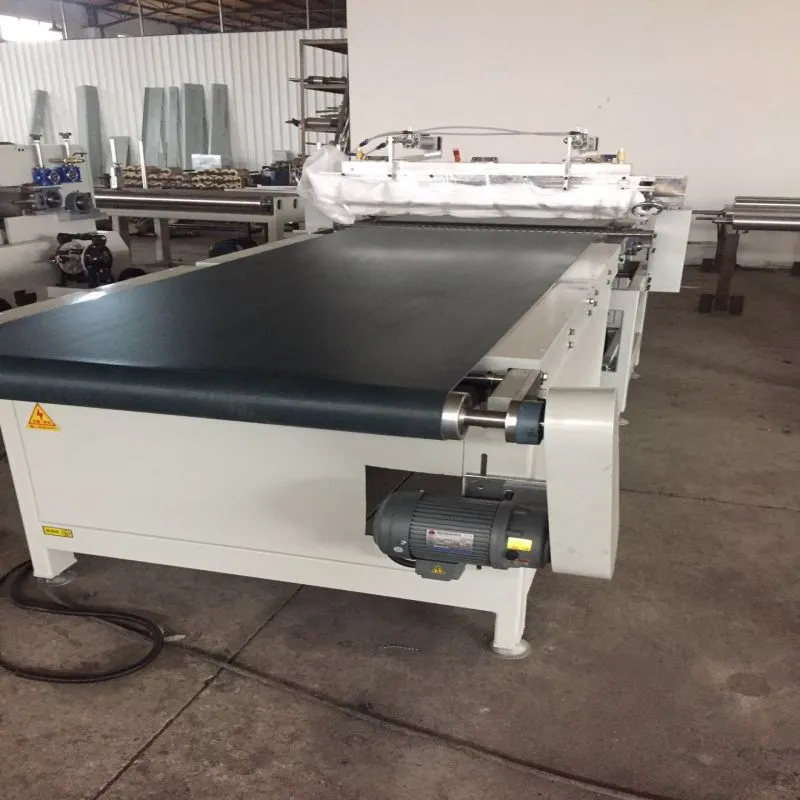

3. Conveyor
• Utilizes a wear-resistant conveyor belt or chain drive structure.
• Equipped with a frequency converter, the speed can be adjusted to meet specific production needs.
• To prevent deviation, an automatic correction system is often included.
4. Coating Curtain Area
• This is the critical area where coating takes place.
• It must maintain a constant temperature and be clean to prevent air disturbances that could affect curtain stability.
• Some high-end models are equipped with a curtain cover to prevent interference from external airflow.
5. UV Curing System
• Traditionally, mercury lamps were used, but are now gradually transitioning to LED-UV lamps.
• Curing power is adjustable to accommodate coatings of varying thicknesses.
• Some models also feature a cooling system to prevent high temperatures from damaging the substrate.
6. Control and Monitoring System
• Integrated PLC control and touchscreen interface.
• Real-time monitoring of coating thickness, flow rate, speed, and other parameters is possible.
• High-end models even feature automatic feedback adjustment for closed-loop control.
UV Curtain Coating Machine: Operation Procedures and Precautions
The operation of a UV curtain coating machine includes four stages: preparation, commissioning, operation, and finalization.
1. Equipment Preparation
• Check that the paint storage tank is fully charged and that the paint viscosity is within acceptable limits.
• Ensure the overflow trough is clean and free of residue.
• Set the conveyor speed and UV lamp power.
2. Coating Commissioning
• Start the circulation pump to ensure a continuous, seamless liquid curtain.
• Adjust the overflow trough outlet to ensure a uniform curtain thickness.
• Perform a trial coating with scrap material to test the coating effect.
3. Official Operation
• Steadily convey the substrate to the coating area.
• Monitor the coating thickness and surface quality in real time.
• Immediately proceed to the UV curing area after coating to avoid dust contamination.
4. Finishing and Maintenance
• After the operation, clean the overflow trough promptly to prevent the coating from drying out.
• Check the pump circuit and filter, and regularly replace vulnerable parts.
• UV lamps have a limited lifespan, so the energy output needs to be regularly tested.
What are the applications of UV curtain coating machines?
UV curtain coating machines have a wide range of applications, covering nearly all industries requiring a uniform surface coating.
1. Woodworking Industry
• Floor coatings: Enhance wear resistance and moisture resistance.
• Furniture panels: Provide high-gloss decorative effects.
2. Plastics Industry
• Plastic films: Used for packaging and functional coatings.
• Plastic sheets: Enhance scratch resistance.
3. Metalworking Industry
• Metal sheets: Provide corrosion protection.
• Aluminum profiles: Enhance exterior gloss.
4. Glass Industry
• Architectural glass: Increase scratch and stain resistance.
• Decorative glass: Provide special optical effects.
5. Paper and Packaging Industry
• High-end wrapping paper: Increase visual brightness and protective properties.
• Commercial printing: Enhance product quality.
UV curtain coating machine: What are its advantages?
Compared to other coating methods, UV curtain coating machines offer unique advantages in multiple dimensions.
1. Coating uniformity
• The curtain coating method avoids the streaking problems of roller coating and the uneven atomization of spray coating.
• Coating thickness can be stably maintained at the micron level.
2. Efficient Curing
• UV curing is almost instantaneous, significantly reducing process time.
• Lower energy consumption compared to thermal curing methods.
3. Environmentally Friendly
• UV coatings are solvent-free and have extremely low VOC emissions.
• Comply with green manufacturing requirements.
4. Paint Conservation
• Paint deposition rates approach 100%, resulting in virtually no waste.
• Paint can be recycled, reducing costs.
5. Wide Range of Applications
• The contactless coating method is suitable for fragile, smooth, or high-value substrates.
Comparison of UV curtain coating machines with other coating methods
Comparison Objects | Roller Coater | Sprayer | Dip coating | UV curtain coating machine |
| Coating Uniformity | Affected by roller pressure | Prone to uneven splattering | Difficult to control | Extremely high |
| Coating Utilization | Medium | Low-cost | Relatively low | Nearly 100% |
| Substrate Compatibility | Surface requires a smooth surface | Fewer substrate restrictions | Suitable for small parts | Suitable for large areas |
| Curing Method | Hot air/natural | Hot air/UV | Hot air | Instant UV curing |
| Environmental Performance | Medium | High VOC spray | Paint waste | Extremely low VOC |
This comparison demonstrates that UV curtain coating machines offer advantages in efficiency, environmental friendliness, and coating uniformity, making them highly valuable for use in modern production lines.
