In modern industrial manufacturing, powder coating lines have become one of the most important pieces of equipment for metal surface treatment. With increasingly stringent environmental requirements and continuous optimization of coating efficiency, more and more manufacturing companies are adopting powder coating technology and building complete powder coating lines to improve product quality and production efficiency.
So, what is a powder coating line? What is its working principle? What equipment does it consist of? Why do companies use powder coating lines?
This article will systematically analyze the definition, structural components, workflow, and technical characteristics of a powder coating line from a professional perspective, helping readers gain a comprehensive understanding of this industrial equipment system.
What is a Powder Coating Line?
A powder coating line is a complete automated or semi-automated equipment system used to complete the powder coating process. This line uses a series of continuous processes to uniformly spray powder coating onto the surface of a workpiece, and then heat-cures it to form a dense coating, thereby achieving multiple functions such as corrosion protection, decoration, and wear resistance.
In industrial production, powder coating production lines typically consist of the following processes:
1. Pretreatment
2. Drying
3. Powder coating
4. Curing
5. Cooling
6. Conveying and control system
Unlike traditional liquid painting, powder coating uses solid powder coatings that adhere to the workpiece surface via electrostatic adsorption, followed by high-temperature curing to form a uniform coating film. Therefore, powder coating production lines offer significant advantages in environmental friendliness, coating thickness control, and material utilization.
In actual production, powder coating production lines are widely used in the following industries:
• Home appliance manufacturing
• Automotive parts
• Building profiles
• Metal furniture
• Construction machinery
• Hardware products
Through systematic equipment configuration, powder coating production lines can achieve high-efficiency, high-consistency mass production.
What is the basic working principle of a powder coating production line?
Powder coating technology primarily relies on the principle of electrostatic spraying to complete the coating process. The core principle of the entire powder coating production line can be divided into three key steps:
1. Electrostatic Adsorption
During the spraying stage, the spray gun imparts a high-voltage electrostatic charge to the powder coating. When the charged powder is ejected from the spray gun, it is attracted to the grounded workpiece and adheres to its surface.
This electrostatic adsorption mechanism allows the powder to uniformly cover the surface of workpieces with complex structures, thus ensuring coating quality.
2. Powder Deposition
Once the powder is adsorbed onto the workpiece surface, a uniform powder film is formed. Due to electrostatic effects, there is a certain repulsive force between the powder particles, thus avoiding uneven coating accumulation.
In a complete powder coating production line, this step is typically completed using an automated spray gun system and powder spraying booth equipment.
3. High-Temperature Curing
After spraying, the workpiece enters the curing oven. In a high-temperature environment of 180℃–220℃, the powder coating begins to melt, level, and undergo a chemical reaction, ultimately forming a dense, cured coating.
The cured coating has the following characteristics:
• High adhesion
• Good corrosion resistance
• Uniform and smooth surface finish
Therefore, a complete powder coating production line is not just spraying equipment, but a system engineering project encompassing multiple process steps.
What equipment makes up a complete powder coating production line?
An industrial-grade powder coating production line typically consists of multiple functional pieces of equipment, each responsible for a different process step. Common equipment includes the following components:
1. Pretreatment Equipment
Pretreatment is a crucial step in a powder coating production line. Its main function is to remove impurities such as oil, dust, and oxide layers from the workpiece surface, thereby improving coating adhesion.
Common pretreatment methods include:
• Degreasing
• Water washing
• Acid pickling
• Surface phosphating
• Passivation treatment
Pretreatment equipment typically uses a spray-type pretreatment system, completing different chemical treatment steps through multi-tank spraying.
In the entire powder coating production line, the quality of pretreatment directly affects the coating durability.
2. Drying Oven
After pretreatment, residual moisture remains on the workpiece surface, necessitating drying in an oven.
The functions of the drying oven include:
• Removing moisture
• Preventing spraying defects
• Improving powder adhesion
Drying equipment typically employs a hot air circulation structure to ensure the workpiece is in a suitable state for spraying before entering the powder coating booth.

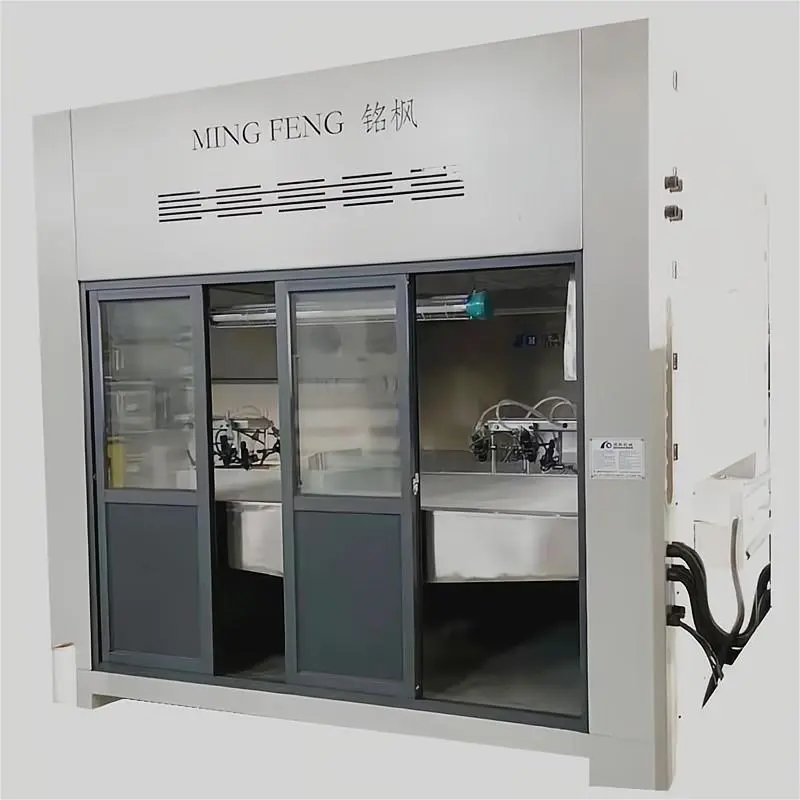

3. Powder Coating Booth System
The powder coating booth is one of the core pieces of equipment in a powder coating production line.
The powder coating booth mainly consists of the following components:
• Automatic spray gun system
• Manual touch-up spray station
• Powder recovery system
• Filtration device
The automatic spray gun uses electrostatic spraying to evenly spray powder onto the workpiece surface, while any unadhered powder is recycled through the recovery system, thereby improving powder utilization.
Modern powder coating production lines are typically equipped with automated spray control systems that automatically adjust the spray gun angle and powder output based on the workpiece shape.
4. Powder Recovery System
During the spraying process, not all powder adheres to the workpiece surface; therefore, a powder recovery system is required.
Powder recovery systems typically employ:
• Cyclone separators
• Cartridge filters
These devices recover unused powder and reintroduce it into the coating system, thereby improving powder utilization.
In high-efficiency powder coating production lines, powder utilization can reach over 95%.
5. Curing Oven
The curing oven is one of the key pieces of equipment in a powder coating production line. Its function is to melt the powder coating and complete the curing reaction.
Common types of curing ovens include:
• Gas-fired curing ovens
• Electric heating curing ovens
• Fuel-fired curing ovens
The curing process is typically controlled at:
• Temperature: 180℃—220℃
• Time: 10—20 minutes
Through a precise temperature control system, the curing oven ensures stable coating quality.
6. Conveying System
The conveying system is a crucial component connecting all the equipment in the entire powder coating production line.
Common conveying systems include:
• Suspended conveyor chains
• Ground conveyor systems
• Automated transfer devices
The conveying system not only transports workpieces but also controls the production cycle, enabling continuous production across the entire powder coating production line.
7. Control System
Modern powder coating production lines are typically equipped with PLC control systems for automated equipment control.
The control system manages:
• Conveyor speed
• Spray gun parameters
• Oven temperature control
• Production cycle
Automatic control systems significantly improve production stability.
What is the complete process flow of a powder coating production line?
A standard powder coating production line typically operates according to a fixed process flow. A typical flow is as follows:
1. Workpiece loading
2. Pre-treatment cleaning
3. Surface treatment (phosphating, etc.)
4. Washing
5. Drying
6. Powder coating
7. Curing
8. Cooling
9. Unloading and inspection
The entire process is connected by a conveying system, forming a continuous production mode.
This structure enables powder coating production lines to achieve high-efficiency, high-volume production.
Why are powder coating production lines needed in industrial manufacturing?
Many manufacturing companies choose to build powder coating production lines primarily because powder coating technology offers significant process advantages.
1. Increased Production Efficiency
Automated powder coating production lines enable continuous production, significantly reducing manual labor and increasing production efficiency.
2. Improved Coating Quality
Because electrostatic spraying technology can evenly cover the workpiece surface, the coating thickness is more stable.
3. Reduced Material Waste
Powder coatings can be recycled and reused, significantly improving material utilization.
4. Adaptability to Large-Scale Production
For manufacturing industries requiring mass production, powder coating production lines provide a stable and reliable coating solution.
Powder coating production line VS. Traditional spray painting production line: What are the differences?
Although both technologies are used for surface coating, powder coating production lines differ from liquid spray painting production lines in several aspects.
1. Different Coating Forms
Powder coating production lines use solid powder coatings, while traditional spray painting uses liquid coatings.
2. Different Process Structures
Powder coating production lines require a curing oven to melt the powder, while liquid painting typically requires a solvent evaporation process.
3. Different Material Utilization Rates
Powder coating production lines can recycle unused powder, while liquid painting results in more waste.
Which Products are Suitable for Powder Coating Production Lines?
Because powder coating technology is applicable to metal materials, powder coating production lines are widely used in a variety of industrial products, including:
• Metal Furniture
• Aluminum Profiles
• Appliance Housings
• Automotive Parts
• Building Materials
• Industrial Equipment Housings
These products typically require high-quality surface coatings, making powder coating production lines essential manufacturing equipment.
What is the Role of Powder Coating Production Lines in Industrial Production?
From the perspective of the overall manufacturing process, powder coating production lines are not only surface treatment equipment but also a crucial link in product quality control.
The main functions of powder coating production lines include:
• Improving product corrosion resistance
• Improving product appearance quality
• Extending product lifespan
• Increasing production efficiency
Therefore, in modern manufacturing, powder coating production lines have become an indispensable piece of industrial equipment.
In summary, a powder coating line is a complete industrial equipment system used to complete the powder coating process. It involves multiple stages, including pretreatment, spraying, and curing, to uniformly cover the workpiece surface with powder coating material, forming a high-quality coating.
A complete powder coating line typically includes:
• Pretreatment equipment
• Drying oven
• Powder spraying booth
• Powder recovery system
• Curing oven
• Conveying system
• Automatic control system
Through the coordinated operation of these devices, the powder coating line achieves stable and efficient industrial coating production.
For manufacturing industries requiring high-quality surface treatment, building and using powder coating lines is an important means to improve production efficiency and product quality.
