Is an MDF UV curtain coating machine suitable for thick or thin coating?

In the furniture manufacturing, decorative panel processing, and building materials industries, MDF (medium-density fiberboard) is one of the most common substrates. Its smooth surface and strong adhesion make it ideal for UV coating. Among the various UV coating methods, the curtain coating machine (Curtain Coater) has become the mainstream equipment for MDF surface treatment due to its advantages such as uniform coating, high paint utilization, and stable efficiency.

However, many companies raise a core question when purchasing equipment or optimizing processes:

👉 "Is an MDF UV curtain coating machine more suitable for thick or thin coating?" This article will provide an in-depth analysis from multiple dimensions, including the working principle of the curtain coating machine, coating fluid characteristics, UV system characteristics, and the application requirements for thick and thin coatings, to systematically answer this question.

What is an MDF UV curtain coating machine? What is its basic principle?

An MDF UV curtain coating machine is a non-contact coating device that uses gravity to form a liquid curtain, uniformly covering the surface of an MDF board with UV paint.

Its main components include:

• Paint supply system: Composed of a storage tank, constant pressure pump, filter, and piping, it provides a stable UV coating flow rate;

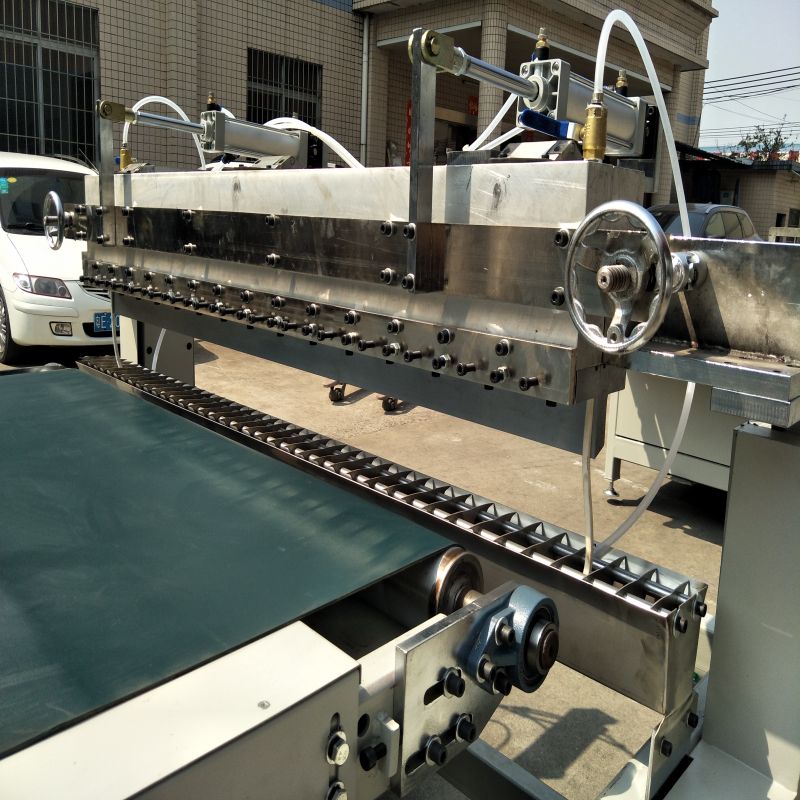

• Curtain Head: A key structure where paint overflows from the head to form a stable curtain;

• Recovery system: Paint that does not fall onto the substrate is collected and recycled;

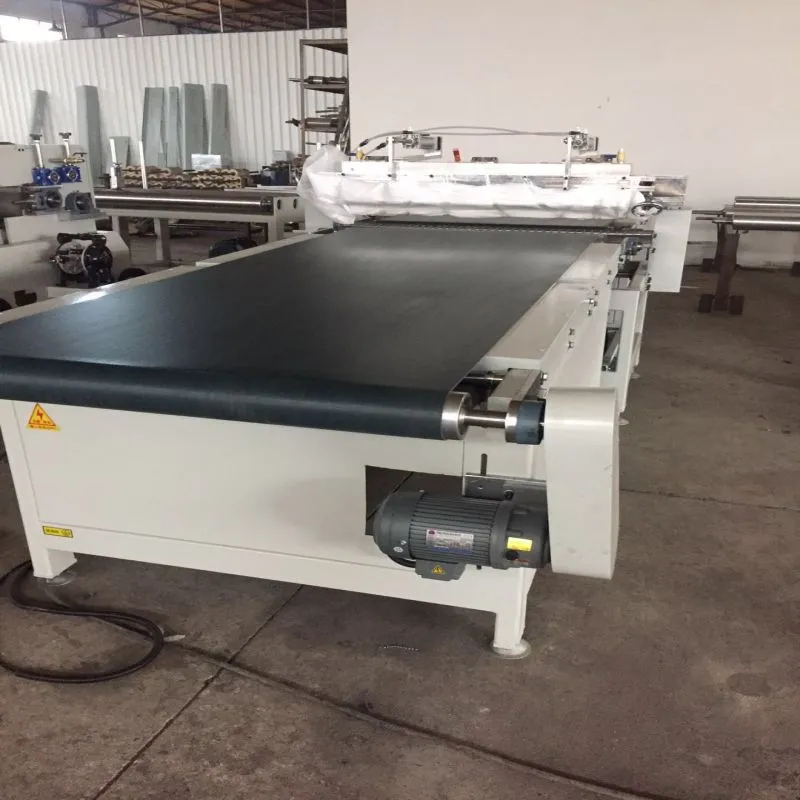

• Conveying system: The MDF board passes through the curtain at a constant speed;

• UV curing unit: Completes coating curing, forming a hard, glossy surface.

The coating process can be summarized as:

Stable curtain formation → Substrate passage → Surface completely covered → Excess paint returned → UV lamp curing.

Because the entire process involves continuous liquid flow coverage, independent of rollers or nozzles, the curtain coating machine achieves extremely high coating smoothness and thickness control precision, making it an ideal choice for achieving high-gloss, high-saturation surfaces.

Curtain Coating Machine Coating Characteristics: The Physical Basis of Thick and Thin Coatings

To determine whether an MDF UV curtain coating machine is more suitable for thick or thin coatings, it's essential to understand the fluid characteristics of "curtain coating."

The film thickness formed by a curtain coating machine is primarily determined by the following formula:

Coating Thickness H ≈ (Flow Rate Q / Conveyor Speed V) × Coverage Coefficient K

Where:

• Q = Flow rate per unit width (L/min·cm);

• V = Workpiece conveyor speed (m/min);

• K = Coating spreading and recovery balance coefficient.

This formula shows that adjusting the coating thickness mainly relies on the balance between flow rate, viscosity, and conveyor speed.

This means that a curtain coating machine can achieve both thick and thin coatings, provided the parameters are set correctly.

However, the process control methods and coating characteristics required for different thickness requirements are completely different.

Is a curtain coating machine more suitable for thick or thin coatings?

✅ Curtain coating machines are naturally more suitable for "thick coating" processes.

The advantage of a curtain coating machine lies in the coverage characteristics of a liquid curtain.

Because liquids possess self-balancing flow properties and the coating completely covers the surface without the need for mechanical scraping, a smooth and uniform gloss can be maintained even when a thicker paint layer is required.

Its advantages in thick coating are mainly reflected in:

• Strong fluid deposition capacity: The liquid curtain can form a high-volume paint film without sagging;

• Non-contact coating: Avoids roller marks or knife marks in thick film applications;

• High paint utilization rate: Excess paint can be completely recycled, preventing waste due to thick coating;

• Suitable for high-solids UV systems: UV paint cures quickly, is not prone to flow, and can stably maintain film thickness.

Therefore, from the perspective of fluid dynamics and the characteristics of UV systems, curtain coating machines perform better in thick coating processes for MDF boards.

Can curtain coating machines perform thin coating?

While curtain coating machines excel in thick coating, under certain process conditions, they can also achieve high-precision thin coating.

The key lies in the precise control of the following parameters:

• Reduce flow rate: Control the curtain thickness by adjusting the pump speed and overflow port opening;

• Increase conveyor speed: Higher workpiece throughput reduces the amount of coating deposited per unit area;

• Adjust viscosity: Use low-viscosity UV paint to make the liquid curtain thinner and more uniform;

• Optimize curtain height: Reduce liquid potential energy and decrease coating weight.

Generally, curtain coating machines can achieve the following coating thickness range:

Therefore, curtain coating machines can perform both thick and thin coatings, but their structural characteristics and UV system determine their greater stability and advantages in thick coating scenarios.

What are the advantages of MDF UV curtain coating machines in thick coating processes?

1. High film smoothness

Thick coatings are prone to sagging or uneven accumulation, but the liquid curtain of a curtain coating machine, through the balance of gravity and surface tension, can automatically spread to form a smooth coating without mechanical scraping.

2. Full and Glossy Coating Film

The high curing rate of the UV system allows thick films to solidify in a short time, creating a mirror-like effect.

The continuous flow structure of the curtain coating machine ensures consistent coating gloss, making it particularly suitable for high-gloss furniture panel production.

3. High Coating Utilization

Traditional roller coating machines often waste a lot of coating material during thick coating, while the curtain coating machine's recirculation system can recycle excess coating, achieving a utilization rate exceeding 90%.

4. Strong Process Stability

Thick coating requires maintaining continuous flow. The curtain coating machine uses a constant pressure pump and temperature control system to ensure constant curtain thickness and flow rate, reducing fluctuations.

What should be noted when using an MDF UV curtain coating machine for thin coating?

Although curtain coating machines can achieve thin coatings, achieving ideal uniformity requires strict parameter control. The following points should be noted:

• High viscosity can cause curtain breakage: For thin coatings, choose low-viscosity UV paint, ideally controlled between 20-40 seconds (Ford Cup 4);

• Slow conveyor speed can lead to excessive thickness: Increase the speed to 12-20 m/min to reduce paint coverage;

• Curtain height should be controlled within 100-150 mm to avoid excessive potential energy leading to localized buildup;

• Stable flow rate regulation is necessary: This can be controlled using a variable frequency pump to prevent flow fluctuations during thin coating;

• Matched UV curing energy is required: Over-curing of thin coatings can affect adhesion; UV lamp power should be appropriately reduced.

With these key points in mind, curtain coating machines can still exhibit extremely high precision and uniformity in thin coating scenarios.

Performance Comparison Analysis of Curtain Coating Machines for Thick and Thin Coatings

The comparison shows that curtain coating machines perform more stably under thick coating conditions, maintaining continuous coating, uniform gloss, and consistent thickness. While thin coatings are achievable, operating parameters require stricter control.

What are the main factors affecting the coating thickness of an MDF UV curtain coating machine?

1. Coating Flow Rate (Q)

A higher flow rate results in a thicker coating. Flow rate should be controlled using a precision pump to avoid pressure fluctuations.

2. Conveyor Speed (V)

A faster speed results in a shorter coverage time per unit area, leading to a thinner coating.

3. Coating Viscosity

High viscosity increases curtain thickness; for thin coatings, viscosity should be reduced to a suitable range.

4. Curtain Height

Increasing curtain height enhances liquid potential energy, making it easier to form a thick film; reducing the height allows for thin film control.

5. Substrate Absorption

If the MDF surface has strong absorption, the actual film thickness will be slightly thinner; a pre-sealed substrate or priming treatment is necessary.

By controlling these parameters, the curtain coating machine can freely switch between thick and thin coatings, achieving controllable film thickness distribution.

Can an MDF UV curtain coating machine achieve a thick film in a single coating pass?

Yes. Provided the paint viscosity and curing energy are matched, a coating thickness of over 100μm can be formed in a single application.

Will thick coatings cause bubbles or sagging?

No. Curtain coating machines use gravity flow, resulting in stable paint coverage. Furthermore, UV paints cure quickly, minimizing sagging.

How to prevent curtain breakage when applying a thin coating?

Maintain a stable liquid level, control the curtain height, and use a low-viscosity paint to ensure continuity.

Is the gloss uniform after a thick coating?

Very uniform. The paint film formed by a curtain coating machine is smooth, with a consistent gloss and no color difference after curing.

Can the thickness be quickly changed by adjusting the pump speed?

Yes. Most curtain coating machines use a variable frequency constant pressure pump system, allowing for rapid flow switching to achieve different film thicknesses.
