In modern industrial coating equipment, UV Roller Coating Machines are widely used in surface treatment processes for wood, plastics, paper, and metal sheets due to their high efficiency, environmental friendliness, and excellent coating uniformity.
One of the most frequently asked questions by users is: "Is a UV Roller Coating Machine easy to maintain or clean?"
This article will systematically explain this from multiple perspectives, including structural features, maintenance cycles, cleaning points, and operating procedures, to help users gain a more comprehensive understanding of the maintenance characteristics of this type of equipment.
What is a UV Roller Coating Machine? What are its basic structures?

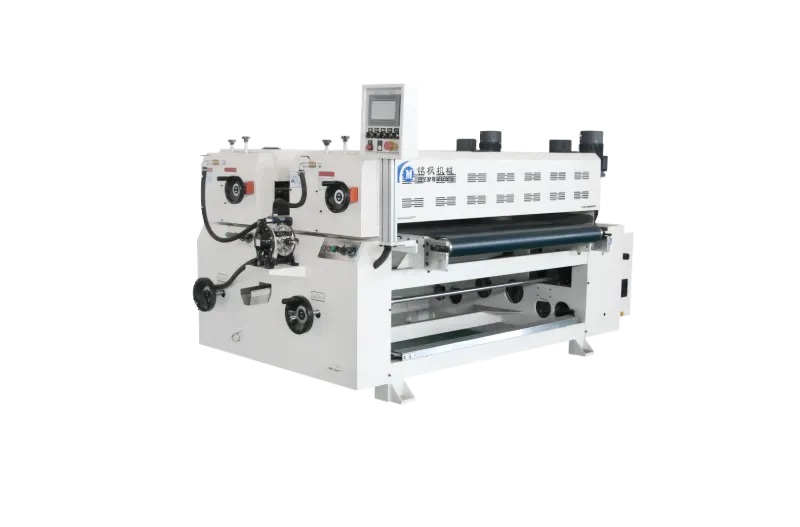

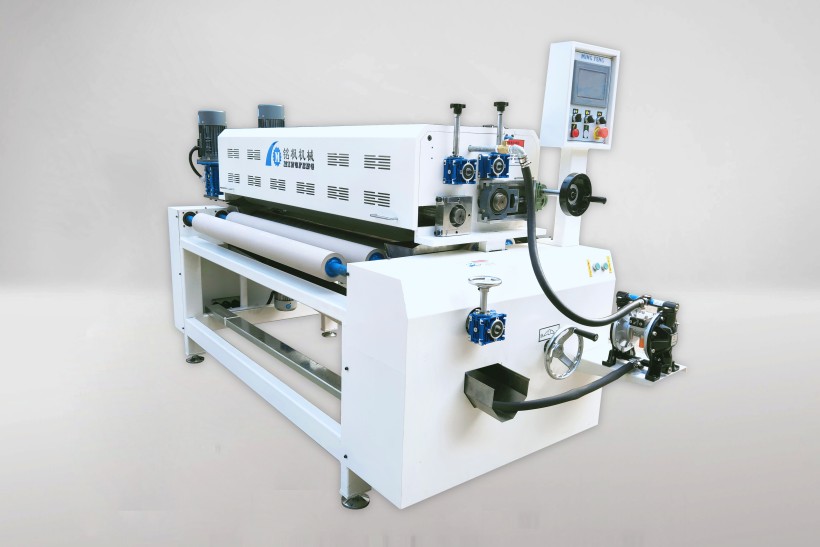

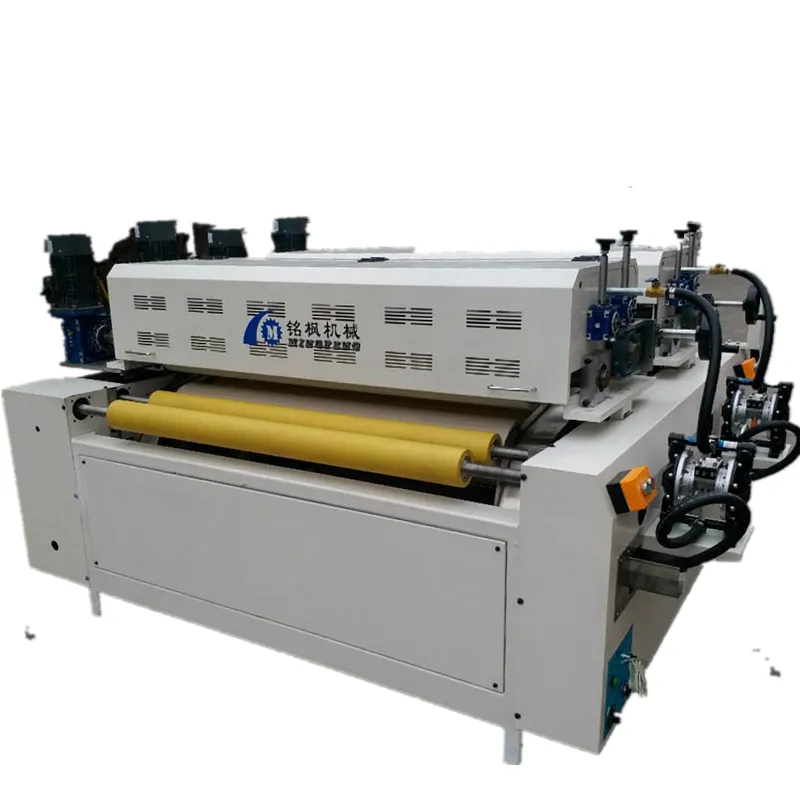

A UV Roller Coating Machine is a device that uses the roller coating principle to uniformly coat a UV-curable coating (usually a UV-curing resin) onto the surface of a substrate. Its biggest advantages are uniform coating thickness, high production speed, low energy consumption, and strong coating abrasion resistance.
The equipment typically consists of the following core components:
• Feeding and conveying system: Used to smoothly feed the substrate into the coating area, ensuring coating uniformity.
• Coating Roller System: Includes paint supply rollers, metering rollers, transfer rollers, and back pressure rollers, responsible for precise paint transfer.
• UV Curing System: Cures the coating using ultraviolet light, allowing the film to dry rapidly and form a high-gloss surface.
• Control System: Used to adjust parameters such as speed, coating thickness, roller gap, and UV energy.
Due to its modular and precise structure, the maintenance and cleaning of a UV Roller Coating Machine is both operable and requires certain technical specifications.
Is the maintenance of a UV Roller Coating Machine complex?
Generally speaking, the maintenance of a UV Roller Coating Machine is not particularly complex, but it is characterized by "meticulousness, regularity, and professionalism." In other words, as long as the operator masters the correct maintenance procedures and follows the periodic maintenance plan, the equipment's lifespan can be significantly extended and stable coating results maintained.
Maintenance work mainly includes the following aspects:
1. Routine Daily Maintenance

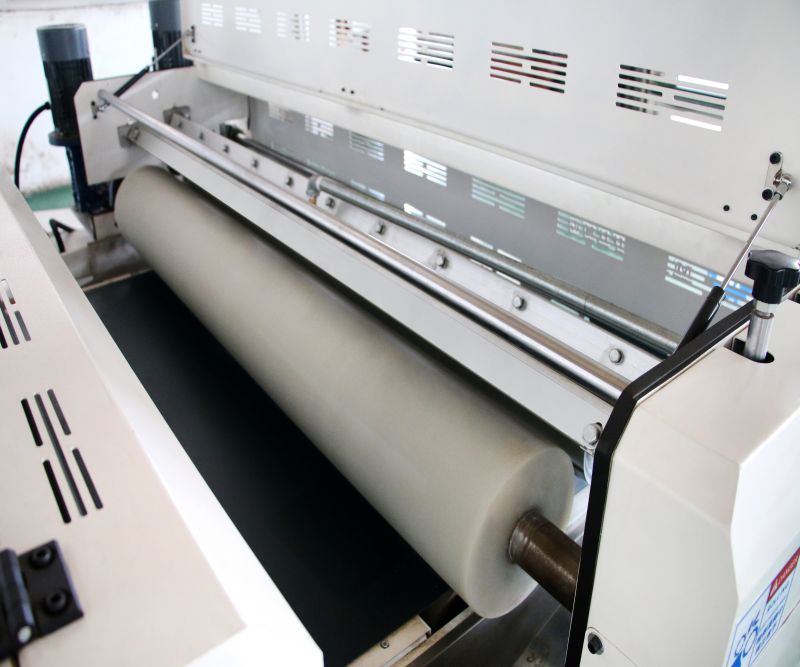

• Roller Surface Inspection: Before starting the machine each day, check the roller surface for paint residue or impurities.
• Bearing and Transmission Lubrication: Regularly add lubricating oil to prevent uneven roller rotation or abnormal noise.
• Paint Piping Inspection: Check for blockages or leaks in the paint delivery pipes.
• Electrical Control Box Cleaning: Keep the box dry and dust-free to prevent short circuits or poor contact.
2. Regular Maintenance
• Weekly: Check the clearance and wear of the doctor blade and metering roller.
• Monthly: Clean the UV lamp cover and reflector to ensure uniform UV irradiation.
• Quarterly: Check the conveyor belt tension and flatness, and correct any misalignment.
• Semi-annually: Conduct a comprehensive inspection of the motor and frequency converter performance, and test the safety interlock devices.
Regular maintenance significantly reduces equipment failure rates, keeping the UV roller coating machine in optimal operating condition.
Is cleaning a UV Roller Coating Machine difficult?
This is a frequently asked question by many users. In fact, the difficulty of cleaning a UV Roller Coating Machine mainly depends on the type of paint, operating habits, and the equipment's structural design.
Generally, UV coatings are relatively easy to remove before they cure, but once cured by UV light, they form a hard coating that is difficult to remove. Therefore, the key to cleaning is timeliness.
1. Cleaning uncured areas is relatively simple
For areas not cured by UV light, such as paint rollers, paint tanks, and pipelines, you can use a dedicated UV coating cleaner or solvent-based thinner for wiping and circulating cleaning.
2. Cleaning cured areas is more difficult
If the coating has been cured by UV light, it needs to be treated mechanically (e.g., scraping, sanding) or with special chemical cleaners. This is why cleaning must be done immediately after production.
3. Factors affecting cleaning difficulty
• Coating viscosity: High-viscosity UV paint residue adheres more easily to the roller surface.
• Ambient temperature and humidity: High temperatures accelerate coating curing, increasing cleaning difficulty.
• Proper operation: Failure to promptly turn off the UV lamp or wipe away residual paint will significantly increase maintenance costs.
In summary, cleaning a UV Roller Coating Machine is not difficult, but timing and method are crucial.
How to Properly Clean a UV Roller Coating Machine?
A correct cleaning procedure is key to ensuring stable equipment operation. The following are standardized cleaning steps applicable to most models of UV roller coating machines.
1. Shutdown and Power Off
Before cleaning, ensure the equipment is completely powered off and the UV lamps and paint supply system are turned off. If the equipment is hot, allow it to cool naturally first.
2. Remove Residual Paint
Use a lint-free cloth dampened with a suitable amount of cleaning agent to gently wipe along the direction of roller rotation.
For stubborn paint residue, a plastic scraper can be used to assist in removal; avoid using metal scrapers to prevent damage to the roller surface.
3. Clean the Paint Supply System
Open the paint circulation pipes and flush with cleaning agent for 5-10 minutes.
Ensure there are no deposits or air bubbles remaining inside the pipes.
4. Clean the UV Lamp and Reflector
Gently wipe the surface of the lamp tubes and reflector with clean lens paper or a soft cloth. Do not use corrosive solvents, as these may affect light reflection efficiency.
5. Final Inspection and Maintenance
After cleaning, start the machine in idle mode to observe whether the operation is stable.
Apply rust-preventive oil to bearings and exposed metal parts.
This process not only improves equipment cleaning efficiency but also prevents secondary contamination.
The key to maintaining a UV Roller Coating Machine lies in the "details"
The stability of a UV Roller Coating Machine often depends on whether daily details are paid attention to.
For example, if there are tiny particles remaining on the roller surface, it may cause uneven coating or scratches; if the UV lamp reflector accumulates too much dust, it will affect the distribution of curing energy, resulting in inconsistent gloss of the finished product.
Therefore, the focus of maintenance is not a one-time major overhaul, but continuous small maintenance.
• Daily cleaning → Keep the roller surface clean
• Weekly maintenance → Check mechanical parts for wear
• Monthly inspection → Confirm the stability of the electrical system
This is how to achieve long-term trouble-free operation.
What cleaning safety precautions should operators take?
Safety is the primary consideration when cleaning a UV Roller Coating Machine. The following are key points that operators must adhere to:
• Wear protective equipment: including protective gloves, safety glasses, and chemical-resistant masks.
• Ensure good ventilation: When using cleaning agents, operate in a well-ventilated environment to prevent solvent vapor buildup.
• Do not work with electricity: Always disconnect power and gas before cleaning to avoid the risk of electric shock.
• Never use metal tools to scrape: This may damage the precision of the roller coating.
• Store cleaning agents separately: Different types of UV coatings should be used with appropriate cleaning agents to avoid chemical reactions.
Strict safety management not only protects operators but also prevents equipment corrosion or damage.
What are some common maintenance mistakes for UV Roller Coating Machines?
Even experienced operators may fall into some maintenance pitfalls. Understanding these issues can help improve maintenance efficiency.
Mistake 1: Using general-purpose solvents to clean all parts
Different parts are made of different materials. For example, rubber rollers and stainless steel rollers have significantly different chemical resistance. Blindly using strong solvents may cause rubber to age or swell.
Myth 2: Insufficient Cleaning Frequency
Some companies, to save time, only clean after production, leading to long-term paint buildup inside the equipment and ultimately increasing maintenance difficulty.
Myth 3: Neglecting UV Lamp Dust Cleaning
UV lamps accumulate dust over time, affecting light intensity. It is recommended to wipe the reflector surface at least once a week.
Myth 4: Neglecting Roller Gap Calibration
Excessive roller gap deviation not only affects coating thickness but can also cause mechanical wear.
Avoiding these misconceptions will make the maintenance of UV roller coating machines more efficient and economical.
From a maintenance perspective, what are the advantages of a UV Roller Coating Machine?
Although regular cleaning is required, UV Roller Coating Machines still offer significant maintenance advantages compared to traditional coating equipment:
• Faster coating curing and less residue → Reduces the need for prolonged cleaning.
• Modular structure → Each component can be independently disassembled and assembled, making maintenance more convenient.
• Comprehensive automatic control system → Self-diagnostic function reduces the burden of manual inspection.
• High corrosion resistance of materials → Key components are made of stainless steel or polymer materials, offering excellent chemical resistance.
Therefore, under proper operation, the maintenance workload of a UV Roller Coating Machine is relatively light and highly controllable.
Is the maintenance and cleaning of a UV Roller Coating Machine easy?
In summary, the maintenance and cleaning of a UV Roller Coating Machine is a process that is "easy to master but must be performed correctly."
By doing the following, you can ensure the long-term efficient operation of the equipment:
• Clean promptly to prevent paint residue from hardening.
• Perform periodic maintenance, inspecting the mechanical, electrical, and light source systems.
• Use the correct cleaning agents and tools to avoid damaging the rollers.
• Follow safe operating procedures to ensure the safety of both personnel and the machine.
Therefore, the answer is yes.
✅ UV Roller Coating Machines are relatively easy to maintain and clean, but require scientific methods and strict adherence.
Can alcohol be used to clean a UV Roller Coating Machine?
Generally not recommended, as alcohol evaporates quickly and has insufficient cleaning power, and may not completely dissolve UV paint residue. A dedicated UV cleaning agent should be used.
How often should the UV lamp be replaced?
The light intensity should be checked after 1000-1500 hours of operation. If it is below 70% of the rated value, the lamp should be replaced.
Can high-pressure air be used to blow away dust during cleaning?
Yes, but the power must be disconnected, and direct airflow onto the control box or lamp cover should be avoided.
