With the widespread application of UV-cured coatings, UV furniture dryers have become an indispensable key piece of equipment in furniture factory coating lines. They utilize high-energy ultraviolet light to cure the paint film in a very short time, forming a high-hardness, high-gloss coating.
However, when selecting equipment, many companies often ask this seemingly simple yet highly technical question:
"Is a one-lamp UV furniture dryer machine enough?"
To answer this question, a thorough analysis is necessary, considering factors such as coating characteristics, curing energy, production line speed, number of process layers, and board characteristics.
This article will systematically explain the applicable conditions, limitations, and scientific configuration principles of a "one-lamp UV furniture dryer machine," helping furniture companies rationally plan the quantity and energy distribution of UV curing equipment.
What is a UV furniture dryer? What role does it play in furniture coating?
Before understanding whether "one lamp is enough," we first need to clarify the definition and basic principles of a UV furniture dryer.
1. Definition of a UV Furniture Dryer
A UV furniture dryer machine is a device that utilizes ultraviolet (UV) radiation energy to rapidly polymerize the photoinitiator in the coating, thus instantly curing the UV coating.
It typically consists of the following core components:
• UV lamp system (high-pressure mercury lamps or metal halide lamps);
• Reflector and cooling system (to improve light utilization and control temperature);
• Conveyor belt system (for continuous passage of workpieces through the irradiated area);
• Protective housing and exhaust system (to ensure operational safety and heat dissipation).
2. Function of a UV Furniture Dryer
In a furniture coating production line, a UV furniture dryer machine is usually installed after the coating machine or sprayer. It is responsible for rapidly curing the freshly applied UV paint layer, making it hardened, wear-resistant, and non-sticky, thus preparing it for the next sanding or painting process.
In short:
• The coating machine is responsible for painting, and the UV furniture dryer machine is responsible for curing.
• The two are inseparable core partners in an automated coating system.
What is a single-lamp UV furniture dryer?
In UV curing equipment, "single-lamp" refers to a dryer equipped with only one UV lamp.
Common UV lamp power specifications are as follows:
• 80W/cm²
• 100W/cm²
• 120W/cm²
• 140W/cm²
The structure of a single-lamp UV furniture dryer is relatively simple:
• One set of UV light sources;
• Single-channel conveyor belt;
• One set of reflectors and exhaust system.
This type of machine has a compact structure, relatively low price, and low energy consumption, therefore it is widely used by some small furniture factories or experimental production lines.
However, whether it is "enough" depends on the actual application conditions, because the UV curing effect depends not only on the number of lamps, but also on many other factors such as light intensity, energy density, coating thickness, plate speed, and coating type.
Is a single-lamp UV furniture dryer machine sufficient?
To determine whether "one lamp is sufficient," it is necessary to analyze it in conjunction with the production conditions of furniture coating.
Below, we will answer this core question from multiple perspectives.
1. Can a single-lamp UV furniture dryer complete curing?
Under ideal conditions, if the coating on the board surface is thin (generally ≤ 5μm) and a highly reactive UV paint is used, then a high-power lamp (e.g., 120W/cm²) can indeed achieve complete curing.
However, this is extremely rare in furniture production. Most furniture has a thick coating layer and requires multiple coats. Single-lamp irradiation often only achieves surface hardening, while internal curing is insufficient.
The result will be:
• Dry surface, sticky inner layers;
• Poor coating adhesion;
• Uneven hardness, easily scratched;
• Unstable gloss or haziness.
Therefore, from an industrial production perspective, a single-lamp UV furniture dryer is generally only suitable for non-continuous production applications such as light coating, experiments, and sample testing.
2. Does the type of paint affect the number of lamps in a UV dryer machine?
Yes, different types of UV paint require different amounts of light energy.
Coating Types | Features | Curing energy requirement | Suitable for single-lamp curing? |
| Transparent UV Paint | High light transmittance | Low | ✔ Partially applicable |
| White UV Paint | High light-blocking ability | High | ✘ Not recommended for single lamps |
| Colored UV Paint | UV absorption | High | ✘ Not recommended for single lamps |
| Thick Film UV Primer | Thick coating | Very high | ✘ Requires multiple lamps |
It is evident that only when using transparent or light-colored thin-film UV paints is a single-lamp UV furniture dryer machine"barely sufficient"; while in most furniture surface coatings (white, high-gloss, thick film), a single-lamp configuration clearly cannot meet the curing requirements.
3. Does Production Speed Affect the Number of UV Dryers?
Very Significantly.
The curing effect of a UV furniture dryer is inversely proportional to the conveyor speed.
As the production line speed increases, the time the workpiece spends in the illuminated area shortens, reducing energy absorption.
If only one UV lamp is used:
• A slightly faster board speed may result in incomplete curing of the paint layer;
• To compensate for the energy consumption, the lamp wattage must be increased, but high temperatures can cause board deformation or yellowing of the paint film.
Therefore, in actual production lines, to ensure a balance between speed and quality, at least two or three UV lamps are typically used in combination, with segmented irradiation to achieve uniform curing.
4. Does the board width affect the UV lamp configuration?
Equally important.
The effective irradiation width of a UV lamp is generally 600mm ~ 1300mm, while the width of furniture boards often varies between 400mm ~ 1220mm.
If only one lamp is used, when the workpiece width approaches the lamp's irradiation limit, insufficient light energy at the edges will lead to a decrease in curing effect.
Therefore, in wide board production (such as door panels and cabinet panels), a dual-lamp cross-lighting arrangement or a reflector diffusion design is usually used to ensure uniform irradiation.
5. Does the number of coating layers determine the number of UV lamps?
Furniture coating often involves multiple layers:
• Sealing primer → Primer → Topcoat → Clear coat.
• Each layer must be cured separately.
Therefore: A single-lamp UV furniture dryer can only cure one layer.
To complete the entire furniture manufacturing process, at least multiple coating machines + multiple UV furniture dryers are needed in combination.
For example:
• After primer application → UV dryer 1;
• After topcoat application → UV dryer 2;
• After clear coat application → UV dryer 3.
In which situations is a single-lamp UV furniture dryer a reasonable choice?
While a single-lamp UV furniture dryer machine cannot meet the full curing requirements in most industrial furniture production, it still has its application value under specific conditions.
1. Small-scale experimental lines or R&D applications
Used for coating performance testing, UV curing experiments, and small-scale sample verification; where low output and speed requirements are met, a single lamp is sufficient.
2. Light Coating or Single-Layer Transparent Coating
Thin coating thickness, good light transmittance; single-lamp irradiation can achieve complete curing.
3. Local Repair or Small Part Processing
Small area, concentrated energy, limited curing range; one lamp is sufficient to complete the curing task.
4. Low-Speed Conveyor Process
When the conveyor belt speed is below 5 meters/minute, the energy of a single lamp is relatively sufficient.

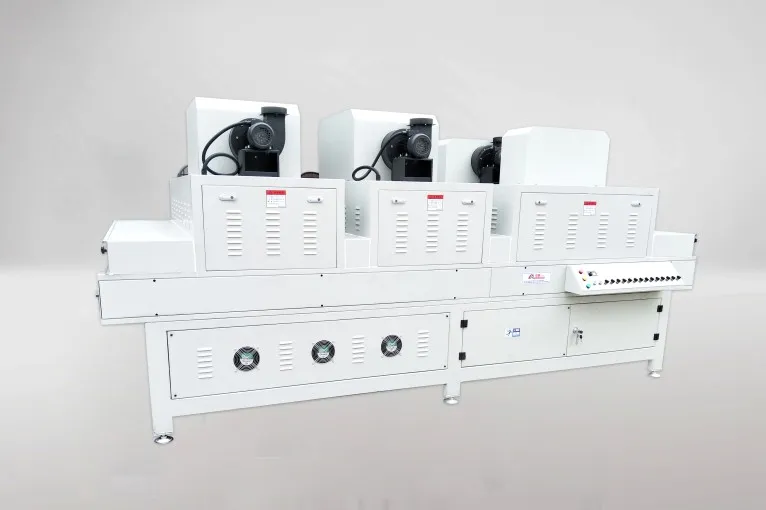

Why Does Industrial Furniture Production Require Multi-Lamp UV Dryers?
To achieve truly continuous industrial production, a single-lamp UV furniture dryer machine is clearly insufficient.
The following explains the necessity of multi-lamp systems:
Lamp Configuration | Features | Applicable Scenarios
Single Lamp | Low light energy, localized curing | Experimental, small-batch production
Two Lamps | Basic curing + deep curing | Ordinary primer lines
Three Lamps | Segmented energy control | Topcoat, matte finishes
Four Lamps and above | High-energy full coverage | Thick film coatings, high-speed lines
In multi-lamp configurations, a common design is a "high-intensity + low-intensity" combination:
• Front-end lamps: Provide high-intensity energy for instant surface curing;
• Back-end lamps: Use medium-intensity light for internal curing, preventing the paint film from becoming brittle.
What quality problems might occur if only one lamp is used?
To further explain the technical basis for "one lamp is not enough," we have summarized common defects:
Problem Phenomenon | Cause Analysis | Solution
Surface Dry, Inner Adhesion | Insufficient light energy, internal incomplete curing | Increase the number of lamps or extend the irradiation time
Surface Haze | Uneven illumination or low energy | Adjust lamp height and reflection angle
Unstable Gloss | Incomplete curing | Use more lamps or high-energy lamps
Low Hardness | Insufficient cross-linking reaction | Add a UV furniture drying module
Poor Adhesion | Insufficient reaction of the underlying layer | Reduce board speed or increase energy density
How to Scientifically Configure the Number of UV Furniture Dryers?
In furniture factory production planning, the configuration of UV furniture dryer machines should be based on the following four core parameters:
1. Coating Thickness (μm)
For every 10μm increase, the energy required for curing increases by approximately 20%.
2. Conveyor Speed (m/min)
The higher the board speed, the higher the energy density must be.
3. Lamp Power (W/cm)
Generally, a starting point of 100W/cm is recommended; for high-reactivity paints, 120W/cm is recommended.
4. Coating Color and Transmittance
Dark or white paints require multiple lamps to ensure thorough curing.
A reasonable empirical formula is:
Lamp Energy × Irradiation Time ≥ Coating Curing Energy Requirement.
As long as this formula is met, complete curing can be achieved. If not, even with high lamp wattage, a single lamp is insufficient to cure a thick coating.
What are the lamp arrangement methods for UV furniture dryers?
The lamp arrangement directly affects the curing effect and energy distribution. Common arrangements include:
• Single-lamp vertical irradiation type – One lamp shines directly onto the board surface, suitable for narrow boards;
• Two-lamp cross irradiation type – Two lamps irradiate at an angle, improving edge curing;
• Multi-lamp linear array type – Multiple lamps are arranged continuously, suitable for high-speed roller coating lines;
• High-low energy combination type – High energy at the beginning and low energy at the end to prevent paint film embrittlement.
A UV furniture dryer machine with only one lamp can only achieve the first irradiation method, and its energy distribution is singular, unable to cover complex curing requirements.
