In the modern furniture manufacturing industry, surface treatment technology directly determines the appearance, feel, and durability of the product. With increasing consumer demand for environmentally friendly, high-gloss, and wear-resistant surfaces, curtain coating machine production lines have gradually become essential equipment for furniture surface coating.
Compared to traditional roller coating and spraying methods, curtain coating technology achieves higher coating uniformity and smoothness while maintaining high production efficiency.
Many furniture manufacturers, when introducing coating equipment, often ask a key question – "How should a curtain coating machine production line be configured for the furniture industry?"
This article will systematically explain how to scientifically configure an efficient, stable, and economical curtain coating machine production line in the furniture industry from multiple perspectives, including equipment composition, process flow, parameter control, and configuration essentials.
What is a curtain coating machine?
Why is it suitable for the furniture industry?
1. Basic Principles of a Curtain Coating Machine

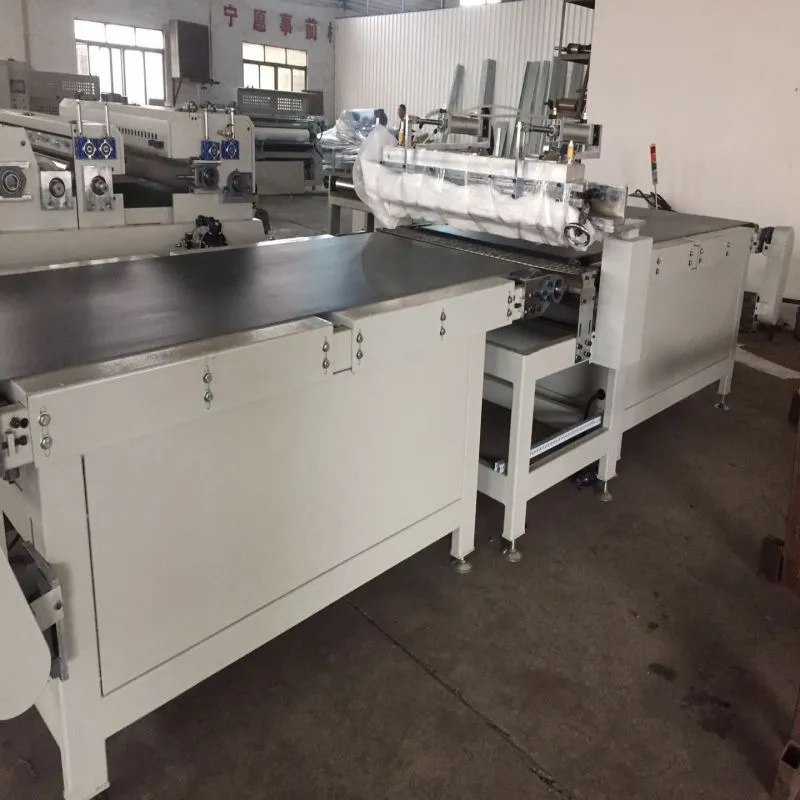

A curtain coating machine (Curtain Coater) is a device that forms a continuous "liquid curtain" of liquid paint, allowing the object to be coated to pass through this paint curtain to achieve uniform coating. Its core feature is non-contact coating – the workpiece surface does not directly contact the coating head, but rather the coating naturally covers the surface through gravity, resulting in an extremely flat coating film.
This characteristic is particularly important in furniture manufacturing. Products such as wood panels, decorative panels, and door panels require smooth, flawless surfaces. Traditional roller coating easily leaves roller marks, while a curtain coating machine can achieve a seamless, uniform, and high-gloss coating effect.
2. Advantages in the Furniture Industry
• Suitable for flat panels: Especially suitable for solid wood panels, MDF panels, laminated panels, flooring substrates, etc.;
• High coating uniformity: Avoids common sagging and paint buildup found in spraying and roller coating;
• High paint utilization rate: Paint can be recycled and reused, with a utilization rate exceeding 90%;
• Compatible with UV paint systems: Can be seamlessly integrated with UV curing systems to meet high hardness requirements;
• High degree of automation: Easy to integrate with loading, unloading, drying, and curing equipment to form a production line.
For these reasons, curtain coating machine production lines have become one of the mainstream choices for high-end coating in the furniture industry.

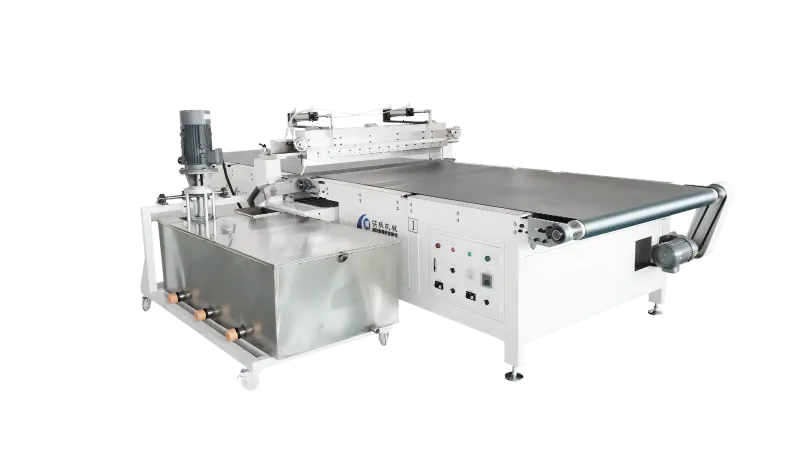

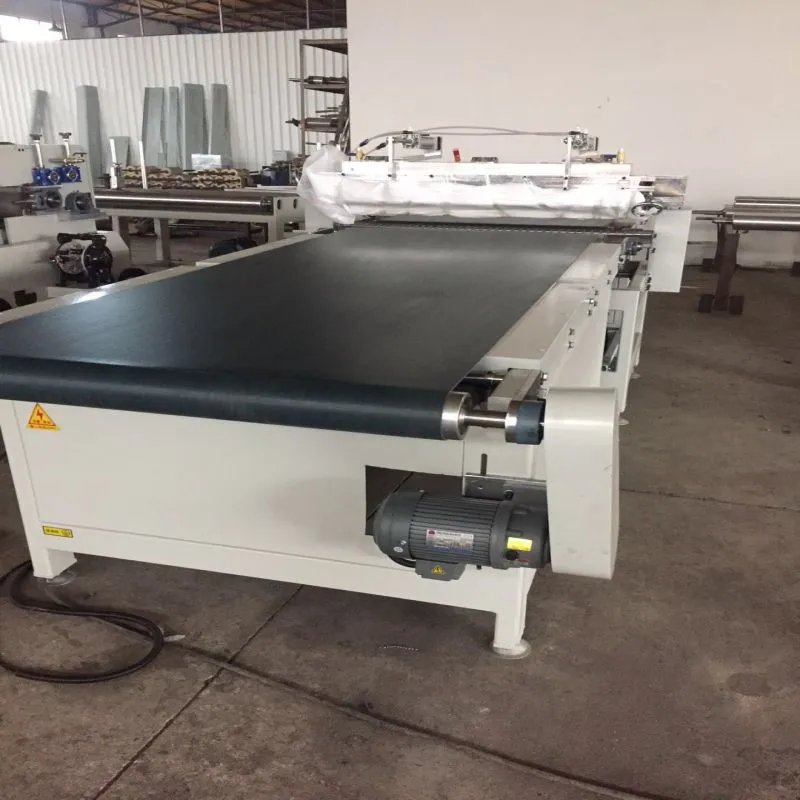

What are the components of a curtain coater production line in the furniture industry?
To achieve efficient and stable coating results, a complete curtain coating machine production line typically includes the following core components:
1. Feeding System
Automatic conveying equipment evenly feeds the panels into the production line, ensuring consistent spacing and speed.
2. Pre-treatment System
Includes dust collectors, electrostatic precipitators, or sanding machines to clean dust and burrs from the panel surface.

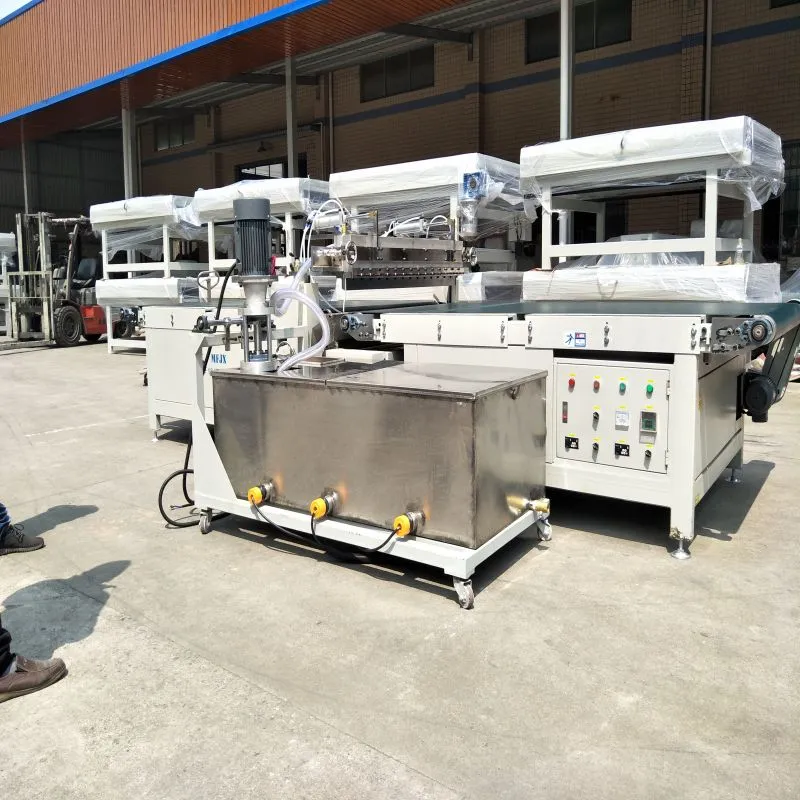

3. Curtain Coating Machine
The core equipment, which applies paint evenly to the panel surface through a liquid curtain. Single or double curtain coaters can be configured depending on the coating requirements.
4. Leveling Zone
Allows the newly applied paint film to naturally level, eliminating small ripples and bubbles.
5. UV Curing Machine or Drying Machine
Cures the coating. If using UV paint, a UV curing machine is used; if using solvent-based paint, a hot air drying machine is used.
6. Cooling and Unloading System
After curing, the workpiece is cooled and then enters the unloading platform for automatic unloading.
The entire process is interconnected, ensuring that furniture panels maintain high-quality surface effects even during high-speed production.
What is the core role of the curtain coater machine in the production line?
In a furniture coating production line, the curtain coating machine is one of the key pieces of equipment. Its main functions include:
• Film formation: The paint curtain ensures even deposition of the coating, determining surface smoothness and thickness;
• Paint liquid circulation control: Maintains stable flow rate to ensure consistent film thickness;
• Coating thickness adjustment: Achieves precise control through overflow port gap, pump speed, and conveying speed;
• Compatibility with various coating systems: Including UV paint, PE paint, PU paint, water-based paint, etc.;
• Reduced reliance on manual labor: Operating parameters can be programmatically controlled, reducing human error.
In most furniture companies, the curtain coating machine is usually used in conjunction with UV curing equipment, forming a continuous automated production mode of "coating-leveling-curing," significantly improving production efficiency and product consistency.
Furniture Industry: How to configure a curtain coating machine production line?
This is the question that companies are most concerned about. The configuration of a furniture production line needs to be considered based on product type, coating requirements, production capacity targets, and factory conditions.
1. Basic Configuration (Suitable for small and medium-sized furniture factories)
Production line process:
• Feeding → Dust removal → Curtain coating machine → Leveling → UV curing machine → Unloading
Features:
• Compact structure, small footprint;
• Suitable for single-sided coating, such as furniture door panels or cabinet panels;
• Low investment cost, easy maintenance;
• Can process 10-30 meters of workpieces per minute, suitable for small batch production.
2. Double Curtain Configuration (Suitable for high-gloss UV paint coating)
Production line process:
• Feeding → Dust removal → First curtain coating machine (primer) → UV curing → Sanding machine → Second curtain coating machine (topcoat) → UV curing → Cooling → Unloading
Features:
• Achieves multi-layer coating process (primer + topcoat);
• Coating thickness can be precisely controlled, suitable for high-gloss furniture panels;
• Smooth and high-gloss coating surface;
• Commonly used in panel furniture and cabinet door panel production lines.
3. Double-Sided Synchronous Configuration (Suitable for flooring and furniture components)
Production line process:
• Feeding → Double-sided dust removal → Upper and lower double curtain coating machines → Double-sided UV curing machine → Cooling → Unloading
Features:
• Simultaneous coating of upper and lower surfaces, doubling efficiency;
• Avoids multiple handling, increasing productivity;
• Suitable for products requiring double-sided coating, such as flooring and furniture back panels.
4. Flexible Automation Configuration (Suitable for large and medium-sized production bases)
Production line process:
• Automatic feeding → Sanding and dust removal → Curtain coating machine → Automatic leveling section → Multi-stage UV curing machine → Cooling conveyor → Automatic stacking/transfer system
Features:
• Uses PLC centralized control for automatic parameter adjustment;
• Intelligent recognition of workpieces of different sizes;
• Supports rapid switching of multiple coating processes;
• Suitable for large-scale, continuous production of high-end furniture brands.
What key parameters need to be considered when configuring a curtain coater production line?
In the furniture industry, coating quality depends not only on the paint performance but also on the precise control of the curtain coater. The following are the core parameters that must be considered during configuration:
1. Overflow Port Width and Precision
This determines the flatness of the paint curtain. High-quality curtain coaters use precision stainless steel overflow troughs, with a gap accuracy of up to ±0.01mm.
2. Coating Viscosity and Flow Rate Control
Too high viscosity can cause the paint curtain to break, while too low viscosity can cause sagging. A curtain coating machine with a constant pressure pump system and temperature control device should be selected to maintain coating stability.
3. Conveyor Speed
This affects the film thickness and uniformity. The speed commonly used in the furniture industry is 5-40 m/min, and should be adjusted according to the paint type and target thickness.
4. Coating Width
The width should be selected based on the maximum width of the panel. Common specifications include 600mm, 900mm, and 1300mm.
5. Equipment Material and Corrosion Resistance
Curtain coating machines need to be in contact with coatings for a long time, so stainless steel or corrosion-resistant aluminum alloy structures should be selected to ensure service life.
6. UV Curing Power
If a UV curing system is configured, a high-pressure mercury lamp or LED-UV lamp should be selected according to the paint type, with a power range generally of 80-160 W/cm.
Curtain Coating Machine Configuration Ideas for Different Furniture Processes
1. High-Gloss UV Furniture Panels
• Use a double curtain coating machine (primer + topcoat);
• Equipped with a multi-stage UV curing system;
• Precisely control the flow rate to ensure a mirror-like effect.
2. Matte or Open-Grain Wood Furniture
• Use a single curtain coating machine;
• The coating thickness is controlled at 15-30μm;
• Light brushing or sanding treatment can be performed after curing.
3. Water-Based Eco-Friendly Furniture
• Equipped with a curtain coating machine with constant temperature and humidity control;
• Add a circulating filtration system;
• Use a low-shear pump to avoid bubbles.
4. Primer Sealing Line
• Single-layer curtain coating machine with high-power UV curing;
• Higher film thickness to improve sealing;
• Commonly used in the base coating process of panels.
How much space is needed for a curtain coater used in the furniture industry?
Depending on the production line configuration, a basic curtain coater production line occupies approximately 10-20 meters; a double-curtain or double-sided configuration requires 25-40 meters of space.
Can a curtain coater be used for all furniture paints?
It can be used for most furniture paints, including UV paints, PU paints, and water-based paints. However, the viscosity, flow rate, and curing method need to be adjusted for each type of paint.
How to ensure consistent coating thickness?
The overflow system pressure needs to be kept stable, and an automatic flow control device should be used. High-quality curtain coating machines are usually equipped with electronic flow meters and closed-loop control systems.
Is the curtain coater machine easy to clean?
It's not difficult. The equipment uses a modular design, allowing for quick draining of paint and circulation rinsing with a special cleaning agent.
How many operators are needed for a curtain coating machine production line?
A highly automated production line only requires 2-3 operators to complete the entire line operation (including loading and inspection).
