In industrial coating, wood processing, and plastic surface treatment, UV coating dryers have long been essential equipment for improving production efficiency and surface curing quality. One of its core components—the UV lamp—directly determines the curing speed, surface gloss, and production stability of the coating.
However, many users are often confused: how often should the UV lamp of a UV coating dryer machine be replaced?
This article will analyze the lifespan, replacement cycle, influencing factors, and maintenance points of UV lamps from multiple perspectives to help you scientifically determine when to replace them and ensure the long-term stable operation of the equipment.
What is a UV coating dryer machine? Why is the UV lamp so crucial?

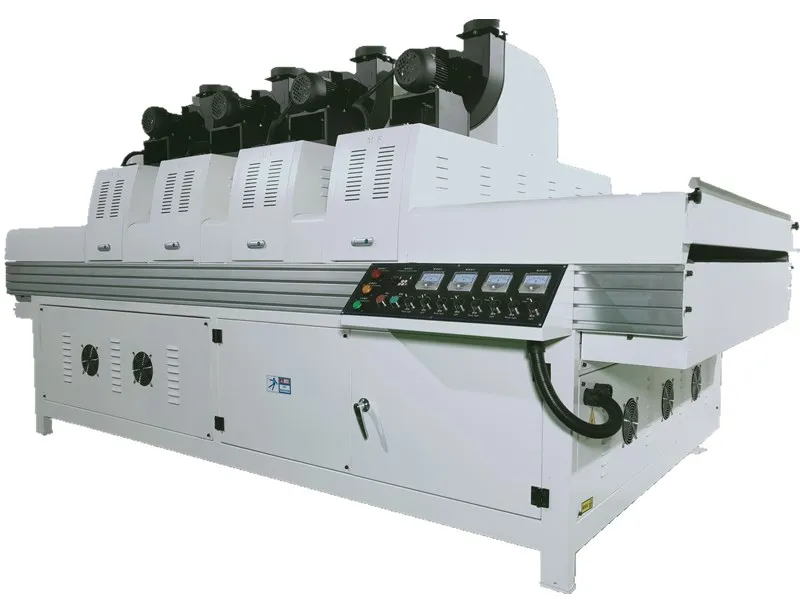

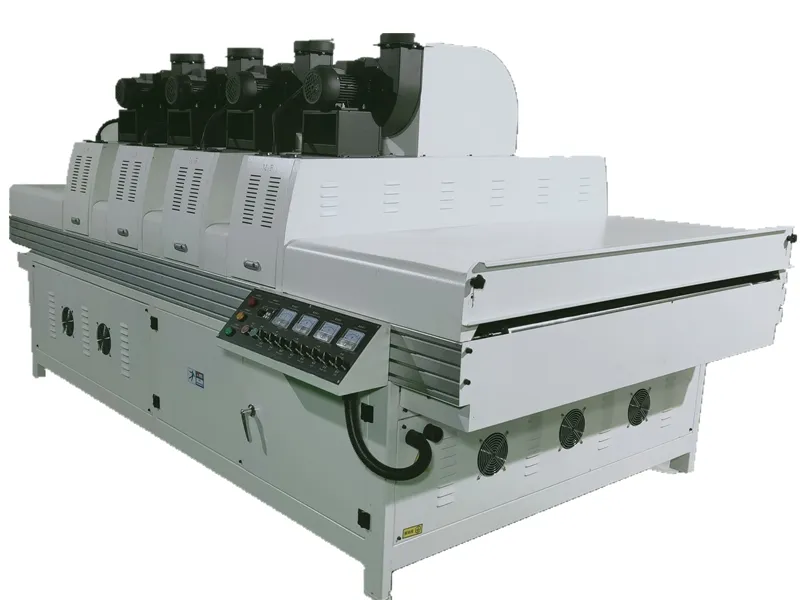

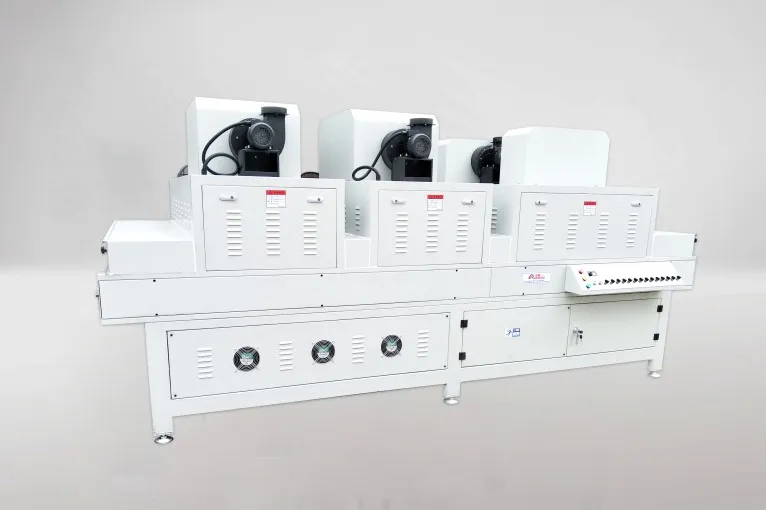

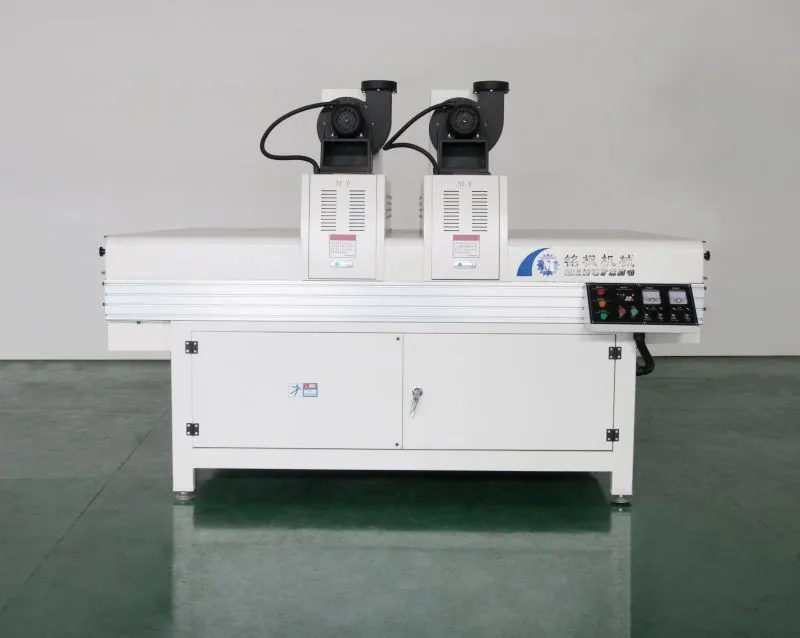

A UV coating dryer machine is a device that uses ultraviolet light energy to cure coatings. Its core principle is: under UV light irradiation within a specific wavelength range (usually 365nm-400nm), the photoinitiator in the coating is activated, thereby initiating a polymerization reaction and causing the coating to harden instantly.
Throughout the process, the UV lamp is the energy source. It converts electrical energy into ultraviolet light of a specific wavelength, determining whether the coating can be fully cured. If the intensity of the UV lamp decreases or the wavelength shifts, it will lead to:
• The coating surface dries while the bottom remains uncured;
• Reduced coating adhesion;
• Uneven surface gloss or stickiness;
• Reduced production efficiency.
Therefore, understanding the lifespan and replacement cycle of UV lamps in a UV coating dryer machine is crucial for maintaining equipment performance and product quality.
How long is the lifespan of a UV lamp in a UV coating dryer machine?
Under normal operating conditions, the lifespan of a UV lamp in a UV coating dryer machine is generally 800 to 1500 hours.
The specific lifespan depends on the type of lamp, brand, operating environment, and maintenance. The following are the lifespan ranges for several common UV lamps:
UV Lamp Types | Average service life (hours) | Features |
| High-Pressure Mercury Lamp | 800–1000 | Low cost, widely used in the wood and plastics industries |
| Metal Halide Lamp | 1000–1500 | Wideer spectrum, suitable for various coating systems |
| LED UV Lamp | 20000–30000 | Long lifespan and low energy consumption, but higher price |
Although LED UV lamps theoretically have a longer lifespan, most UV coating dryers still primarily use mercury lamps and metal halide lamps due to their traditional structure.
What are the main factors affecting the lifespan of UV lamps in a UV coating dryer machine?
The lifespan of a UV lamp is not a fixed value; it is affected by various environmental and operational factors. Here are some key factors:
1. Ignition Frequency and Start-Stop Cycle
Each time a UV lamp is turned on, it undergoes a high-voltage start-up process. Frequent start-ups and stop-starts accelerate filament aging.
Recommendation: When using a UV coating dryer machine, minimize frequent switching of the lamps within a short period.
2. Operating Temperature and Cooling System
Excessive temperature is one of the main causes of shortened UV lamp life.
UV lamps generate a lot of heat during operation. If the cooling fan is blocked or ventilation is inadequate, the lamp may overheat or even burn out.
Recommendation: Regularly check the cooling ducts, fans, and filters of the UV coating dryer machine to ensure good ventilation.
3. Voltage Stability
Voltage fluctuations affect the lamp's discharge stability. Both excessively high and low voltages can shorten lamp life.
Recommendation: Use a regulated power supply to keep the UV lamp operating within its rated voltage range.
4. Reflector Contamination and Lamp Cover Cleanliness
If the lamp cover surface is contaminated with dust, paint mist, or grease, it will reduce the UV light intensity, thus increasing the workload on the lamp.
Recommendation: Clean the reflector of the UV coating dryer machine weekly to prevent heat buildup.
5. Ambient Humidity and Dust
A humid or dusty workshop environment can affect the conductivity of the lamp contacts and accelerate electrode oxidation.
Recommendation: Keep the environment where the UV coating dryer machine is located dry and clean.
How to Determine if the UV Lamp of a UV Coating Dryer Machine Needs Replacement?
To determine if a UV lamp needs replacement, consider the following:
1. Decreased Illuminance or Energy Output
Regularly check the lamp's output intensity using a UV energy meter. When the UV energy drops below 70% of its initial value, it indicates insufficient light intensity and the lamp should be replaced promptly.
2. Slower Curing Speed
If the curing time of the same coating formula is significantly longer and the surface is no longer smooth, this usually indicates severe lamp intensity decay.
3. Lamp Color Change
Prolonged use of UV lamps can cause the lamp wall to blacken or discolor. This is a result of mercury vapor deposition and also indicates that the lamp's lifespan is nearing its end.
4. Equipment Alarm Prompt
Some high-end UV coating dryers are equipped with a UV intensity detection system. When the light intensity falls below the set value, an alarm will automatically alert the user to replace the lamp.
How often should the UV lamps of a UV coating dryer be replaced?
While the theoretical lifespan can be used as a reference, the actual replacement cycle should be determined based on usage frequency, production duration, and test results. General Recommendation:
Frequency of use | Daily running time | Recommended replacement cycle |
High-intensity production | 8 hours or more | Replace every 3–4 months |
| Moderate use | 4–6 hours | Replace every 6 months |
| Occasional use | Several times per week | Replace every 9–12 months |
Professional Recommendation:
Even if the UV lamp is not completely damaged, it should not be used until it is completely broken. As UV output decreases, curing efficiency declines, leading to increased overall energy consumption and decreased production line yield for the UV coating dryer, which is counterproductive.
What are the maintenance methods to extend the lifespan of UV lamps in a UV coating dryer?
To reduce the frequency of UV lamp replacement and extend equipment life, the following methods can be used:
1. Regularly clean the lamp cover and reflector
It is recommended to stop the machine weekly for inspection. Clean the lamp cover with a soft cloth and alcohol to prevent excessive light decay.
2. Keep the cooling system unobstructed
Regularly clean the air ducts to ensure stable airflow and prevent the UV lamp from overheating.
3. Avoid Frequent Start-Stops
For extended shutdowns, switch the lamp to standby mode to reduce high-voltage starts.
4. Equip with a UV Intensity Meter
Regularly monitoring UV intensity helps in scientifically determining replacement timing.
5. Properly Store Spare Lamps
Spare UV lamps should be stored in a dry, dark, vibration-free environment to prevent moisture or glass damage.
What are the safety precautions when replacing UV lamps?
When replacing UV lamps in a UV coating dryer machine, strictly adhere to safety regulations:
• Disconnect the power and wait for the equipment to cool completely;
• Wear protective gloves to avoid oil contamination of the lamp tube;
• Do not touch the quartz part of the lamp tube;
• Ensure good contact of the lamp head to prevent sparking;
• After starting, check the light intensity to ensure uniform illumination.
Does a lit UV lamp mean sufficient light intensity?
Not necessarily. Even if the UV lamp is lit, the light intensity may have dropped to a level insufficient to cure the coating. This must be confirmed using an energy meter.
Can I replace only the faulty lamp?
Yes, but it's recommended to replace all UV lamps in the same UV coating dryer machine set simultaneously to ensure consistent light intensity.
Is it feasible to use a UV lamp until it breaks down completely?
No. Prolonged use of aging lamps not only affects curing but can also lead to localized overheating or even explosion of the equipment.
Does the UV lamp installation angle affect its lifespan?
Yes. Incorrect reflection angles or uneven lamp spacing can cause heat buildup, affecting lifespan and curing uniformity.
What materials can be processed using XMF Machinery equipment?
XMF Machinery equipment is designed to process a wide range of materials, including wood panels, furniture components, doors, flooring, calcium silicate boards, plastic sheets, glass panels, metal plates, and ceramic surfaces. As a professional manufacturer and supplier, we develop machines that adapt to different surface properties and coating requirements. Customers purchasing our machines can achieve consistent coating results on both flat and special-shaped materials.
