In modern furniture manufacturing, the roller coating machine has become one of the core pieces of equipment in the coating process. Compared to traditional manual spray painting, roller coating lines offer advantages such as high efficiency, high consistency, and low cost. However, many furniture factories overlook a crucial issue when introducing roller coating lines—factory space planning.
A roller coating line is not a single machine, but an automated production line composed of multiple machines. Its layout not only determines production efficiency but also affects safety, ease of maintenance, and the stability of finished product quality.
Therefore, before installing a roller coating line, the following must be clarified:
• Is the factory area sufficient?
• Can the production process run smoothly?
• Are the aisles and personnel operating spaces reasonable?
• Do the environmental conditions meet the equipment's operating requirements?
Only by fully planning the space can the performance of the roller coating machine be maximized.

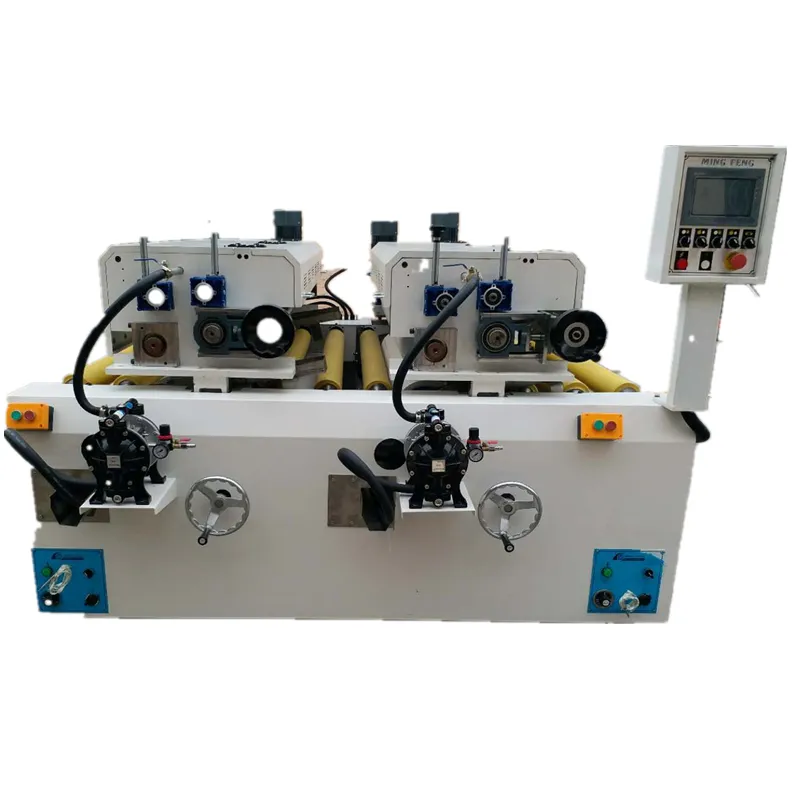

What equipment makes up a roller coating line?
A roller coating line is not a single roller coating machine, but a process chain formed by multiple functional machines connected in series. Common configurations are as follows:
1. Feeding Section
• Function: Transports the boards to the inlet of the roller coating machine in an orderly manner.
• Space Requirement: Approximately 2–3 meters (including the positioning platform).

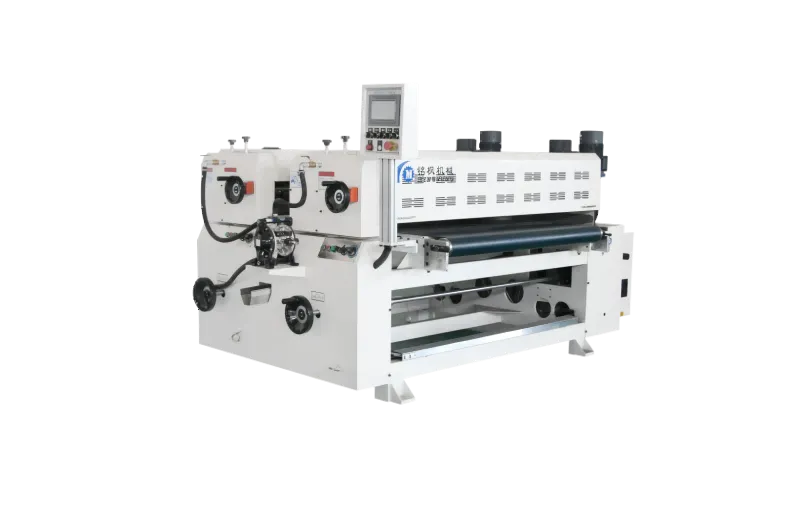

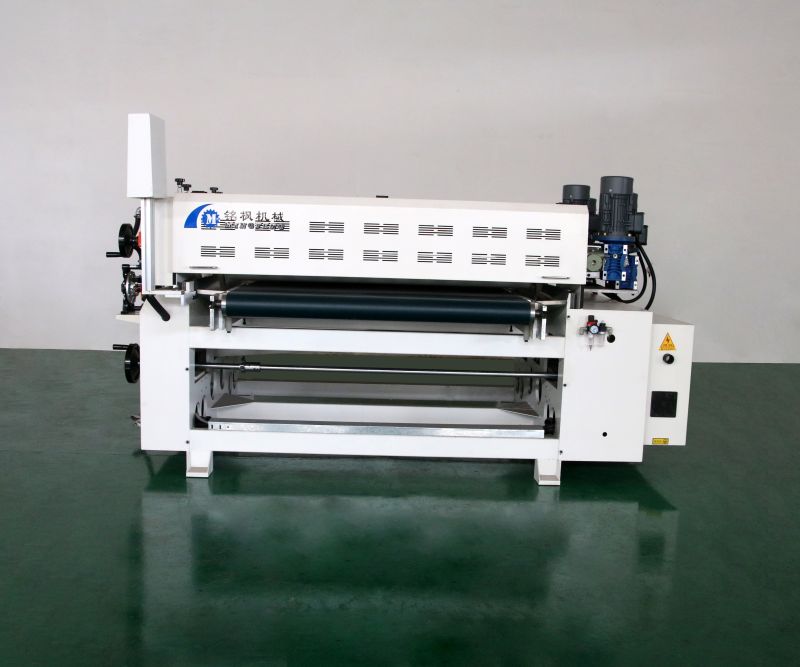

2. Roller Coating Machine

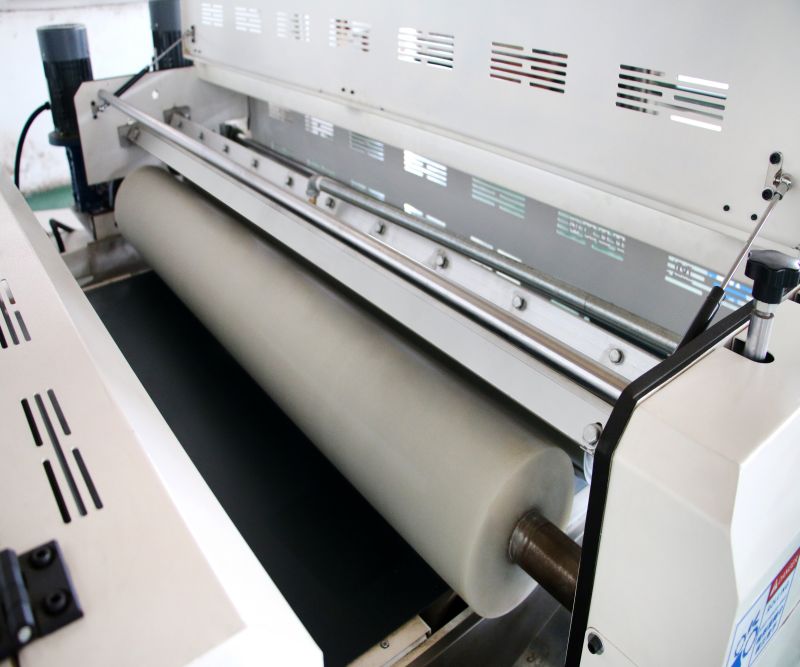

• Function: Applyes coating evenly to the board surface using a precision roller.
• Space Requirement: Approximately 2–3.5 meters long and 1.5–2 meters wide per unit.
3. UV Dryer
• Function: Cures the coating using ultraviolet light.
• Space Requirement: Approximately 3–4 meters long and 1.8–2.2 meters wide per unit.
4. Sanding Machine
• Function: Smooths the surface between coating layers.
• Space Requirement: Approximately 2–3 meters long and 1.5 meters wide.
5. Conveyor Section and Return System
• Function: Connects equipment and conveys sheet metal.
• Space Requirement: Approximately 1–2 meters per section, adjustable according to actual needs.
6. Dust Removal and Ventilation System
• Function: Maintains clean and safe air.
• Additional space required for ventilation ducts and equipment clearance.
Therefore, a complete roller coating line consists of at least a roller coating machine + UV curing machine + conveyor system + auxiliary units. Its total length and floor space depend on production scale and configuration.
How much space does a furniture factory typically need to install a roller coating line?
There is no single answer to this question, but we can make a scientific estimate based on industry experience and equipment specifications.
1. Single Machine Configuration (Basic Type)
Suitable for small furniture factories or sample lines, including only: Infeed section + 1 roller coating machine + 1 UV curing machine + Outfeed section.
Space requirements are approximately:
Length 10–12 meters, Width 4–5 meters, Height over 3 meters.
Suitable for applications with relatively small annual production and primarily single-layer coating.
2. Standard Configuration (Medium Scale)
A typical furniture factory roller coating line configuration is as follows:
• Infeed section (2 m)
• First roller coating machine (3 m)
• First UV curing machine (3 m)
• Intermediate sander (2.5 m)
• Second roller coating machine (3 m)
• Second UV curing machine (3 m)
• Outfeed section (2 m)
Total equipment length approximately 18–20 meters.
Considering operating space, aisle space, and safety distances, it is recommended to reserve at least: 25 meters long × 6 meters wide = approximately 150 square meters.
3. Multi-Layer Coating Production Line (Large Furniture Factory)
Large furniture manufacturers typically employ multi-layer coating structures, resulting in more complex configurations:
• 4 roller coating machines;
• 3–4 UV curing machines;
• Sanding and dust removal equipment;
• Automated loading, unloading, and return system.
The total length of this type of production line is approximately 35–40 meters. Considering personnel aisles, maintenance corridors, control cabinets, and ventilation ducts, the recommended total floor space is no less than: 45 meters long × 8 meters wide = approximately 360 square meters.
4. Space Planning Recommendations
Production Scale | Roller Coating Line Configuration | Recommended Floor Area |
| Small Furniture Factory | Single-layer roller coating | Approx. 80–120 m² |
| Medium Furniture Factory | Double-layer roller coating + curing | Approx. 150–200 m² |
| Large Furniture Factory | Multi-layer roller coating + automatic board return | Approx. 300–400 m² |
| High-End Custom Furniture Factory | Includes loading/unloading robotic arms | Approx. 500 m² and above |

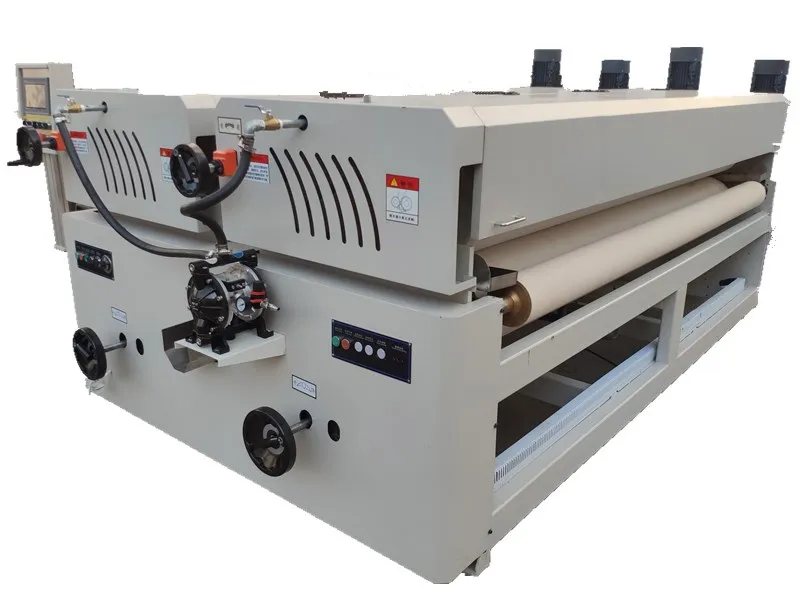

How does the size of the roller coating machine affect the space layout?
Different models of roller coating machines have significantly different dimensions, which is a key factor determining the overall length of the roller coating line.
Roller Coating Machine Types | Applicable Board Widths | Equipment Length | Width | Height | Recommended Operating Range |
| Small Machine (600mm) | Small furniture boards | 2.2 m | 1.4 m | 1.3 m | Single-sided operation: 0.8 m |
| Medium Machine (1300mm) | Standard door and cabinet boards | 3.0 m | 1.8 m | 1.4 m | Both-sided operation: 1 m each |
| Large Machine (1600mm) | Large-size panels | 3.5 m | 2.0 m | 1.5 m | Both-sided passage: 1.2 m each |
Therefore, while the roller coating machine itself does not occupy a huge area, the space requirements of the entire line increase significantly when the conveyor section and maintenance space are added.
What auxiliary spaces need to be reserved when installing a roller coating line?
When planning a roller coating line in a furniture factory, simply calculating equipment dimensions is insufficient. To ensure production safety and efficiency, the following auxiliary spaces must also be considered:
1. Operation and Maintenance Access Area
• 1–1.5 meters of clearance on each side of the main operating panel;
• Distance between the equipment's tail end and the wall ≥ 1.2 meters;
• At least 1 meter of space in front of the control cabinet.
2. Paint Preparation Area
• Placement of UV paint buckets and mixing equipment;
• Requires dust protection, sun protection, and good ventilation;
• Recommended area: 10–20 square meters.
3. Electrical Control and Distribution Room
• Placement of electrical cabinets and PLC system;
• 2–3 meters away from the main line;
• Independent isolation to prevent paint dust from entering.
4. Ventilation and Exhaust Channels
• The UV curing section releases a small amount of ozone;
• An exhaust duct, approximately 0.8–1 meter wide, should be installed at the top;
• It is recommended that the exhaust vent height be no less than 3 meters.
5. Material Transfer and Stacking Areas
• A buffer zone of 5–6 meters should be reserved for both loading and unloading of sheets;
• To facilitate forklift or manual operation.
The proper provision of these auxiliary areas can effectively reduce operational interference and avoid safety hazards during the coating process.
What are the requirements for the height and structure of the factory building for the installation of a roller coating line?
Besides length and width, the height and structure of the factory building are equally critical.
1. Factory Clear Height
• UV curing machines are typically about 1.6–1.8 meters high;
• Exhaust ducts, lighting, and supports need to be added;
• It is recommended that the factory clear height be ≥ 3.5 meters, ideally 4–5 meters.
2. Ground Bearing Capacity
• Roller coating machines typically weigh 1.5–2 tons;
• UV curing machines weigh approximately 2–3 tons;
• The ground bearing capacity should be no less than 600 kg/m², with a horizontal error ≤ 3mm.
3. Electricity and Air Supply
• Roller coating machines primarily use electricity;
• UV curing machines require a stable three-phase power supply;
• The pneumatic system requires a 0.6MPa compressed air source;
• Cables and air pipes should be routed through trenches or overhead racks.
How to Optimize Roller Coating Line Layout When Space is Limited in a Furniture Factory?
Many furniture factories have limited existing factory space, making it difficult to install a complete long line at once. In this case, space utilization can be optimized through the following methods:
1. Modular Layout
Divide the entire roller coating line into multiple functional modules (roller coating section, curing section, sanding section), arranged in an "L" or "U" shape to reduce linear footprint.
2. Add a return plate system
Use an automatic return plate machine to circulate the coating material back to the starting point, enabling multiple coating passes within a small space.
3. Layered cabling
Some factory buildings can utilize floor height to arrange the conveyor system in layers, achieving three-dimensional space utilization.
4. Shared ventilation and power supply systems
Multiple machines share the main air duct and cable trays, reducing cabling space.
Through these strategies, even in limited space, roller coating machines can be installed efficiently to meet production needs.
Why do roller coating machines have higher space requirements than spray coating lines?
Although both are coating systems, roller coating lines are structurally more linear and precise, and have stricter space requirements.
Comparison Items | Roller Coating Line | Spray Painting Line |
| Number of Equipment | Multiple units connected in series | Relatively few |
| Operating Mode | Continuous conveyor | Intermittent conveying |
| Spatial Layout | Long line | Centralized |
| Height Requirements | ≥3.5 meters | ≥2.8 meters |
| Channel Space Reserves | Operating areas must be provided on both sides | Single-sided operation possible |
| Power Load | High energy consumption due to UV curing | Relatively low |
Therefore, in the initial factory planning stage, the length, width, height, and auxiliary system space of the roller coating line should be fully assessed to ensure a scientific and rational overall layout.
