How Many Machines Are Needed to Install a Roller Coating Line?

In modern furniture manufacturing, roller coating lines have become a core process for automated surface coating production. Whether it's wooden doors, flooring, cabinet panels, MDF, or decorative panels, companies want to achieve automated painting, uniform coating, and rapid curing through a high-efficiency roller coating production line to ensure stable product appearance quality, high production efficiency, and low labor costs.

However, many furniture companies encounter a key question when preparing to build a coating production line:

"How many machines does a furniture factory need to install a roller coating line?"

This question seems simple, but it actually involves multiple technical aspects such as the process flow planning, equipment configuration, capacity targets, and product characteristics of the entire production line. This article will systematically explain the equipment composition, main machine models, number of machines, and functional logic of a furniture factory's roller coating line, helping you fully understand the configuration structure of a standard roller coating line.

Why do furniture factories need to install roller coating lines?

In traditional furniture surface spraying, manual operation is abundant, environmental pollution is heavy, paint waste is significant, and product consistency is poor. To address these issues, an increasing number of furniture factories are choosing to build automated roller coating lines.

The core advantages of roller coating lines include:

• High efficiency – Automated continuous production eliminates manual painting and drying time;

• Uniform paint film – Precision roller coating machines control coating thickness;

• Paint savings – Paint utilization rate can reach over 95%;

• Environmental friendliness and safety – Low VOC emissions, better meeting environmental standards;

• Strong product consistency – Extremely high gloss, thickness, and color stability.

Therefore, roller coating lines are a key equipment system for furniture manufacturers to achieve "high efficiency, high quality, and automation."

What is the compositional logic of a furniture factory's roller coating line?

A complete furniture coating production line is not just one roller coating machine. It is an automated system composed of multiple machines with different functions connected in an orderly manner according to the production process.

The entire production process generally includes the following five main stages:

• Substrate preparation stage – Surface smoothing and cleaning of the boards before they enter the production line;

• Coating stage – Even coating using a roller coating machine;

• Curing stage – Rapid curing using UV lamps, IR lamps, or hot air;

• Sanding stage – Smoothing the paint film using a sander;

• Surface finishing stage – Applying topcoat or special effects using an automated painting machine.

Each stage is completed by a set of machines, forming a complete roller coating production line.

How many machines are typically needed for a standard roller coating line in a furniture factory?

Depending on the product type and coating requirements of different companies, a furniture roller coating line typically requires 8 to 15 machines to form a stable and efficient production system. The key equipment required for each process will be analyzed below.

What equipment is needed for the substrate pretreatment stage?

Before coating, the boards must undergo surface smoothing and dust removal; otherwise, the adhesion and smoothness of the coating will be easily affected.

1. Wide-Width Sander (Sanding Machine)

• Function: Used for preliminary sanding of raw materials, removing burrs, ripples, and indentations to achieve a smooth surface.

• Recommended Configuration: 1-2 sanders with different grit sizes (coarse sander + fine sander).

The sander is the starting point of the roller coating line and is fundamental to paint film adhesion.

2. Dust Collector or Electrostatic Dust Removal System

• Function: Removes residual dust and particles after sanding, preventing dust from being introduced into the roller coating machine.

• Recommended Configuration: 1 full-width automatic dust collector.

What machines are needed in the roller coating stage?

The roller coating stage is the core of the roller coating line, mainly using multiple roller coating machines to achieve multi-layer coating processes, such as sealing primer, putty layer, primer, and topcoat.

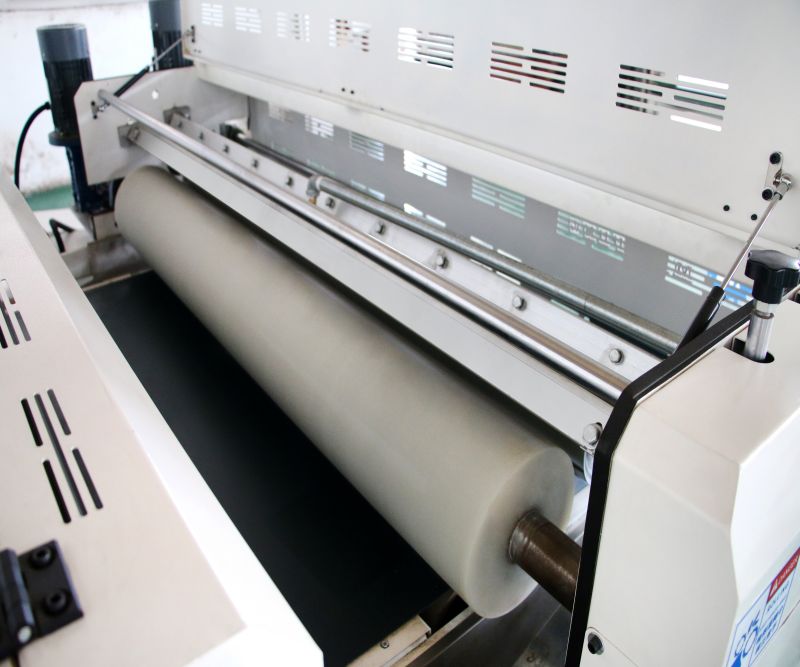

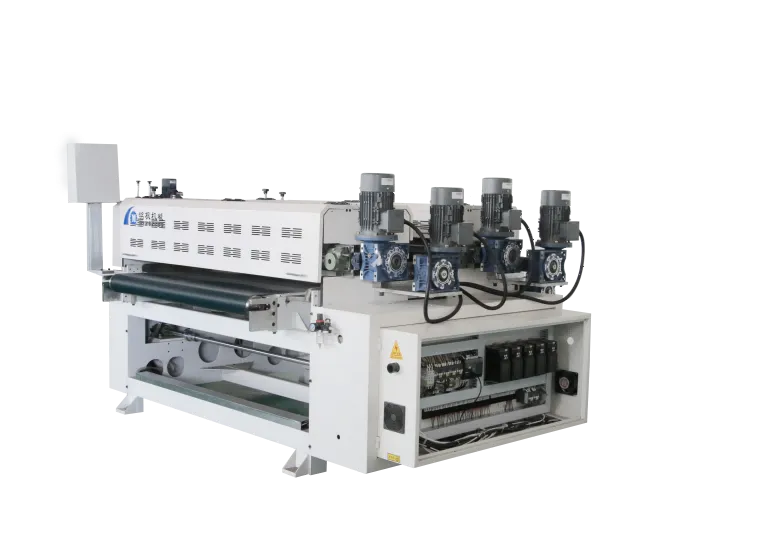

1. Roller Coating Machine (Sealing Primer Machine)

• Function: Applyes the first coat, sealing the wood grain or pores of the board, providing a smooth base for subsequent painting.

• Quantity: 1 unit.

• Note: This machine has a large coating volume; generally used with low-speed operation to ensure penetration.

2. UV Roller Coating Machine (Primer Machine)

• Function: Applyes the primer layer by roller, providing adhesion and hiding power.

• Quantity: 1-2 units, depending on coating thickness and color requirements.

• Note: Usually requires a UV curing lamp after primer roller application.

3. Topcoat Roller Coating Machine

• Function: Applyes the final coat of varnish or colored decorative coating, ensuring surface gloss and abrasion resistance.

• Quantity: 1 unit.

• Note: Generally used with high-gloss or matte paints.

What machines are needed for the curing stage?

After each coat, curing equipment is needed to allow the paint to form a film, dry, and harden. Commonly used curing equipment includes:

1. UV Curing Machine

• Function: Instantly cures UV coatings using ultraviolet light. It is the core drying equipment in a roller coating line.

• Quantity: Typically, one UV curing machine is required after each roller coating machine; the entire line generally needs 3-4 machines.

• Note: The power of the UV curing lamp is related to the color and thickness; dark paints require high-energy lamps.

2. IR Preheater/Hot Air Dryer

• Function: Used for leveling and initial drying of solvent-based or high-viscosity coatings.

• Quantity: 1 unit is sufficient.

What machines are needed for sanding and intermediate treatment stages?

Although the paint film after roller coating is smooth, one or more sanding processes are usually required to obtain higher adhesion and surface smoothness.

1. Sander (Fine Sander)

• Function: Sands the primer layer to make the surface smooth and remove small particles and unevenness.

• Quantity: 1-2 units.

• Description: Can be equipped with a vacuum dust collection system to maintain a clean painting environment.

2. Automatic Dust Removal Machine

• Function: Dust removal and cleaning after sanding to prevent dust contamination of the topcoat.

• Quantity: 1 unit.

What machines are needed for the topcoat and special effects stages?

In some furniture products, in addition to using a roller coating machine to apply the primer, an automated painting machine is needed to complete the topcoat layer or the spraying of special visual effects on the roller coating line.

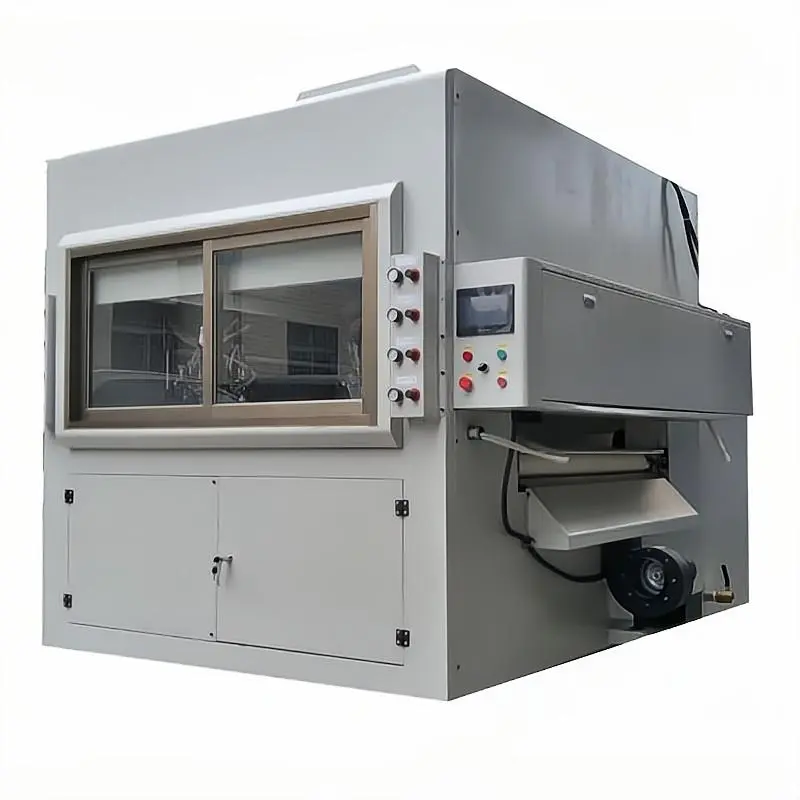

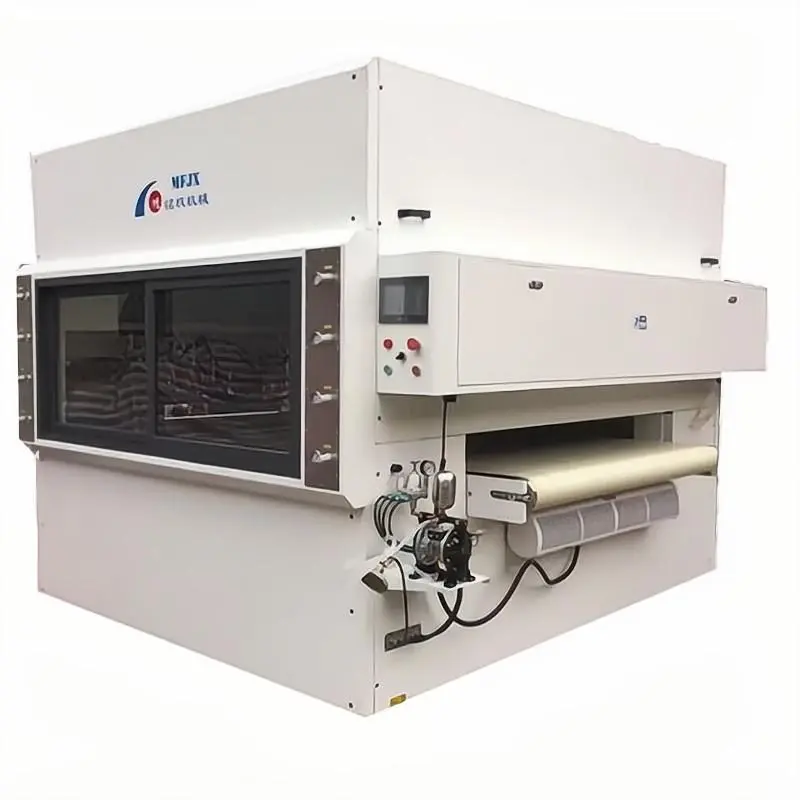

1. Automated Painting Machine

• Function: Used for applying clear topcoats, matte finishes, or special textured finishes, suitable for complex colors or high-gloss effects.

• Quantity: 1 unit (2 units can be selected for alternating use depending on the process).

• Description: An automated painting machine can spray a uniform atomized layer, which is a useful supplement to the roller coating process.

2. Spray Drying Machine / Constant Temperature Drying Oven

• Function: For non-UV coatings (such as PU, NC), hot air drying accelerates the curing process.

• Quantity: 1 unit.

What are the conveying and auxiliary systems in a furniture roller coating line?

In addition to the main coating equipment, a complete roller coating line also needs auxiliary equipment such as conveying, positioning, steering, and return systems.

1. Conveyor Belt System

• Function: Connects various devices, ensuring continuous conveying of boards;

• Quantity: Configured according to the length of the production line, generally 4-8 conveyor belts.

2. Automatic Board Turning Machine

• Function: Automatically turns boards during multi-sided coating, reducing manual intervention;

• Quantity: 1-2 units (depending on double-sided roller coating requirements).

3. Receiving and Feeding Machines

• Function: Automatically feeds and collects materials, improving production continuity and safety.

• Quantity: 1 unit each.

Standard Equipment Configuration Reference Table for Furniture Roller Coating Lines

Total Equipment Quantity: Approximately 10-15 units, depending on the number of process layers and output.

What factors should be considered when configuring a furniture factory's roller coating line?

When planning a roller coating line, furniture factories should plan the equipment combination and quantity from the following four dimensions:

• Product Structure: Such as whether it is flat board, wood veneer, MDF, etc.

• Coating Requirements: Whether high-gloss, matte, or staining processes are required.

• Coating System: UV paint systems can be configured with UV roller coating machines throughout the line; if it is a PU or NC paint system, drying equipment needs to be added.

• Capacity Planning: The higher the daily output, the more machines and the longer the curing zone need to be.

Only through comprehensive evaluation can the specific number and type of machines for a roller coating line be scientifically determined.

Number of Machines for a Furniture Factory Roller Coating Line

The number of machines required for a standard furniture roller coating production line is between 10 and 15. This includes:

• Roller coating machines: 3-5 units (sealing primer machine, primer machine, topcoat machine);

• Sanding machines: 2-3 units (pre-treatment sanding + fine sanding);

• UV curing machines: 3-4 units (one after each coating layer);

• Automated painting machines: 1-2 units (for topcoat or special color layers);

• Conveying and auxiliary systems: Several (feeding, dust removal, plate turning, material collection, etc.).

Roller coating machines, automated painting machines, and sanding machines are the "three core pieces of equipment" in the entire roller coating line, determining the film-forming effect, surface gloss, and smoothness of the product.

By scientifically planning the number of equipment and the process flow according to production needs, furniture factories can achieve efficient, stable, and energy-saving automated coating production goals for their roller coating lines.
