In the modern furniture manufacturing and wood coating industry, UV curing technology is becoming increasingly popular due to its advantages such as high efficiency, environmental friendliness, and rapid film formation. In particular, the use of UV paint drying machines has significantly improved the efficiency and quality of furniture surface treatment.
For many people considering using UV technology, "How long does it take for a UV paint drying machine to dry furniture?" is the most crucial and common question.
In fact, the drying speed of a UV paint drying machine depends on several variables, such as the paint formulation, UV lamp power, furniture material, and film thickness.
To help users correctly understand drying time and related working principles, this article will comprehensively analyze the factors affecting drying speed and provide professional advice, allowing you to achieve the best curing results in actual production.

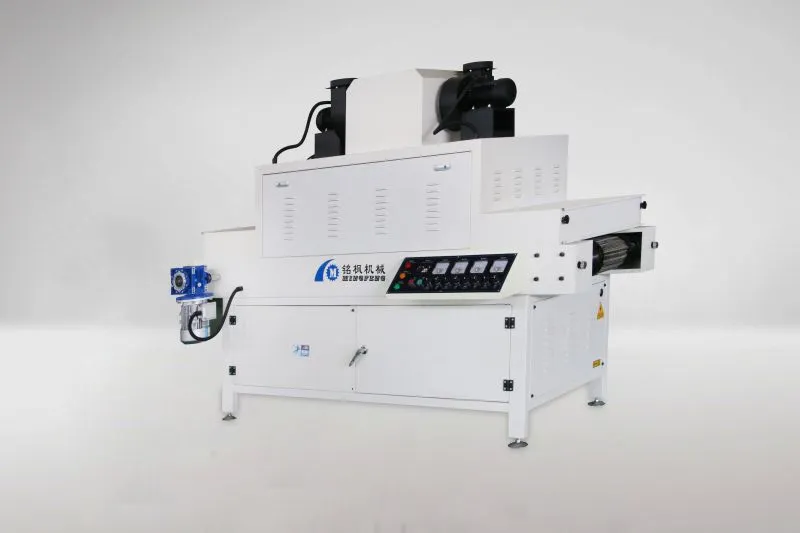

What is a UV paint drying machine, and why can it achieve rapid drying?
Traditional baking paint usually relies on heat to evaporate solvents, while the curing mechanism of UV paint is completely different: it uses ultraviolet light to trigger photoinitiators in the paint, causing the paint to rapidly cross-link and form a film.
The Core Principle of a UV Paint Drying Machine
UV paint drying machines primarily rely on the following steps to achieve curing:
1). Ultraviolet Irradiation
UV lamps (commonly mercury lamps, LED-UV lamps, etc.) emit ultraviolet light of a specific wavelength.
2). Energy Absorption by Photoinitiators
UV paints contain photosensitive substances; these photoinitiators undergo degradation or activation upon exposure to ultraviolet light.
3). Rapid Resin Crosslinking
The initiator initiates free radical or cationic polymerization reactions, causing the coating to cure into a film instantly.
This process is an instantaneous chemical reaction, therefore UV paint drying machines can achieve curing in seconds, far faster than traditional thermal curing methods.
Why is the furniture industry inseparable from UV paint drying machines?
• Improved coating efficiency
• Reduced energy consumption
• Shortened production cycle
• Improved surface hardness and abrasion resistance
• Suitable for continuous production line operations
Because of these advantages, UV paint drying machines have become an indispensable piece of equipment in the furniture coating industry.
How long does a UV paint drying machine typically take to dry furniture?
The curing time for most UV paint drying machines is typically between 1 and 10 seconds.
However, this is a range, not a fixed value. Actual drying time will vary depending on conditions. Different equipment and processes can lead to significant differences in curing speed.
Standard UV Curing Time Reference (Typical Range)
The following data applies to common furniture coating scenarios:
Furniture Materials | UV paint drying machine curing time (reference) |
| Solid wood surface | 2–8 seconds |
| MDF (Medium-density fiberboard) | 1–6 seconds |
| Wood veneer or thin board | 1–4 seconds |
| High-gloss UV topcoat | 3–10 seconds |
| Primer UV cured | 1–5 seconds |
The above are common industry ranges, not absolute values. Actual results may vary due to dryer parameters and UV paint formulations.
Why does the drying speed of UV paint drying machines vary so much?
Although UV curing technology is very fast, different process conditions directly affect drying time.
The following lists the main influencing factors, each of which determines the curing efficiency of a UV paint drying machine.
What factors affect the drying time of a UV paint drying machine?
1. Is the type and power of the UV lamp sufficient?
UV paint drying machines typically use the following types of lamps:
• High-pressure mercury lamps (traditional UV lamps)
• LED-UV lamps
• Metal halide lamps
Different lamp types have different radiation intensities, directly affecting the curing speed. For example:
• Traditional high-pressure mercury lamps: Suitable for most UV coatings, fast curing speed.
• LED-UV lamps: Low energy consumption, long lifespan, but require more precise paint formulation.
If the UV lamp power is low, the curing time may extend from 1 second to more than 5 seconds.
2. Is the UV paint formulation suitable?
Different brands of UV paints contain different concentrations of resin and photoinitiator. For example:
• Higher photoinitiator content → Faster curing
• Thicker UV coating → Slower curing
• Inappropriate formulation design → May result in incomplete curing.
Therefore, the quality of the formulation has a critical impact on the UV curing speed.
3. Does the furniture material absorb or reflect light?
The physical properties of the substrate also affect curing:
• Dark wood absorbs more light → weaker UV penetration → slower curing
• Light-colored or highly reflective materials → stronger UV reflection → faster curing
• Porous materials (such as MDF) → different coating absorption → slightly different curing time
4. What should the thickness of the UV coating be?
The thicker the coating, the less UV light can penetrate, and the longer the curing time will be.
Examples (typical trends):
• 10–20 μm → 1–2 seconds to cure
• 40–80 μm → 2–6 seconds
• 100 μm and above → may require 6–10 seconds or even longer
5. What should the conveyor belt speed be set for the UV paint drying machine?
The conveyor belt speed determines the time the furniture remains under the UV lamp.
• High speed → Short dwell time → Incomplete curing
• Slow speed → Long dwell time → More thorough curing
Therefore, curing time is determined not only by the lamps but also by the equipment parameter settings.
6. Is the irradiation angle of the UV paint drying machine reasonable?
Furniture often has edges, corners, inclined surfaces, or three-dimensional structures. If the UV lamps are not arranged properly, it will cause:
• Insufficient curing in shaded areas
• Surface curing but incomplete curing at the bottom
• Requires multiple irradiations to complete curing
Therefore, the design of the UV lamp position directly affects drying efficiency.
Can a UV paint drying machine achieve true "instant curing"?
Many manufacturers advertise that UV curing can achieve "instant curing." From an industry perspective, this claim is not an exaggeration. Reasons include:
UV coatings belong to a photocuring system
• The polymerization reaction is completed almost instantaneously
• It does not rely on heat evaporation
• The reaction is triggered by light irradiation
Theoretically, a UV paint drying machine can indeed achieve surface drying in milliseconds. However, this does not equate to complete curing.
Surface Dry vs. Fully Dry
• Surface Dry: The surface appears hardened.
• Fully Dry: The interior is fully cross-linked, reaching its final hardness.
If the coating thickness is large, some reactions may take several seconds to tens of seconds to complete completely. Therefore, the theoretical "instant curing" usually refers to the surface.
How to determine if furniture is completely dry after using a UV paint drying machine?
Many users know the curing time is short but are unsure how to determine if it is fully cured.
Here are a few reliable methods:
1). Observe the surface hardness
UV-cured paint films have very high hardness, typically reaching 2H–4H.
Lightly press the surface; if no fingerprints are left, it generally indicates good curing.
2). Perform a cross-cut test
Use a blade to score a cross-section and check if the paint film is firm and does not easily peel off.
3). Touch test
A fully cured UV paint film feels smooth and not sticky to the touch.
4). Alcohol test
Wipe the surface with a small amount of alcohol. If the paint film shows no change, it is well cured.
If the furniture remains soft and sticky, it indicates insufficient curing, requiring:
• Adjusting the UV paint drying machine power
• Reducing the conveyor belt speed
• Changing the paint formulation
Why do some furniture pieces dry faster in a UV paint drying machine?
The core reasons for this typically include:
• Using high-power UV lamps (e.g., 120W/cm or higher)
• Thinner coating
• Smooth, reflective wood surface
• Higher photoinitiator content in the formulation
• Using a combination of LED-UV and traditional UV lamps (dual-curing solution)
These factors make the curing machine more efficient, resulting in very rapid drying.
Does the structure of different furniture affect the drying speed of a UV paint drying machine?
Yes, and significantly.
1. Flat Furniture
Such as tabletops and wardrobe doors:
Even UV light irradiation → fastest curing (1–5 seconds).
2. Furniture with polygonal structures
e.g., chairs, tables with uniquely shaped legs:
Corners are present → require multi-angle irradiation → longer curing time (3–10 seconds).
3. Furniture with textured surfaces
UV lamps require higher power or multiple irradiations to cover the grooves → longer curing time.
Therefore, different furniture shapes determine the UV lamp's irradiation coverage efficiency and drying speed.
How to shorten drying time when using a UV paint drying machine?
To further improve efficiency in production, the following optimizations can be made:
1. Increase UV lamp power or use more lamp tubes
Higher power results in faster curing, but care must be taken not to over-irradiate, which can cause the paint film to become brittle.
2. Use UV paint compatible with the equipment
Highly compatible paints can significantly improve curing speed.
3. Adjust conveyor belt speed
Generally, a higher speed is set while ensuring complete curing.
4. Optimize the placement of furniture pieces
Maximize the UV lamp irradiation angle as much as possible.
5. Controlling Ambient Temperature
Suitable temperature improves curing efficiency.
These methods can significantly reduce curing time and maintain stable furniture paint film quality.
Is a UV paint drying machine suitable for all furniture painting processes?
While UV drying technology is highly efficient, it is not suitable for all processes.
Processes best suited for UV paint drying machines:
• UV primer
• UV topcoat
• UV coating for flat furniture
• High-gloss, spray-free UV panels
• Coating of wooden doors, cabinet doors, and tabletops
Situations where a UV paint drying machine is not suitable:
• Wood wax oil requiring deep penetration
• Certain matte or semi-matte coatings
• Certain metallic or special effect paints
• Extra-large curved furniture (difficult to irradiate evenly)
Therefore, before choosing a UV paint drying machine, you must confirm whether your process is compatible with UV processes.
