In the wood coating industry, UV curing technology is widely used for surface treatment of furniture, flooring, cabinets, and decorative panels due to its high efficiency, environmental friendliness, and excellent coating effect. In this process, the UV Dryer Machine is the core equipment for achieving rapid curing.
However, many production operators often wonder: How long after painting can wood enter the UV Dryer Machine?
This seemingly simple time interval directly determines the adhesion, smoothness, and final curing quality of the paint film. This article will systematically analyze this issue, providing in-depth analysis from the perspectives of paint characteristics, dryer principles, environmental factors, and process control, allowing you to fully understand the optimal time for painted wood to enter the UV Dryer Machine.
Why Can't Painted Wood Immediately Enter the UV Dryer Machine?
First, it's important to understand that not all painted wood can be immediately sent to the UV Dryer Machine.
The main function of the UV Dryer Machine is to use ultraviolet radiation to cause a chemical reaction in the photoinitiator in the UV-curable paint, thereby rapidly hardening the coating. However, if the coating surface is still flowing or unleveled, directly entering the UV Dryer Machine will cause the following problems:
1. Surface Defects
Unleveled paint films will exhibit ripples, bubbles, pinholes, or orange peel texture under the strong light and heat of the UV lamp.
2. Reduced Coating Adhesion
Curing before the paint film has stabilized will lead to uneven internal cross-linking, resulting in a weak bond between the cured layer and the wood surface.
3. Incomplete Curing
If the underlying layer still contains solvents or moisture, UV light cannot fully penetrate, leading to a "surface-dry, interior-sticky" phenomenon.
Therefore, a suitable "leveling time" and "initial evaporation time" should be given to the paint film after painting to ensure it is in a suitable state before entering the UV Dryer Machine.
What is the ideal waiting time for wood after painting before entering the UV Dryer Machine?
Depending on the type of coating and environmental conditions, wood should be left to stand for 5 to 15 minutes after painting before entering the UV Dryer Machine. This range is considered the industry-standard ideal timeframe.
1. UV-Curable Paint (Pure UV Paint)
If using a 100% solids UV-curable paint, no solvent evaporation is required. After spraying, allow it to stand for approximately 3–5 minutes before placing it in the UV Dryer Machine.
This time is primarily for film leveling and bubble elimination.
2. UV Primer or Mixed Paint (Containing a Small Amount of Solvent)
For UV primers containing thinner, allow them to stand for 10–15 minutes to allow the solvent to fully evaporate, preventing residual gases from forming pinholes during UV curing.
3. Influence of Ambient Temperature and Humidity
If the operating environment is cold (below 20°C) or humid (above 70% RH), the waiting time should be extended to approximately 20 minutes to ensure film stability.
In summary: The optimal time to place the paint film in the UV Dryer Machine is when it feels non-sticky to the touch, has a uniform gloss, and exhibits good leveling.
What is the working principle of a UV Dryer Machine?
To understand the necessity of the waiting time, it is essential to first understand the working principle of a UV Dryer Machine.
A UV dryer machine uses ultraviolet light of a specific wavelength (typically 365nm or 395nm) to excite the photoinitiator in the coating, causing it to decompose and generate free radicals. This initiates the polymerization reaction of acrylic resins, forming a hard and dense coating layer.
The curing process in a UV dryer machine typically includes three stages:
• Surface curing stage: Ultraviolet light first irradiates the surface of the coating, forming a hard shell.
• Deep curing stage: Light penetrates the interior of the coating, promoting overall cross-linking.

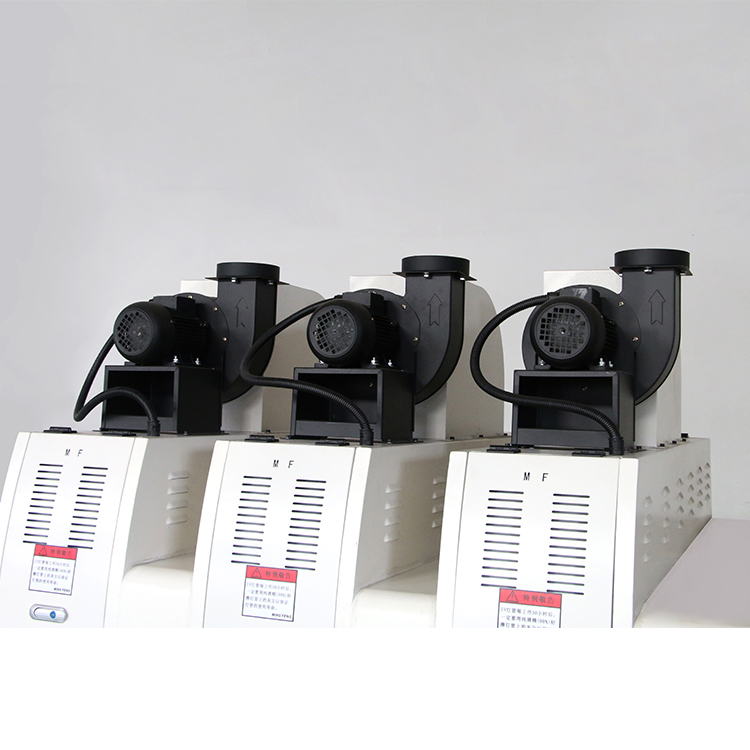

• Cooling and setting stage: A cooling air system lowers the surface temperature, stabilizing the coating.
If the coating film enters the UV dryer machine still unleveled or solvent-containing, it will affect the uniformity of light penetration and polymerization reaction, leading to incomplete curing or surface defects.
Why does the waiting time affect the final curing effect of the coating?
The waiting time is essentially the transition period between the physical rheological properties of the coating and the photochemical reaction.
Several important changes occur between the completion of spraying and the time the coating enters the UV Dryer Machine:
1. Self-leveling process of the paint film
After spraying, the paint flows naturally on the wood surface, filling in tiny depressions and making the surface smoother.
2. Bubble release and solvent evaporation
Especially in the primer layer, air bubbles may be trapped during the atomization process of the spray gun. A short period of settling helps these gases escape, preventing pinholes after UV curing.
3. Surface tension equalization
The reactive diluents and reactive monomers in the coating need a certain amount of time to distribute evenly, which helps the coating polymerize uniformly.
If the waiting time is too short, the above process cannot be completed, leading to a decrease in coating quality; conversely, if the waiting time is too long, the surface will dry prematurely, which will also affect the penetration of UV light.
What are the effects of temperature and humidity on the time to enter the UV Dryer Machine?
1. Temperature Factors
In low-temperature environments, the viscosity of the paint increases, slowing down the leveling speed. It is recommended to extend the waiting time to 15–20 minutes.
At high temperatures (above 30°C), solvent evaporation accelerates, and the waiting time can be shortened to 5–8 minutes.
2. Humidity Factors
When the air humidity is too high, the paint film surface may absorb moisture or develop a "white haze." A dehumidifier should be used to maintain the humidity between 50–60% RH before UV curing.
If the paint is placed in a UV dryer machine immediately when the humidity is too high, surface fogging or adhesion may easily occur.
3. Ventilation Conditions
Moderate airflow can accelerate solvent evaporation, but the wind speed should not be too high, otherwise it will cause the coating surface to crack or develop runs.
The ideal ambient wind speed should be controlled at 0.2–0.3 m/s.
What temperature should the UV dryer machine be kept at?
Although the UV dryer machine primarily uses "light curing," it generates some heat during operation.
Generally, the internal temperature of a UV dryer machine should be maintained between 50°C and 60°C to ensure the photoinitiation reaction proceeds smoothly without causing the wood to warp due to heat.
• If the temperature is below 40°C, the photochemical reaction rate decreases, resulting in incomplete curing.
• If the temperature is above 70°C, the surface moisture of the wood may evaporate too quickly, leading to cracking of the paint film.
Therefore, controlling the UV dryer machine temperature is closely related to the time of entry into the machine. Only when the painted wood film is stable and shows no signs of flow can ideal curing be ensured.
How to determine if wood is ready to enter the UV dryer machine after painting?
The key to this judgment is a combination of observation and touch. Operators can use the following methods to make this judgment:
• Visual judgment: The paint surface should have a uniform gloss, without obvious runs or bubbles.
• Touch test: Lightly touch the surface; it should not feel sticky, but should still retain a slight softness.
• Time control: Record the time from the completion of spraying to entry into the UV dryer machine, and standardize the control by combining this data with temperature, humidity, and other parameters.
• Reflection Inspection: Shine a light on the surface and observe whether the light reflection is uniform. If there are no ripples, it is ready for curing.
These simple checks effectively prevent quality problems caused by entering the UV Dryer Machine too early or too late.
How much does different coating thickness affect the waiting time?
Coating thickness is another key factor affecting the drying machine entry time.
• Thin layer (10–20μm): Fast leveling speed; waiting time can be controlled within 5 minutes.
• Medium thickness (30–50μm): It is recommended to let it stand for 10 minutes to allow the coating film to stabilize.
• Thick film (60μm and above): Requires a standing time of 15–20 minutes to ensure complete venting of internal gases.
If a thick coating enters the UV Dryer Machine too early, light cannot fully penetrate, resulting in a "hard top and soft bottom" effect, affecting adhesion and abrasion resistance.
What are the consequences of extending or shortening the waiting time?
• Too short a waiting time: Causes flow marks, pinholes, and incomplete curing;
• Too long a waiting time: Premature curing of the surface layer, making it difficult for UV light to penetrate, resulting in poor coating adhesion;
• Proper waiting time: Smooth, defect-free paint film, and complete curing.
Therefore, the post-painting waiting time must be comprehensively matched with the UV dryer machine's light intensity, temperature, and paint formulation to achieve the best results.
