In the surface treatment industry, such as furniture, flooring, and decorative panels, the coating process often requires frequent changes of color or paint formula based on product style and process requirements. How to efficiently change colors and reduce downtime is a key focus for many production lines.
Among various coating methods, curtain coater machines are widely used due to their advantages such as uniform coating, high gloss, and high utilization rate. However, customers often ask a crucial question:
"How fast is the color change capability of a curtain coater machine?"
This article will systematically answer this question from multiple perspectives, including equipment structure, working principle, color change process, influencing factors, and optimization methods, helping you fully understand the actual performance of curtain coater machines in terms of color change efficiency.
What is a curtain coater machine? Why is it widely used in coating?

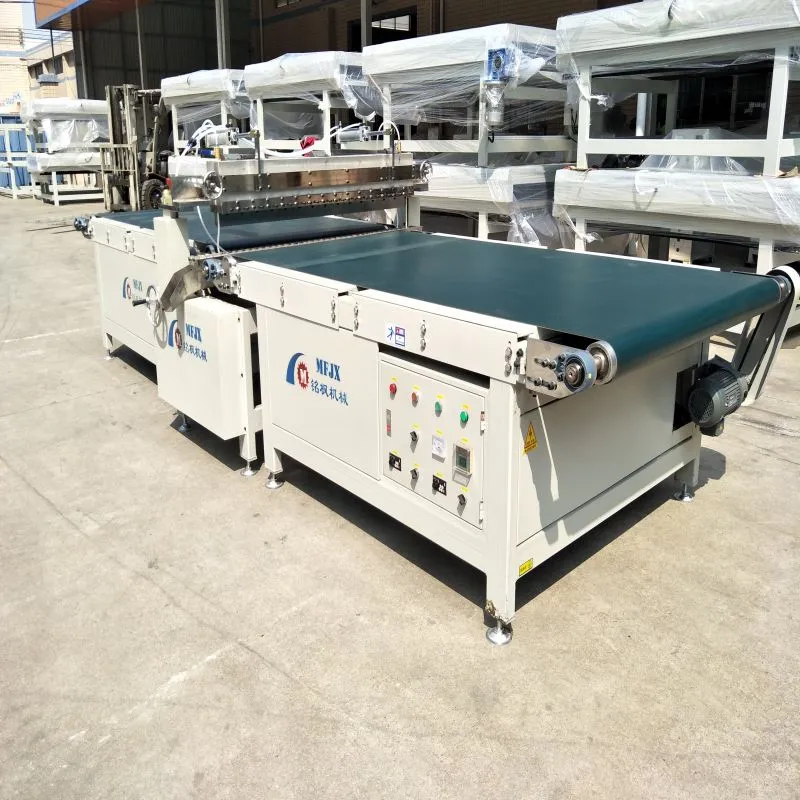

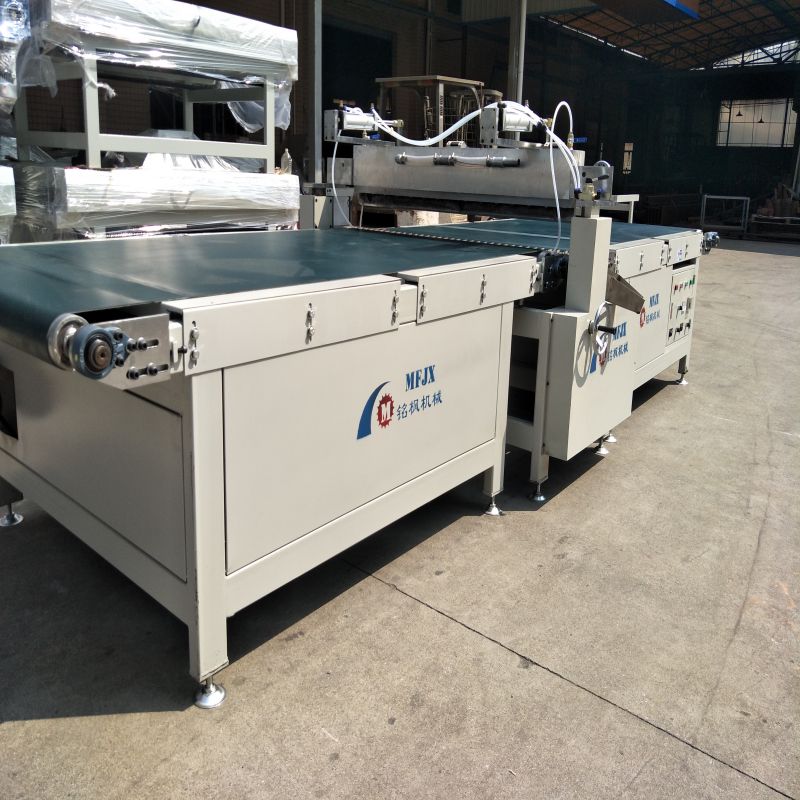

A curtain coater machine is a coating device that uses liquid paint to form a continuous "liquid curtain," utilizing gravity to evenly cover the workpiece surface with the paint.
Paint flows out from the overflow trough, forming a stable curtain. When a sheet or other flat workpiece passes through, its surface is completely covered, resulting in a smooth and uniform paint film.
Unlike traditional equipment such as roller coaters and spray coaters, it has the following significant advantages:
• Non-contact coating: The workpiece surface does not directly contact the equipment, avoiding roller marks or uneven spraying;
• High coating uniformity: The paint film thickness is more consistent than other methods;
• High paint utilization rate: Paint that does not fall onto the workpiece can be recycled;
• Wide applicability: It can be used with various systems such as UV paint, PU paint, and water-based paint;
• Convenient maintenance and high degree of automation.
For these reasons, curtain coater machines are widely used in the furniture industry, flooring manufacturing, decorative panels, door panels, plastic products, and electronic component surface treatment, among other fields.
The Working Principle and Paint Circulation System of a Curtain Coater Machine
To understand "how fast does a curtain coater machine change colors?", it is essential to understand its internal fluid system structure.

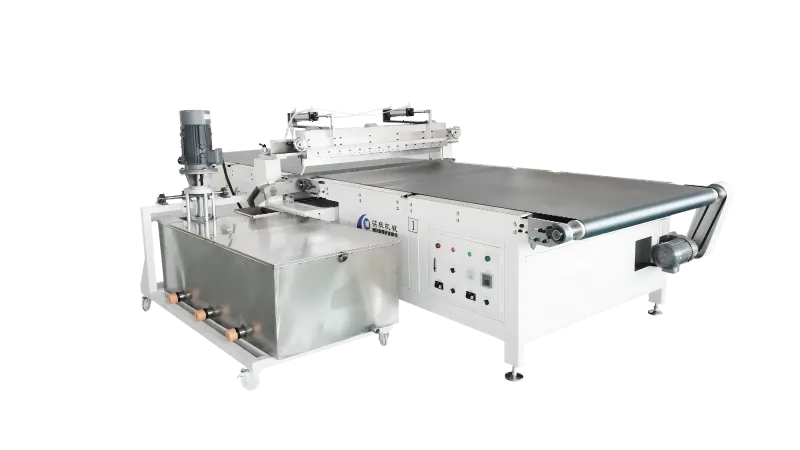

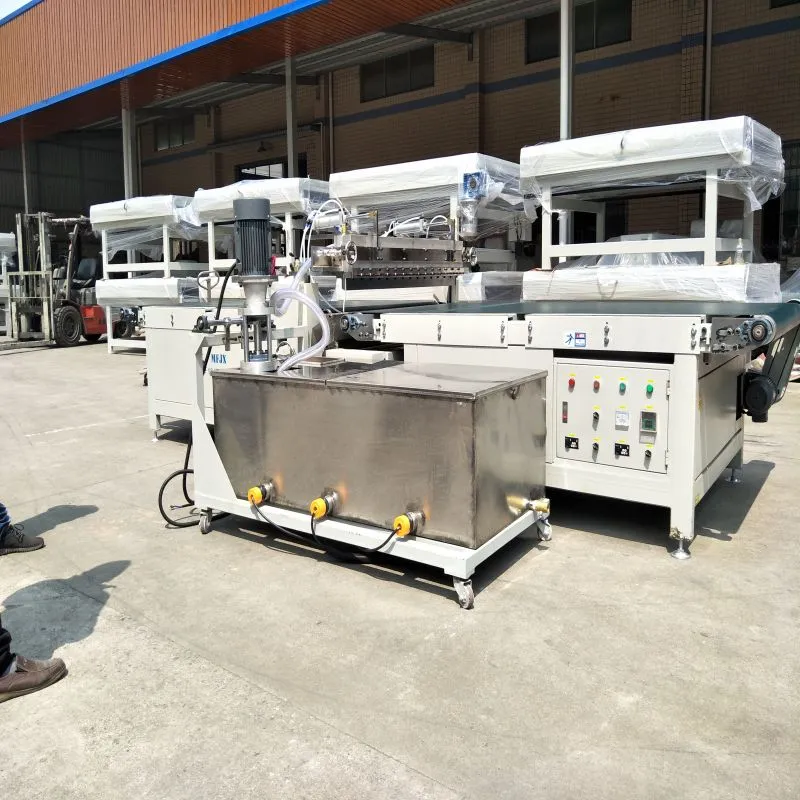

A typical curtain coater machine includes the following components:
• Paint supply system: Composed of a constant pressure pump, delivery pipelines, and regulating valves, it stably delivers paint to the overflow head.
• Overflow head (Curtain Head): The core component, where paint overflows from a slit to form a continuous curtain.
• Paint recovery system: Paint that has not contacted the workpiece is collected in a return trough and returned to the storage tank for reuse.
• Filtration and circulation system: Removes impurities through a screen or filter to ensure the purity and stable flow of the paint.
• Control system: Includes pump speed control, temperature control, and flow rate regulation.
Therefore, the paint flow in a curtain coater machine is a closed-loop circulation system. Because of this characteristic, the core challenge of color-changing operations lies in how to efficiently clean and replace the paint within the entire circulation system.
How fast is the color-changing speed of a curtain coater machine?
Structurally, curtain coater machines do indeed have higher color-changing efficiency than traditional spraying or roller coating, but the specific speed depends on various factors.
Generally speaking, under the same working conditions, the color-changing time of a curtain coater machine is typically 15-40 minutes, shorter than that of a spray painting machine (which usually takes over 60 minutes) and simpler than a multi-roller coating system.
But why is there a difference in color-changing efficiency?
Let's analyze it one by one.
Main factors affecting the color-changing speed of a curtain coater machine:
1. Paint circulation system design
The color-changing speed of a curtain coater machine is closely related to its internal structure.
The shorter the pipe and the smaller the pipe diameter, the less residual paint, and the faster the color change.
If the equipment is designed with an independent drain valve and quick-release connector, the old paint can be quickly drained.
High-end curtain coater machines usually use modular circulation pipes, which can significantly shorten the cleaning time.
2. Overflow tank shape and volume
The overflow tank is the part where the paint is most concentrated and is also the part that most needs cleaning during color changing.
The larger the volume, the more residual paint, and the longer the cleaning time.
Therefore, many equipment manufacturers adopt quick-release overflow troughs or tiltable structures, allowing for direct discharge of excess paint and significantly improving color-changing efficiency.
3. Paint Types
Different types of paint significantly affect color-changing speed:
• UV paint: Solvent-free, easy to clean, fast color-changing speed;
• Water-based paint: Requires special cleaning agents or water rinsing, takes slightly longer;
• PU paint, PE paint: High viscosity, prone to residue, requires thorough cleaning.
Therefore, in the furniture industry, if production mainly uses UV systems, the color-changing efficiency of curtain coater machines can be very ideal.
4. Standardized Operating Procedures
The experience of the operators and the degree of standardization of the procedures directly affect color-changing efficiency.
Professional operators can complete the following in a short time:
• Stop the machine and empty the old paint;
• Disassemble and clean the overflow trough;
• Rinse the circulation system;
• Add new paint;
• Adjust viscosity and flow parameters.
Standardized operation reduces unnecessary waiting and repeated adjustments.
5. Is a Quick Color Changing System Included?
Some high-end curtain coater machines are equipped with dual paint systems or quick-switching valve assemblies, enabling "one-click switching of paint lines," significantly improving color changing speed, sometimes even completing the process within 10 minutes.
Detailed Curtain Coater Machine Color Changing Process
To truly understand color changing efficiency, the complete operating procedure must be mastered. The following are the standard color changing steps (using a single-line system as an example):
1. Stop Paint Supply and Delivery
Turn off the pump and overflow tank supply, ensuring the liquid curtain completely stops.
2. Drain the System
Open the drain valve to drain any residual paint from the circulating system into a dedicated container.
3. Preliminary Cleaning
Use a matching thinner or cleaning solution to circulate and flush 1-2 times to remove most of the residue.
4. Disassemble and Clean the Overflow Tank
Remove the overflow tank, filter, and other components, and thoroughly clean them with a cloth or cleaning solution.
5. Reassemble the System
After reassembly, check that the seals and pipes are connected correctly.
6. Injecting New Paint
Add the new color paint, start the circulation pump, and adjust the flow rate and viscosity.
7. Trial Flow Adjustment
A new paint curtain forms. Observe the flowability and flatness of the curtain. Resume production after confirming there are no color differences or bubbles.
The entire process, when combined with a quick-release structure and a dedicated cleaning system, can usually be completed in about 20 minutes.
Advantages of Curtain Coater Machines Compared to Other Equipment in Color Changing
The overall efficiency of curtain coater machines in color changing is significantly better than that of spray and roller coating equipment.
Especially in UV systems, the paint does not require heating or evaporation, and there are no curing or residue issues during cleaning, thus resulting in faster color changing speeds.
What are the Key Factors Affecting the Color Changing Quality of Curtain Coater Machines?
Color changing not only needs to be "fast" but also "clean." If cleaning is not thorough, old paint residue will contaminate the new color, causing color differences or impurities.
The following are the key control points for maintaining color changing quality:
• Thoroughly clean the overflow tank and return pipes: especially the bottom and corner areas.
• Choose the right cleaning agent: Different coatings require different cleaning solutions. For example, UV paint can use a special thinner, while water-based paints can use deionized water or alcohol.
• Prevent cross-contamination: After cleaning, dry the system with compressed air to prevent residual solution from affecting new paint.
• Regularly maintain the filter: Prevent old paint from settling and clogging the system.
• Flow rate calibration: Recalibrate the flow rate after changing colors to prevent uneven coating thickness caused by viscosity differences.
Does the curtain coater machine need to be disassembled every time a color is changed?
Yes, it is recommended to thoroughly clean the overflow tank every time a color is changed to avoid contamination from old color residue. Some quick-release designs can complete disassembly and assembly within 5 minutes.
How much paint is wasted when changing colors?
Because the curtain coater machine's recycling system can recirculate the paint, paint loss is usually less than 3% of the total, which is more economical than roller coating and spray coating.
Can I change colors directly during production?
Not recommended. Unless the equipment has a dual-circulation system, forced switching will cause color mixing and affect surface quality.
Do I need to replace the filter when changing colors?
It is recommended to replace or clean the filter to ensure the new paint is clean and flows smoothly.
Is color changing faster when using a UV curtain coater machine?
Yes, UV paint systems are solvent-free, have good flowability, and are easier to clean, so color changing is usually faster.
