Furniture Painting: What Machines Are Used?

As a key branch of modern manufacturing, furniture manufacturing produces products that not only carry practical functions but also possess a high degree of decorative and artistic value. Painting is undoubtedly a crucial process in the furniture surface treatment process, directly determining the furniture's visual beauty, feel, durability, and market added value.

Paint quality is particularly crucial for wooden furniture, panel furniture, and high-gloss furniture, and determines the quality of the product. With accelerating production cycles, increasing customer demands for customization, and rising labor costs, traditional manual painting methods are no longer able to meet the production demands of modern furniture manufacturing.

Instead, a range of automated painting equipment, particularly CNC automatic painting machines with increasingly sophisticated technology, have gradually become the mainstay of the furniture industry.

This article systematically addresses the question, "What machines are used for spray painting in the furniture industry?" to help users clearly understand the practical application value of this type of equipment in the furniture industry.

What are the requirements for spray painting in the furniture industry?

Before discussing spray painting equipment, it is important to first understand the actual process requirements for furniture painting. The main goals of furniture surface treatment include:

1. Uniform color: minimal color variation and consistent batch-to-batch consistency;

2. Uniform coating: no paint buildup, no dripping, and no exposed base;

3. Strong adhesion: excellent adhesion to wood, panels, and other materials;

4. High film strength: scratch-resistant, moisture-resistant, and UV-resistant;

5. Environmentally friendly and safe: efficient paint application and low volatile matter emissions.

Based on these requirements, furniture painting equipment must possess the following features:

1. Precise and controllable spray path;

2. High coating uniformity;

3. Capability to handle irregular shapes and complex surfaces;

4. High degree of automation;

5. Ease of integration into assembly lines.

This is precisely why CNC automatic painting machines are widely used in the furniture industry.

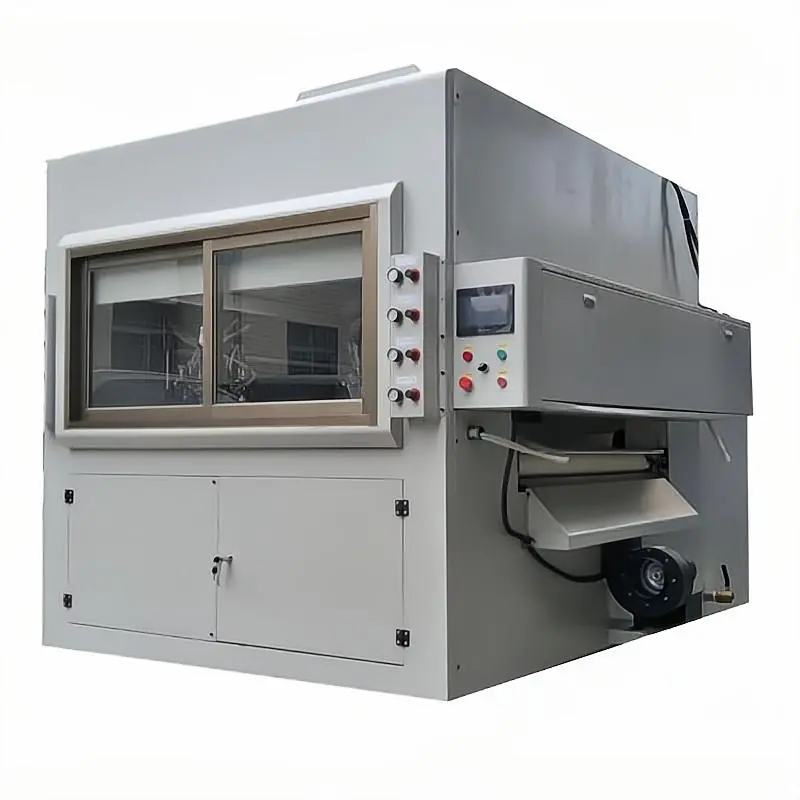

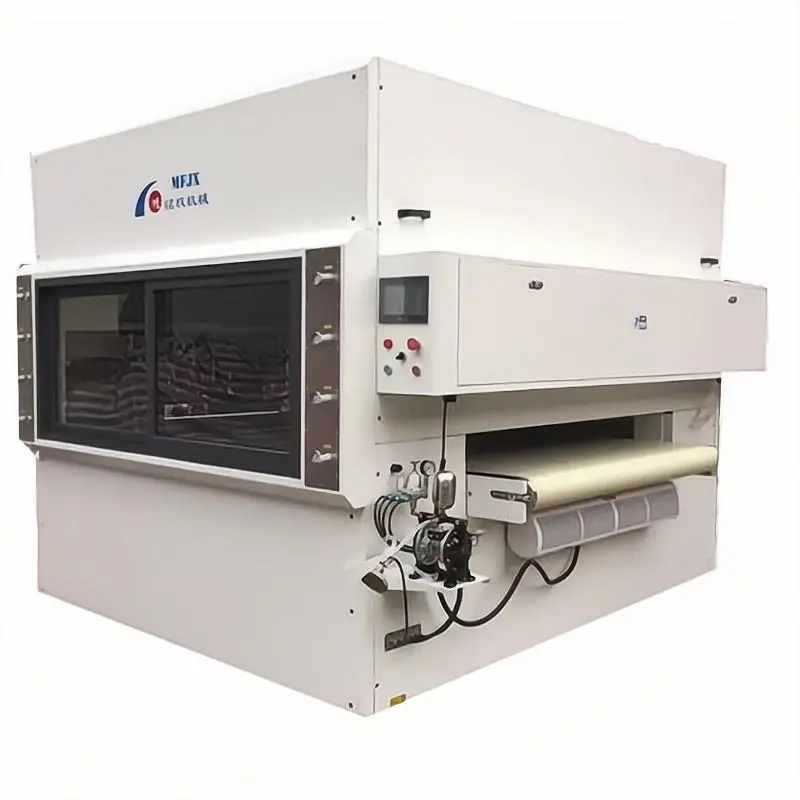

CNC automatic painting machine: The core equipment for furniture painting

1. What is a CNC automatic painting machine?

A CNC automatic painting machine uses a numerical control system to control the movement of the spray gun, enabling automated painting operations. Its core advantages include:

    · High-precision path control: Programmable 3D trajectories ensure precise painting;

    · Automated continuous operation: Suitable for mass production on an assembly line;

    · Highly consistent painting quality: Eliminates the large errors and instability associated with manual painting;

    · Strong adaptability: Applicable to a variety of wood, board, and irregularly shaped furniture products.

Particularly in the modern furniture manufacturing environment characterized by high paint and labor costs and stringent quality standards, the stability and efficiency of CNC automatic painting machines significantly outperform traditional painting equipment.

What types of painting equipment are used in the furniture industry?

Commonly used painting equipment in furniture manufacturing mainly includes the following categories:

As shown in the table above, CNC automatic painting machines are the only type of painting equipment in the furniture industry that combines the advantages of high-precision 3D control, automation, and strong adaptability. They are widely used in solid wood furniture, panel furniture, cabinet doors, decorative panels, and other applications.

Furniture Industry: What are the different types of CNC automatic painting machines?

1. Classification by Number of Axes

    · Three-Axis CNC Paint Sprayer (X/Y/Z)

Most common, suitable for general furniture pieces such as flat and three-dimensional pieces.

    · Four-Axis CNC Paint Sprayer (+R Rotary Axis)

Adds spray gun angle adjustment capability, suitable for finishing corners and special-shaped pieces.

    · Five-Axis or More Paint Sprayer

Used for highly complex furniture components with variable angles and large spatial displacement.

2. Classification by Workpiece Transport Method

    · Fixed-Station Type: The paint platform is fixed, suitable for spraying small pieces and batches.

    · Conveyor Line Type: The workpiece moves with a belt or chain, and the machine paints according to a cycle.

    · Rotary Table Type: Used for multi-station spraying, suitable for cycle-controlled processes.

    · Gantry Sliding Table CNC Machine: Large platform, suitable for whole panels and long pieces of furniture.

3. Classification by Number of Spray Guns

    · Single spray gun: High precision, suitable for fixed-point work or sample testing;

    · Multiple spray guns in parallel/staggered configuration: Improved efficiency, suitable for large-sized panels, door panels, etc.

4. Classification by Spray Media Supported

    · Paint (solvent-based or water-based);

    · UV coating (requires a UV curing system);

    · Clearcoat, topcoat, and primer combination sprayer (supports multiple sequential coats).

Furniture Spraying: What are the Advantages of a CNC Automatic Painting Machine?

Advantages of CNC Automatic Painting Machines for Furniture Spraying:

1. Uniform paint spraying and excellent coating consistency

2. Paint savings and improved utilization

3. Reduced labor costs and reduced health risks

4. Flexible program switching, supporting the production of furniture of various specifications

5. Easy integration into automated production lines, improving production line efficiency

1. Uniform paint spraying and excellent coating consistency

Thanks to program control and a constant speed trajectory, CNC automatic painting machines maintain consistent spray thickness and spray distance, effectively avoiding paint accumulation, missed coatings, and uneven coating caused by manual labor.

2. Save Paint and Improve Utilization

High atomization efficiency combined with precise path planning improves spray hit rates, significantly reduces paint waste, and reduces the need for post-processing sanding and touch-ups.

3. Reduce Labor Costs and Health Risks

Automated operations replace traditional manual labor, reducing reliance on skilled workers and avoiding the health risks of prolonged exposure to organic solvents and paint particles.

4. Flexible Program Switching Supports Multi-Specification Furniture Production

CNC program switching allows for rapid adaptation to furniture products of varying shapes and sizes, significantly improving the efficiency of mixed-product production.

5. Easy Integration into Automatic Lines, Improving Production Efficiency

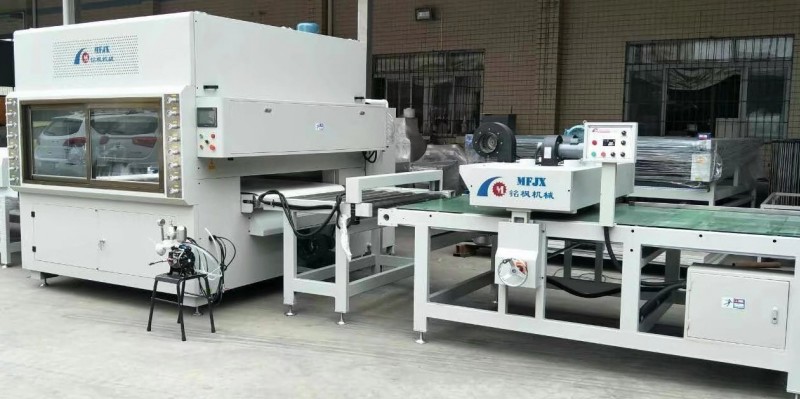

CNC automatic painting machines can be integrated with a loading robot, UV curing system, sanding unit, drying equipment, and other complete lines, creating a truly "unmanned painting line."

Comparison of CNC automatic painting machines with other painting equipment

How should furniture manufacturers choose a CNC automatic painting machine?

1. Identify the product type

Is it a large panel? Does it have a special-shaped structure? Does it have a high-gloss finish?

2. Determine production capacity requirements

Does the daily output require a continuous conveying system or multiple spray guns?

3. Determine the coating process

Will UV coating be used? Do multiple coats need to be applied in one go?

4. Determine the site layout

Are the spray booth area, loading and unloading methods, and auxiliary equipment suitable?

5. Determine the investment budget

Select different levels of automatic spray painting equipment based on your budget and configure them based on the payback period.
