In precision coating processes, curtain coating machines, with their advantages of high precision, high efficiency, and multi-layer simultaneous coating, have become essential production equipment in industries such as functional films, optical films, packaging films, and lithium battery separators.
However, when companies introduce curtain coating machines, a specific question often arises: Does the curtain coater have an automatic paint return function?
This question, seemingly simple, actually involves multiple aspects, including the design of the equipment's liquid circulation system, closed-loop process control, paint utilization rate, and energy-saving and environmental performance.
This article will provide a comprehensive analysis from the perspectives of principle, system composition, functional implementation, application value, and judgment criteria, helping you to deeply understand the automatic paint return function of curtain coating machines and its significance for production.

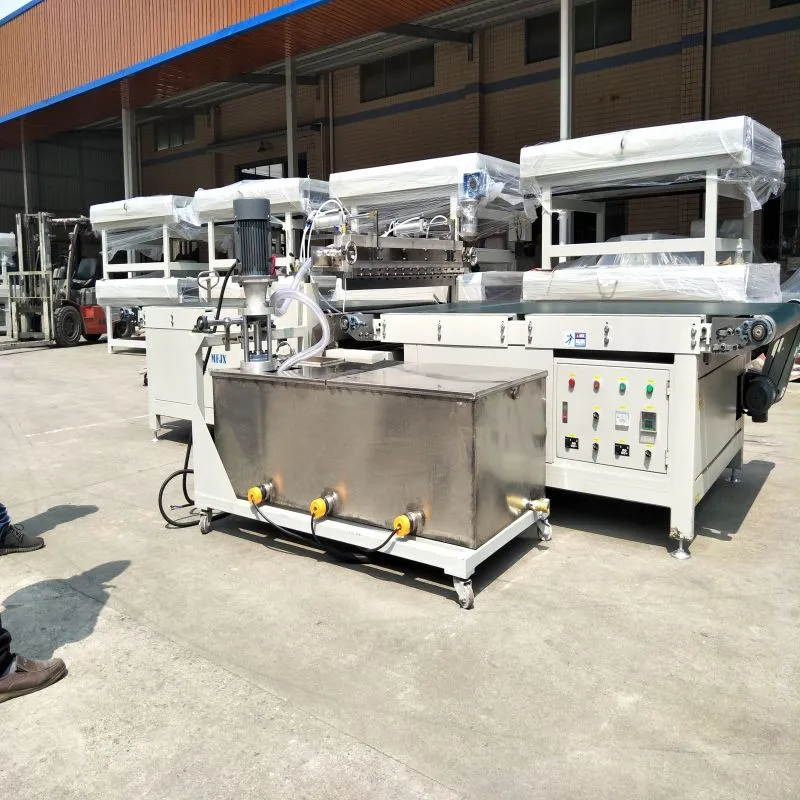

What is the "automatic paint return function" of a curtain coater?
The automatic paint return function refers to the automatic collection, filtration, and return of excess paint that is not coated onto the substrate or flows into the liquid tank during the curtain coating process to the paint supply system through the equipment's built-in reflux circulation system, thereby achieving automatic paint recycling.
The core purpose of this function is to:
• Reduce raw material waste and improve coating utilization;
• Maintain stable coating liquid level and flow rate;
• Prevent liquid from prolonged stagnation leading to deterioration or sedimentation;
• Reduce the frequency of manual cleaning and liquid changes, improving continuous production efficiency.
For curtain coating machines, the presence of a stable automatic paint return system is one of the key indicators for measuring the equipment's intelligence and production economy.

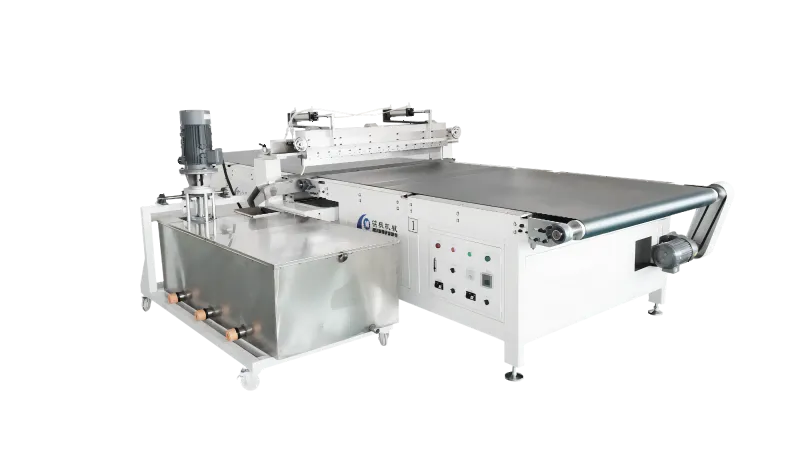

How does the coating circulation system of a curtain coater work?
The automatic paint return function of a curtain coater relies on its internal coating circulation system. Understanding the structure of this system helps determine whether the equipment has a truly automatic paint return capability.
The curtain coating machine's coating circulation system consists of the following parts:
1. Supply System
This includes a storage tank, a gear pump or diaphragm pump, a constant temperature heater, and a viscosity control unit, used to deliver coating at a stable flow rate to the overflow tank or die head.
2. Curtain Pan
Paint falls freely from the opening, forming a liquid curtain. Some of the liquid is carried away by the substrate, and the remainder flows into the collection tank below.
3. Return Line
Excess paint in the collection tank is returned to the storage tank through pipes, filters, and a return pump, forming a closed-loop paint return cycle.
4. Filtration & Monitoring Unit
To prevent particle or bubble contamination of the coating, the automatic paint return system is typically equipped with precision filters and level sensors for real-time monitoring of the paint status.
Therefore, when discussing whether a curtain coater has an automatic paint return function, it is crucial to confirm whether the equipment contains a complete "paint supply-return-circulation" closed-loop structure and can operate stably under automatic control logic.

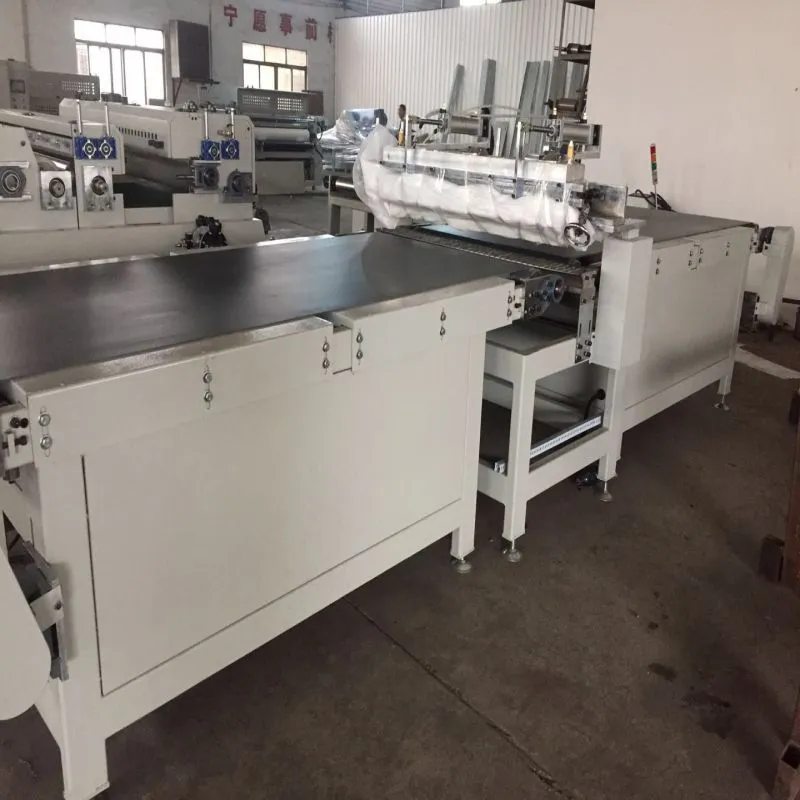

Do all curtain coating machines have an automatic paint return function?
The answer is no. Not all curtain coating machines have an automatic paint return function.
The presence or absence of this function depends primarily on the equipment's design and application requirements.
1. Basic Curtain Coating Machine
Primarily used in laboratories, pilot-scale trials, or short-cycle process validation. It typically uses a single-supply method, with residual paint manually collected after coating. This type of equipment generally does not have an automatic paint return system.
2. Mid-to-High-End Production Curtain Coating Machine
To achieve long-term continuous operation and paint conservation, it is usually equipped with an automatic paint return and automatic filtration system, enabling unattended circulation.
3. Multi-Layer Curtain Coating Machine
If multiple coating solutions with different functional layers are involved, the automatic paint return system is usually configured independently to prevent cross-contamination.
Therefore, when inspecting a curtain coating machine, you should carefully check the equipment manual or ask the supplier:
"Is the coating system of this curtain coating machine a closed-loop automatic paint return design? Does it have independent filtration and liquid level feedback control?"
What is the working principle of the automatic paint return system?
The core principle of the automatic paint return system of a curtain coater is closed-loop constant flow control of the liquid.
In its simplified form, the operating logic can be divided into the following steps:
1. Coating Fall and Excess Liquid Recovery
When the curtain coater is running, some liquid is not carried away by the substrate but flows into the collection tank below.
2. Liquid Level Detection and Automatic Start of the Return Pump
Once the liquid level sensor detects that the liquid level has risen to a set threshold, the return pump automatically starts, drawing the coating back to the storage tank.
3. Filtration and Air Bubble Removal
During the return process, the coating first passes through a precision filtration system (such as a stainless steel filter or PP filter screen) to remove particles and air bubbles.
4. Return to Main Supply Tank
The filtered coating enters the main tank, mixes with the original liquid, and is then pumped back into the overflow tank by the supply pump, forming a closed-loop circulation.
5. Automatic Viscosity and Temperature Control
During the circulation process, the system automatically adjusts heating, cooling, or solvent replenishment based on sensor feedback to ensure stable coating performance.
This circulation system not only ensures the utilization rate of the coating but also maintains the stability of the liquid curtain, thereby improving the coating quality.

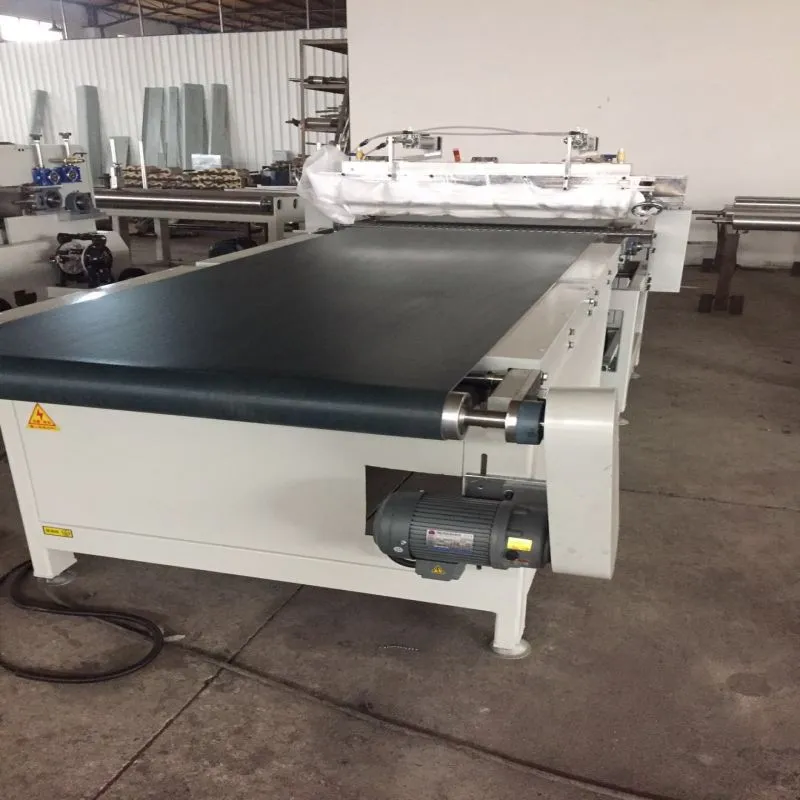

How much does the automatic paint return function affect the production efficiency of a curtain coater?
For continuously operating curtain coating machines, the automatic paint return function is of great significance, mainly in the following aspects:
1. Significantly Improved Paint Utilization
Traditional manual paint return methods often result in paint loss, especially for high-value functional paints.
Automatic paint return systems achieve near-zero waste liquid recovery, increasing paint utilization by 10%–20%.
2. Higher Stability of Coating Liquid
Continuous reflux and filtration maintain liquid uniformity and cleanliness, preventing sedimentation or viscosity fluctuations and ensuring continuous and stable liquid curtain operation.
3. Reduced Manual Intervention
Eliminating the need for frequent manual recovery and cleaning significantly reduces operational intensity and increases equipment uptime.
4. Reduced Environmental and Safety Risks
The paint return system circulates within a closed pipeline, effectively reducing the escape of volatile solvents and improving environmental safety.
Therefore, the automatic paint return function is not merely a "convenience" feature, but a crucial condition for ensuring the efficient and stable operation of the curtain coating machine.
How to determine if a curtain coater has a true automatic paint return function?
Not necessarily. Many machines, although labeled "with a return system," may not truly be "automatic paint return."
You can judge from the following aspects:
1. Does it have automatic liquid level detection and pump start/stop logic?
A true automatic paint return system should be able to automatically start and stop the return pump based on changes in liquid level or pressure, rather than requiring manual operation.
2. Does it have an online filtration device?
If the return pipeline lacks a filtration system, long-term operation will lead to the accumulation of impurities, causing the liquid curtain to break.
3. Does it have an independent circulation control program?
High-end curtain coating machines should have parameter settings such as "paint return start/stop," "circulation time," and "return flow rate" on their PLC control interface.
4. Is the mixing ratio of return liquid and raw liquid controllable?
If the equipment supports online detection of viscosity and flow rate adjustment, it indicates that its paint return system has intelligent feedback control.
In summary, a true curtain coater with automatic paint return functionality must possess four key elements: sensor monitoring, pump control logic, filtration system, and closed-loop feedback.
Does automatic paint return affect the coating accuracy of a curtain coater?
Theoretically, a properly designed automatic paint return system not only will not affect coating accuracy, but it can actually improve consistency.
The reasons are as follows:
• Constant liquid level → Stable coating flow rate;
• Continuous filtration → Improved liquid cleanliness;
• Constant temperature circulation → Reduced viscosity fluctuations;
• Closed-loop control → Faster system response.
However, if the paint return pump flow control is unstable or the liquid level sensor accuracy is insufficient, slight fluctuations in the liquid curtain may indeed occur. Therefore, when purchasing a curtain coater, one should focus on its liquid control accuracy and reflux feedback algorithm. Choosing the right technology is crucial.
