In modern wooden furniture manufacturing and decorative panel processing, CNC automatic spraying machines have gradually replaced manual spraying, becoming a crucial piece of equipment for efficient and consistent surface treatment. CNC automatic spraying machines are particularly crucial in applications requiring batch painting, precision painting, and automated control.
However, every device has its downsides. A CNC automatic spraying machine is not a "perfect replacement" for manual labor. Before deploying it, a thorough understanding of its key advantages and potential disadvantages will help users scientifically assess its suitability for their application and avoid misunderstandings and investment risks.
This article will systematically analyze the key advantages and disadvantages of a CNC automatic wood spraying machine, focusing on its structural functions, operating procedures, operating costs, efficiency, process adaptability, and maintenance requirements, to help companies navigate their purchasing or deployment decisions.
What is a CNC automatic spraying machine?

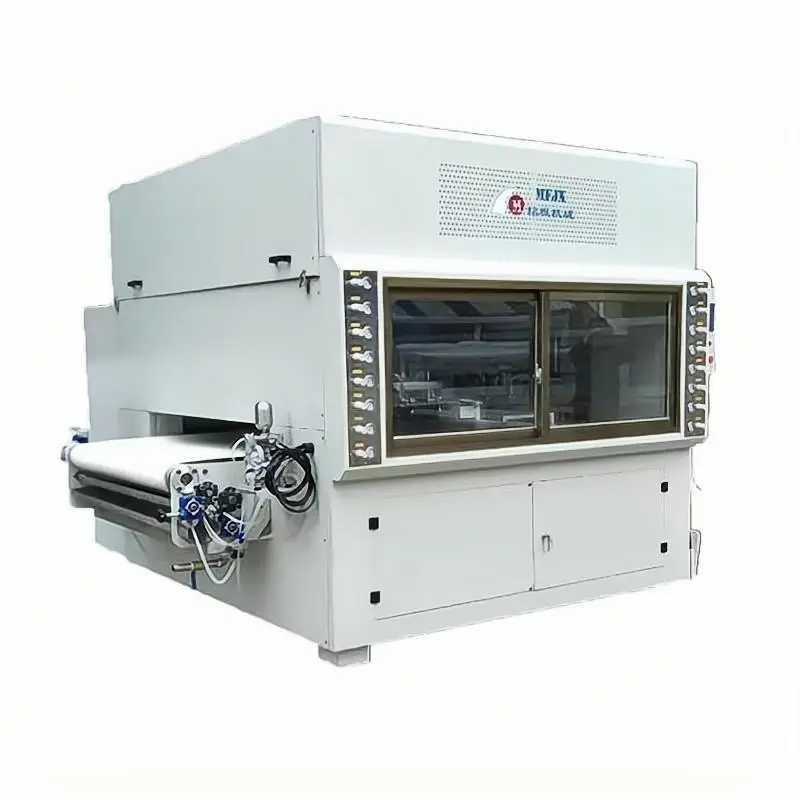

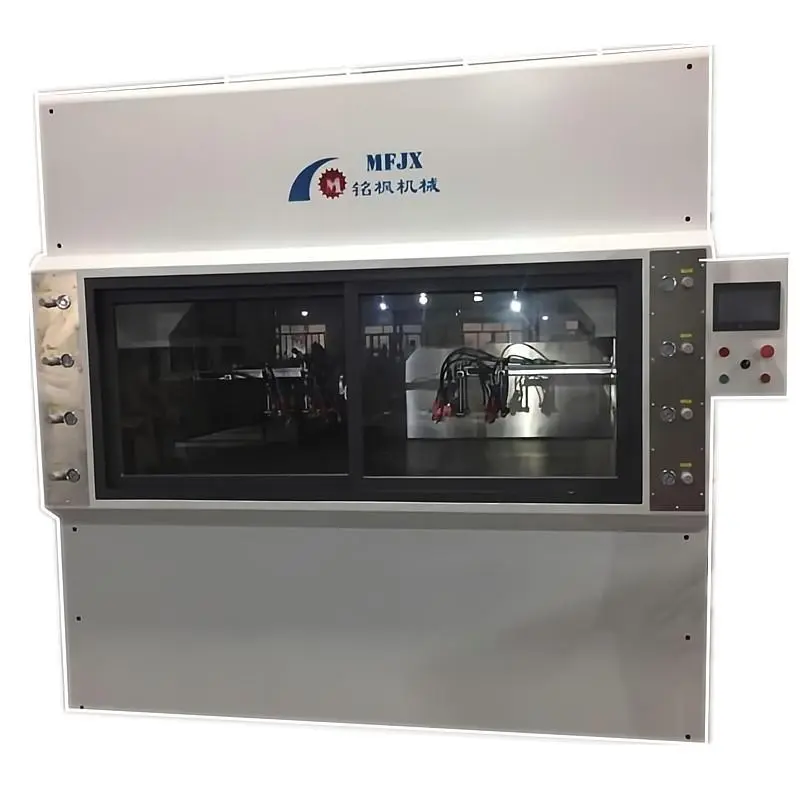

A CNC automatic spraying machine is a computer-controlled, multi-axis automated painting machine that precisely and continuously applies a spray coating to a target workpiece according to a programmed path. The CNC (Computer Numerical Control) system controls multiple parameters, including spray gun movement, paint flow, spray speed, and trajectory, enabling highly automated painting operations.
In the woodworking industry, CNC automatic spraying machines are primarily used for:
• Applying primer and topcoat to furniture panels;
• Surface treatment of custom-shaped wooden components such as doors, cabinets, tabletops, and decorative strips;
• Uniformly applying coatings to materials such as solid wood, MDF, and plywood.
What are the advantages of CNC automatic spraying machines?
The advantages of CNC automatic spraying machines include:
1. Stable spray quality and consistent coatings
2. Improved production efficiency and reduced labor costs
3. Precise control of paint application volume and reduced paint resources
4. Automatically programmed paths accommodate a variety of workpiece shapes
5. A more environmentally friendly and safer working environment
1. Stable spray quality and consistent coatings
Manual spraying is significantly affected by the spray gun's angle, arm stability, and experience level, and can easily result in uneven coating thickness, paint spots, and missing coatings. CNC automatic spraying machines, however, are precisely controlled through pre-programmed procedures to maintain:
• Uniform coating thickness;
• Fixed spray gun path and angle;
• Stable spray flow and air pressure;
• Accurate work rhythm and coverage.
The result: highly consistent coating results for every product, effectively improving product quality standardization.
2. Improved production efficiency and reduced labor costs
The CNC automatic spraying machine features automatic feeding, automatic identification, and continuous operation, enabling eight hours of uninterrupted spraying, significantly increasing output per unit time. Advantages over manual spraying include:
• Stable work rhythm, no fatigue-induced slowdown;
• Synchronous operation of multiple spray guns, increasing coverage;
• One machine replaces two to four workers, saving labor costs;
• Operators are freed from the arduous task of spraying, only focusing on loading materials and monitoring the equipment.
3. Precisely control paint volume, conserving paint resources

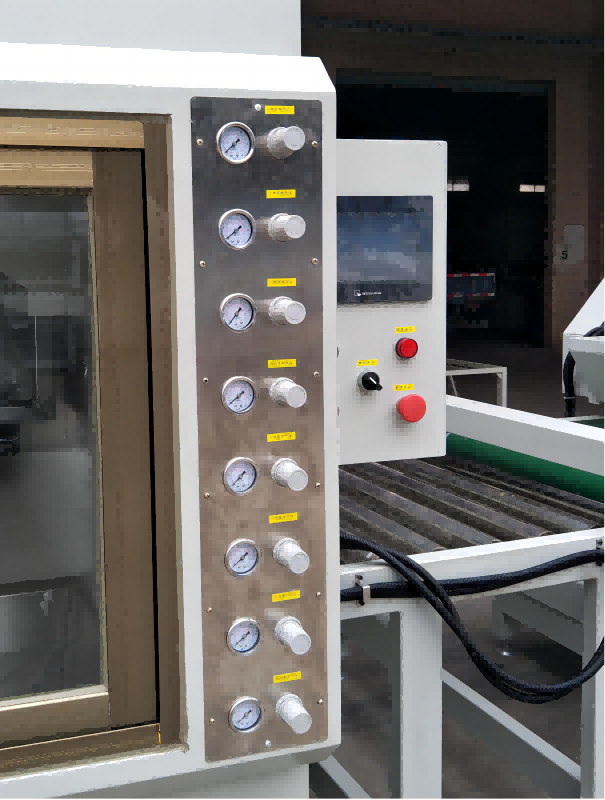

Because the automated spray gun system precisely controls atomization pressure, spray distance, and flow rate, CNC automatic spraying machines minimize overspray, paint splashing, and paint waste.
In addition, some high-end machines are equipped with paint recovery systems or filtration devices to recycle suspended paint mist in the spraying area, further reducing costs.
4. Automatically program paths to accommodate a variety of workpiece shapes
Using a pattern recognition system or manually importing CAD drawings, CNC automatic spraying machines automatically generate path coordinates and convert them into instructions, adapting to various wood workpiece sizes and shapes. Even concave and convex surfaces, complex patterns, and irregular corners can be covered through multi-axis coordination.
This is particularly applicable to:
• Special-shaped door panels;
• Embossed decorative components;
• Curved surfaces such as solid wood furniture armrests.
5. A more environmentally friendly and safer working environment
The automatic spraying process is carried out in a sealed spray booth equipped with exhaust and purification systems, effectively reducing VOC (volatile organic compound) concentrations in the air, improving the working environment and preventing operators from inhaling harmful gases.
In addition, compared to manual spray gun operation, high-pressure mist and paint liquid are no longer directly exposed to the operator, significantly reducing safety risks.
What are the disadvantages of CNC automatic spraying machines?
The disadvantages of CNC automatic spraying machines include:
1. High initial investment and expensive equipment purchase costs
2. Requires complex programming and operation, requiring professional support
3. Requires high workpiece fixture positioning
4. Requires high maintenance and is difficult to repair
Although CNC automatic spraying machines offer advantages over manual spraying in many aspects, they also have certain limitations that should not be ignored.
1. High initial investment and expensive equipment purchase costs
Compared to manual spray guns and simple spray booths, the overall purchase cost of a CNC automatic spraying machine is generally higher, primarily including:
• Main machine structure;
• Control system (PLC or PC);
• Multi-axis drive system;
• Spray gun assembly;
• Auxiliary equipment (conveyor lines, drying equipment, recycling systems, etc.).
In addition, installation and commissioning costs, training fees, and consumable inventory costs are required. Therefore, small fabrication plants or individual workshops cannot afford the financial threshold of such equipment in the short term.
2. High programming and operation requirements, requiring professional support
Although CNC automatic spraying machines offer features such as automatic path generation, spraying complex workpieces still requires:
• CAD graphics processing skills;
• Knowledge of control system parameter setting;
• Experience in spray gun configuration and trajectory optimization;
• Fault identification and basic programming skills.
If a company lacks professional operators, the spraying quality often falls short of expectations, or even the system malfunctions.
3. High Requirements for Workpiece Fixture Positioning
The path accuracy of a CNC automatic spraying machine depends on the consistent positioning of the workpiece. Any slight deviation or angle change can result in overlapping, missing, or offset spray patterns, impacting coating quality.
As a result, companies must invest in the design and manufacture of fixtures or jigs to ensure consistent positioning, which also increases commissioning and changeover time.
4. High Maintenance Requirements and Difficulty
• Spray systems are prone to clogging, wear, and uneven atomization over long periods of use.
• Multi-axis mechanisms such as lead screws and guide rails require regular lubrication and calibration.
• When a control system malfunctions, repair involves multiple components, including electronics, mechanics, and software, making it difficult for non-professionals to perform.
• Equipment with short component replacement cycles, such as nozzles and seals, increases operating and maintenance costs.
In summary, maintenance requires the cooperation of professional technicians and sometimes requires reliance on the manufacturer's after-sales service.
5. Certain non-standard, complex workpieces still struggle to completely replace manual labor
Despite the high degree of freedom and path control capabilities of CNC automatic spraying machines, their limited spray gun angles can still lead to blind spots when painting some highly irregular, hollow, or three-dimensional, multi-faceted small parts, necessitating manual re-spraying.
Therefore, CNC automatic spraying machines cannot completely replace fully automated painting for certain "non-standard" and "complexly carved" wooden crafts.
CNC automatic spraying machines: Weighing the Pros and Cons and using them wisely
In industrial production, no single technology is a "one-size-fits-all" solution. While CNC automatic spraying machines offer significant advantages in efficiency, precision, and consistency, their high cost, complex operation, and some process limitations should not be ignored.
Situations where CNC automatic spraying machines are suitable include:
• Standardized product structure and high repeatability;
• Large spraying batches with high consistency requirements;
• The company has a certain technical foundation and operational capabilities;
• The financial resources to invest in and maintain the equipment.
Situations where CNC automatic spraying machines are not suitable include:
• Fragmented production batches and frequent product style changes;
• Highly complex workpieces and a high number of non-standard shapes;
• Lack of programming and technical support;
• Insufficient funds in the startup phase.
Therefore, before considering the introduction of a CNC automatic spraying machine, companies should conduct a comprehensive assessment based on their own process flow, staffing structure, product types, and budgetary planning. Select the appropriate model, functional configuration, and service plan to avoid blind investment.
