CNC Automatic Spraying Machine: What Are the Different Types?

Spraying technology, as a key surface treatment process, plays a decisive role in a product's appearance, protective properties, adhesion, and service life. As the manufacturing industry continues to demand high efficiency, high consistency, and low labor reliance, traditional manual spraying is gradually being replaced by automated and intelligent equipment. CNC automatic spraying machines, in particular, have become a staple in the spraying industry.

A "CNC automatic spraying machine" refers to an automated spraying system that uses computer numerical control (CNC) technology for three-dimensional path control. It features high precision, programmability, and strong repeatability. It can apply uniform, high-quality coatings to complex workpieces according to pre-programmed procedures, making it suitable for high-volume, high-consistency spraying operations.

However, CNC automatic spraying machines are not a single type; rather, they have evolved into various sub-types based on different application scenarios, product structures, spraying methods, and material properties.

This article will provide a professional explanation of the different types of CNC automatic spraying machines, comprehensively analyzing the structure, application scope, technical characteristics, and classification criteria of each type of machine, to help users accurately identify their needs and select the appropriate machine.

What are the different types of CNC automatic spraying machines?

Classification by Spraying Action:

1. Single/Dual-Axis CNC Spraying Machine

2. Three/Four-Axis CNC Automatic Spraying Machine

3. Five/Multi-Axis CNC Automatic Spraying Machine

Classification by Workpiece Conveying Method:

1. Fixed-Station CNC Spraying Machine

2. Continuous Conveyor CNC Spraying Machine

3. Rotary Disc CNC Automatic Spraying Machine

Classification by Spraying Media Type:

1. Paint CNC Automatic Spraying Machine

2. UV Coating CNC Spraying Machine

3. Powder CNC Spraying Machine

Classification by Number and Type of Spray Guns:

1. Single-Gun CNC Automatic Spraying Machine

2. Multi-Gun CNC Automatic Spraying Machine

Classification by Spray Gun Control Method:

1. Air Atomization CNC Automatic Spraying Machine

2. Airless High-Pressure Spraying CNC Spraying Machine

3. Electrostatic Spraying CNC Automatic Spraying Machine

Classification by Industry and Application:

1. CNC spray machines for home appliance housings

2. CNC spray machines for spraying plastic hardware

3. CNC spray machines for spraying furniture and decorative parts

Classification by spraying motion:

1. Single-axis/Dual-axis CNC spray machines

These machines have fewer motion axes and are generally suitable for products with simple structures (such as flat parts and single-face spraying). Their core advantages are:

    · Simple control programs;

    · Fixed motion paths, suitable for standard workpieces with high repeatability;

    · Suitable for coating plastic housings, appliance exteriors, and decorative parts.

The disadvantage is limited adaptability, resulting in suboptimal spraying results for complex structures.

2. Three-axis/Four-axis CNC automatic spraying machines

Three-axis control (X, Y, and Z) has become standard for most CNC spray machines, and some machines can be expanded to four axes (rotating the R axis) to handle certain angle spraying tasks.

    ·Three-axis models: Suitable for uniform coating of three-dimensional parts, concave and convex surfaces, and upper and lower surfaces.

    ·Four-axis models: Enable dynamic rotation of the spray gun angle, improving spray uniformity in corners.

This type of machine is the most common in industrial mass production.

3. Five-axis/multi-axis CNC automatic spraying machine

Structures with five or more axes are suitable for fully automated spraying of complex contours and special shapes. Features include:

    ·Coordinated motion of five or more servo axes;

    ·Enables complex processes such as rotation, internal cavity spraying, and edge-to-edge spraying;

    ·Commonly used in automotive interiors, curved appliance housings, and 3D printing post-processing.

The programming complexity and equipment cost also increase accordingly, but they offer significant advantages for high-value-added products.

Classification by workpiece transport method:

1. Fixed-station CNC spraying machine

In this type of machine, the spray platform is stationary, and the spray gun performs all movement.

    ·Suitable for batch processing of small and medium-sized parts;

    ·Small footprint and compact structure;

    ·Flexible programming and easy debugging.

Suitable for spot spraying of electronic components, hardware accessories, molds, and other parts.

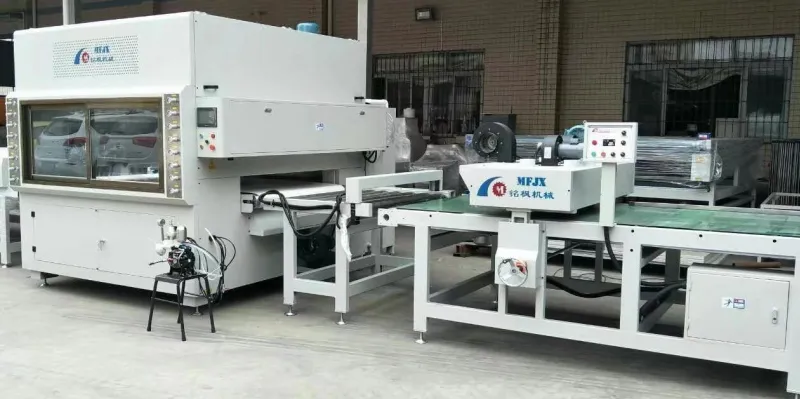

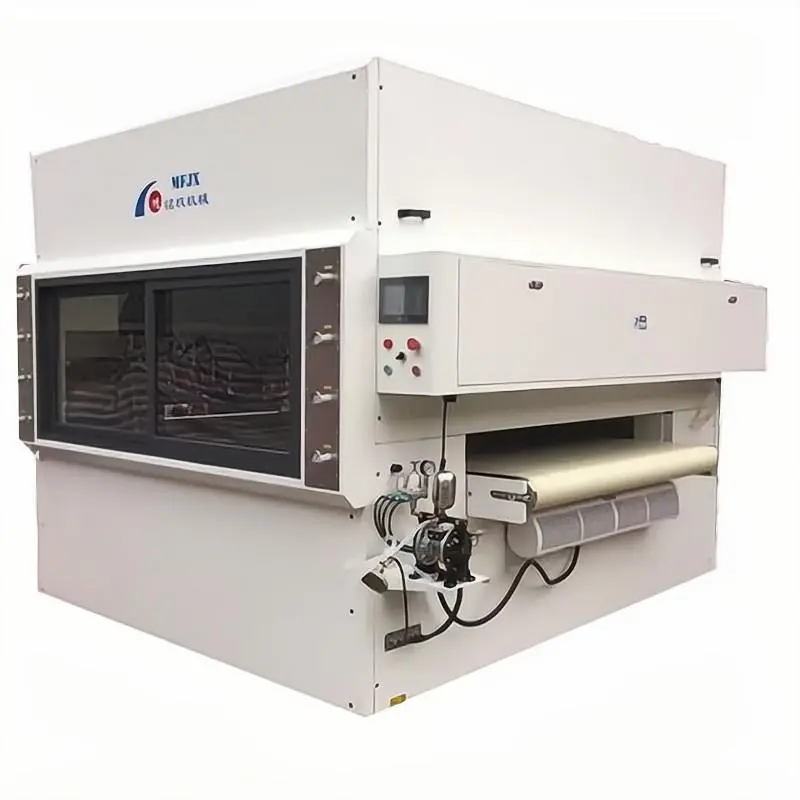

2. Continuous Conveyor CNC Spraying Machine

Also known as a linear conveyor CNC spraying machine, this machine typically operates in conjunction with a belt conveyor, roller conveyor, or chain conveyor to achieve continuous flow and rhythmic spraying of workpieces.

    ·The spray gun automatically detects workpiece position using a sensor;

    ·Program triggers control the opening, movement, and retraction of the spray gun;

    ·Commonly used in mass production industries such as plastic parts, electrical housings, and automotive trim.

This type of spraying machine seamlessly integrates with the entire automated production line and is a core piece of equipment for automated assembly line production.

3. Rotary Disc CNC Automatic Spraying Machine

This type of machine features a rotating worktable as its core structure, with multiple spray stations performing spraying operations sequentially.

    ·High space utilization and precise cycle times.

    ·Often equipped with loading and unloading robotic arms.

    ·Suitable for production cycle control scenarios requiring multi-station, multi-process spraying.

Mainly used in medium-to-high-volume automatic spraying lines.

Classification by spraying medium type:

1. Paint CNC automatic spraying machine

Suitable for automatic spraying of traditional liquid coatings such as solvent-based and water-based paints. Features:

    ·The spray gun structure must take into account atomized particle size and adhesion.

    ·Often equipped with exhaust, drying, and explosion-proof systems.

    ·Produces a thick coating with a highly uniform appearance.

Suitable for a wide range of industrial spraying needs, such as home appliance panels, furniture, and hardware accessories.

2. UV coating CNC spraying machine

Specially designed for UV coating spraying processes:

    ·Requires immediate entry into the UV curing zone after spraying.

    ·Higher requirements for the spray gun atomization system.

    ·Equipped with a UV curing device.

Suitable for products with high-hardness and wear-resistant coatings, such as mobile phone cases, panel glass, and decorative plastics.

3. Powder-Type CNC Spraying Machine

Although mainstream powder coating equipment typically uses electrostatic spray guns, some custom-shaped parts and automated production lines also utilize CNC path guidance for precise positioning of powder coating operations.

    · Mainly used in metal parts anti-corrosion and decoration applications;

    · Involves powder recovery systems and electrostatic control systems.

Classification by the number and type of spray guns:

1. Single-Gun CNC Automatic Spraying Machine

Only one programmable spray gun covers the entire spray path, making it suitable for small and medium-sized parts, prototypes, and small-batch production:

    · Simple programming and low investment;

    · Fast color and material changes;

    · High precision control.

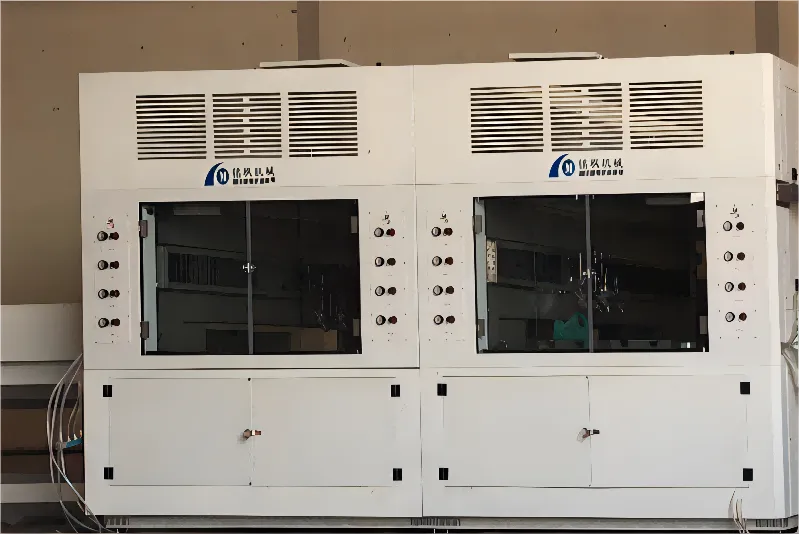

2. Multi-Gun CNC Automatic Spraying Machine

Equipped with two or more spray guns, it is suitable for:

    · Simultaneous spraying at multiple stations;

    ·Sequential spraying of multiple colors or layers;

    ·Increasing production capacity per unit time.

Spray guns can be individually controlled for angle, height, and open/close status to meet the needs of complex spraying procedures.

Classification by spray gun control method:

1. Air Atomization CNC Automatic Spraying Machine

Uses compressed air as the atomizing force, creating a fine mist of liquid paint.

    · Commonly used for general-purpose paint spraying;

    · Uniform atomization and strong adaptability;

    · Requires a good ventilation and recovery system.

2. Airless High-Pressure Spraying CNC Spraying Machine

Uses a high-pressure pump to directly pressurize the paint, eliminating the need for compressed air.

    · Fast spraying speed and strong penetration;

    · Excellent coating adhesion;

    · Suitable for thick coatings or large workpiece processing.

3. Electrostatic Spraying CNC Automatic Spraying Machine

Paint particles become charged and are attracted to the workpiece surface with an opposite potential, forming a coating with high adhesion and high utilization rate.

    · Suitable for spraying metal surfaces;

    · Minimizes paint waste;

    · Precise spraying, suitable for thin-film coatings.

Classification by Industry and Application:

1. CNC Spraying Machines for Home Appliance Casings

    · Applications: Air conditioner panels, refrigerator doors, washing machine housings, etc.

    ·Requirements: Uniform appearance, minimal color variation, and high surface hardness

    ·Recommended Equipment: Three-axis or four-axis linear CNC spraying machine.

2. CNC Spraying Machines for Plastic Hardware

    · Applications: Keyboard panels, plastic housings, and small precision parts

    ·Requirements: High consistency and adaptability to varying batches

    ·Recommended Equipment: Multi-gun, fixed-station, or conveyor-type CNC machines.

3. CNC Spraying Machines for Furniture and Finishes

    · Applications: Wood panels, cabinet doors, and decorative panels

    ·Requirements: Thick coating, strong adhesion, and high wear resistance

    ·Recommended Equipment: Mobile platform CNC spraying machine with UV curing system.

Which CNC automatic spraying machine should you choose?

The development and segmentation of CNC automatic spraying machines provide efficient, stable, and environmentally friendly coating solutions for modern manufacturing. Accurately identifying your product structure and coating requirements is the first step in selecting the right equipment.

Among the numerous types of CNC spray coating equipment, only by clearly understanding the classification and technical principles of each type can you truly maximize the value of the equipment in production practice.
