CNC Automatic Painting Machine: How Much Does It Cost?

In the modern furniture manufacturing industry, the painting process not only impacts the product's appearance and texture, but also directly influences its added value and market competitiveness. With the increasing prevalence of automation technology, more and more furniture companies are adopting CNC automatic painting machines to replace traditional manual painting methods. This shift has significantly improved paint quality consistency and production efficiency.

However, for many furniture manufacturers, one of the most pressing questions about purchasing a CNC automatic painting machine is: "How much does a CNC automatic painting machine really cost?"

This article systematically analyzes this question, drawing on industry realities to provide professional explanations from multiple perspectives, including machine structure, configuration options, brand differences, and compatibility requirements, to help furniture companies make more rational and cost-effective purchasing decisions.

What is a CNC automatic painting machine?

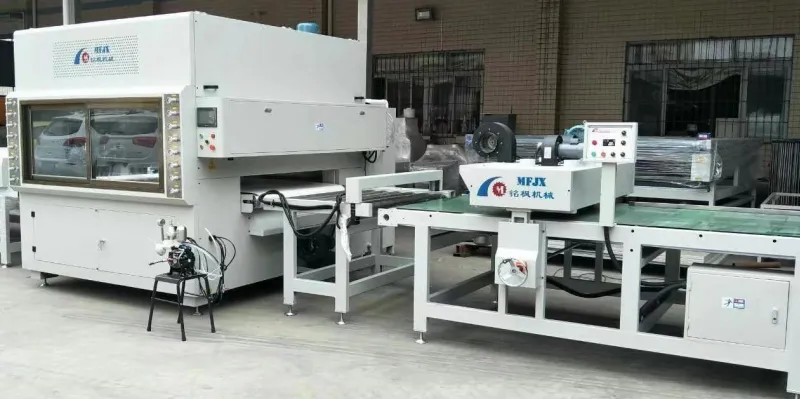

A CNC automatic painting machine is a highly efficient painting device that combines computer numerical control (CNC) technology with an automated spray system. It uses pre-set programs to control the spray gun's movement path, speed, and angle, achieving a uniform coating on the surface of furniture components.

Automatic painting machines are widely used for:

    · Spraying solid wood furniture (such as chair backs and armrests)

    · Spraying panel furniture (such as wardrobe doors and headboards)

    · Spraying decorative panels (such as blister boards and MDF)

    · Surface treatment of special-shaped workpieces

CNC automatic painting machines are a key component of modern automated spray painting systems and an indispensable part of furniture production lines.

What is the price of a CNC automatic painting machine?

Based on current market pricing, the price of a CNC automatic painting machine typically ranges from $20,000 to $60,000. This price fluctuation is determined by multiple factors and cannot be simply measured by a single parameter.

Below, we will analyze the main factors that influence price one by one to clarify the logical structure of equipment costs.

What factors influence the price of a CNC automatic painting machine?

1. Number of Spraying Axes and Motion Structure

    · Three-axis (X/Y/Z) system: Suitable for flat furniture panels, with a relatively simple structure and lower cost.

    · Four-axis (including a rotary axis) or five-axis system: Suitable for three-dimensional furniture and edge and corner spraying, but with a more complex mechanical structure and a 20%-50% price increase.

    · Gantry vs. Lifting Arm: Gantry systems offer greater rigidity and are suitable for large pieces of furniture; Lifting Arm systems offer greater flexibility, a smaller footprint, but are less stable.

    · The more complex the structure, the greater the number of axes, and the greater the processing flexibility, the higher the price.

2. Number of Spray Guns and Spray Control System

    · Single-gun system: Suitable for small production capacity requirements, with simple control.

    · Dual or multi-gun system: Suitable for continuous spraying of large areas, with high efficiency, but with higher control system and valve component costs.

    · Servo-controlled spray gun switching and atomization: High-precision components increase overall machine cost.

In addition, the type of spray gun also has a direct impact on price, such as:

3. Paint media support and paint compatibility

    · Universal type for oil-based/water-based paint: High structural corrosion protection requirements, moderate price;

    · Dedicated type for UV paint (including UV curing system): Requires installation of UV lamps, cooling systems, and explosion-proof enclosures, increasing equipment costs by 20-30%;

    · Multi-coat support system: Automatically switches between spray guns or pipes for primer, topcoat, and clearcoat, requiring a complex control system and significantly increasing costs.

For furniture companies using high-end, environmentally friendly UV coatings, choosing a CNC automatic painting machine that supports UV spraying is essential, but also relatively expensive.

4. Workpiece transport method and automation interface

The higher the degree of automation, the more demanding the PLC control and sensor configuration of the equipment, which naturally increases costs.

5. Equipment processing area and production capacity

The size of the CNC automatic painting machine's processing platform directly determines its application range and spraying capacity per unit time. General specifications are as follows:

    · 1300mm x 2500mm: Standard door panel grade, suitable for medium-sized production lines;

    · 2000mm x 3000mm and larger: For spraying large panels or entire panels, requiring large equipment and high costs;

    · 600mm x 600mm or smaller: Specialized equipment for small components, suitable for finishing corners and edges, with a relatively low price.

In addition, the faster the spraying cycle, the more responsive the equipment's servo system, which directly affects the price.

6. Brand, Manufacturing Process, and Accessory Selection

    · Differences between International and Domestic Brands: CNC automatic painting machines with the same functionality often cost 1.5 to 2 times more for international brands (such as those from Italy and Japan);

    · Control System Brand: Using high-end controllers such as Siemens and Schneider will increase costs;

    · Spray Gun Accessory Source: Whether the equipment is from imported brands such as GRACO and WAGNER also significantly affects the overall cost.

    · The finer the materials used and the higher the assembly standards, the higher the price, but also the greater the stability and durability.

CNC Automatic Painting Machine Price Summary (Based on Actual Market Conditions)

This price data is based on a comprehensive analysis of professional coating equipment manufacturers (such as the XMF CNC Spraying Equipment website) and mainstream market trends.

How to Choose the Right CNC Automatic Painting Machine for You?

1. Clarify Your Production Capacity Requirements

For small-batch, high-variety custom furniture, a basic model will suffice. However, for standardized mass production, a model with an automatic conveyor system is recommended.

2. Coating Type Determines Machine Specifications

Companies using UV coatings must select a CNC automatic painting machine that supports UV spraying and curing; otherwise, the machine will not be compatible.

3. The Complexity of the Coating Object Determines the Axis Configuration

Flat panels are sufficient with three axes; complex, custom-shaped parts (such as solid wood chairs and carved parts) require at least a four-axis system.

4. Budget Matching

Within the $20,000 to $60,000 range, higher configurations, more features, and improved efficiency translate to higher prices. Companies should calculate the return on investment based on their payback period and production scale.

Why choose XMF Machinery as your coating equipment supplier?

As a professional coating machinery manufacturer founded in 2006, XMF Machinery provides reliable, efficient, and cost-effective solutions tailored to your substrate and coating needs. Our factory ensures high-quality production with strict quality control, competitive prices, and ongoing promotions.

Customers worldwide trust us for customized, low-price equipment and excellent after-sales service, making us a preferred company for purchasing coating machines.
