Yes, UV light can "dry" (more accurately, "cur") paint—but only if a UV-curable coating is used and a suitable UV Paint Dryer Machine is employed (the light source, energy, cooling, and transmission must be matched to the coating and workpiece).
Typical furniture UV Paint Dryer Machines are specifically designed for putty sealing, clear and colored primers/topcoats, etc., and support adjustments to the lamp assembly and line speed according to the coating performance to achieve stable one-time curing.
Below, I will explain in detail why it can, what can, how to do it, and what the limitations and safety precautions are, helping you understand the technical aspect of "UV-dried paint" comprehensively, professionally, and practically.
How does ultraviolet (UV) light dry paint?
Irradiating paint with UV light does not "dry" it by evaporating the solvent. Instead, it triggers the photoinitiator in the coating system to generate free radicals or acid catalysts, thereby initiating the photopolymerization and cross-linking reaction of monomers/oligomers, transforming the liquid coating film into a solid, highly cross-linked paint film in a very short time. This process of forming a three-dimensional network structure through photo-initiated free radical/cationic photopolymerization is commonly referred to as UV curing or photopolymerization. This mechanism has been extensively studied and applied in industrial practice.
UV curing is a chemical cross-linking process, not evaporation; therefore, the requirements for solvent content and the coating's "instant film-forming" ability are completely different from traditional solvent-based paints.
Which coatings can be dried using a UV Paint Dryer Machine?
Can all paints be dried by UV light? Not all paints can be "dried" by UV light. Coatings that can be dried by UV light are typically specially formulated UV-curable coatings, including:
• 100% solid UV resins (UV-acrylates, UV-urethane, etc.): Solvent-free, cross-linking to form a film upon light exposure.
• Water-based or solvent-based UV-hybrid formulations: Contain photoinitiating systems, but may require a brief solvent evaporation or auxiliary thermal drying steps.
• UV-modified topcoat/primer/putty systems: Specially formulated for furniture or decorative panels, enabling rapid surface film formation.
In simple terms, only coatings containing a photoinitiating system that can be excited in the UV band can achieve "instantaneous" curing in industrial processes using ultraviolet light. Common UV coatings for wood and furniture are very prevalent in actual production, and there are dedicated UV Paint Dryer Machines and curing lines available.
UV Paint Dryer Machine VS. Traditional Ovens, Infrared Drying: What are the differences?

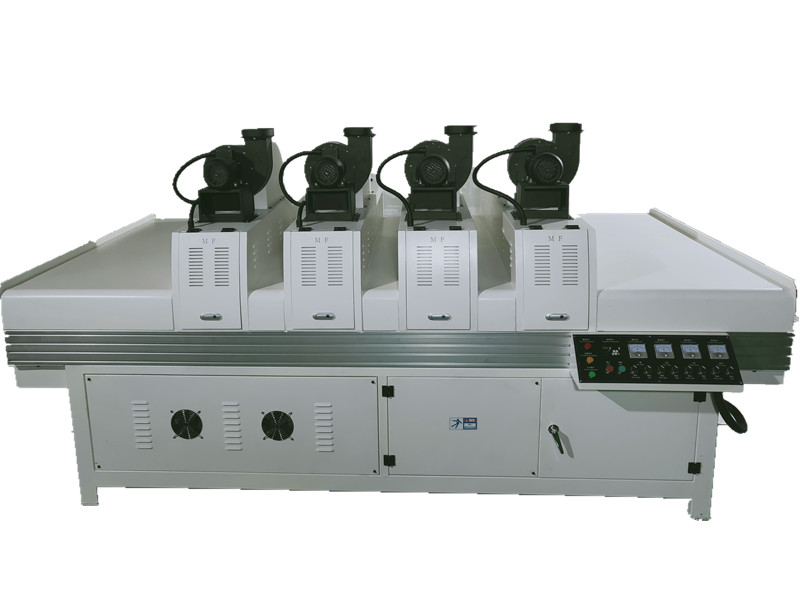

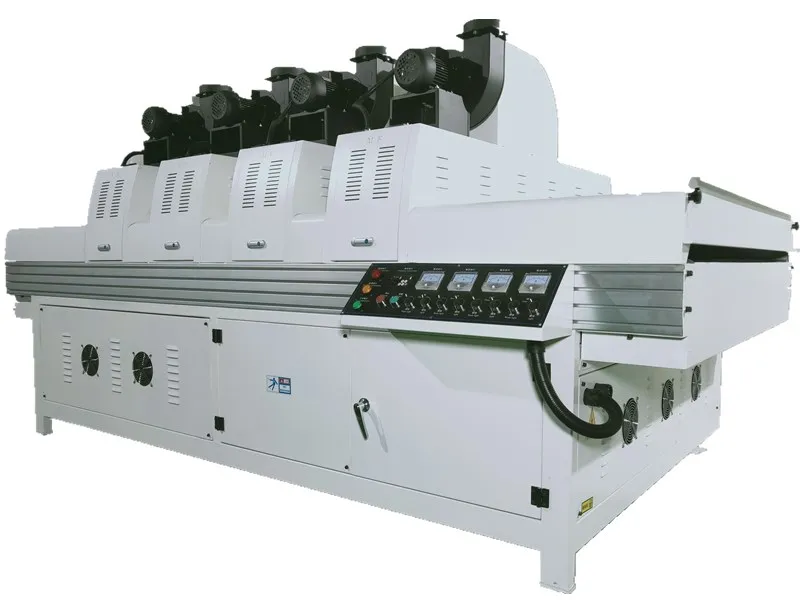

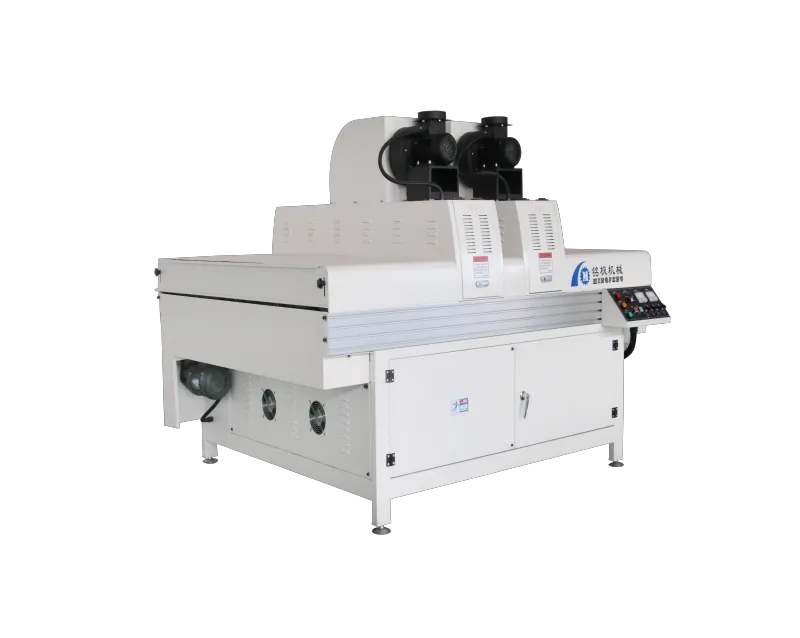

UV Paint Dryer Machines (also commonly called UV curing machines, UV drying ovens, or UV drying chambers) are mechanical devices that emit high-energy ultraviolet light to irradiate workpieces coated with UV-curable coatings, causing the coating to rapidly cross-link and cure within the irradiated area (usually within seconds or less).
Unlike traditional drying methods that rely on heat or solvent evaporation, UV drying is a photochemical curing process, which is faster and significantly reduces (or eliminates) VOC emissions from solvent evaporation.
Industrial UV systems typically consist of:
Light source modules (lamp tubes or LED strips), reflection/optical systems, conveying (transportation) systems, cooling and ventilation systems, and safety devices. The equipment is designed with power, number of lamps, and modular sections to match different process requirements.
Product examples illustrate that furniture UV dryers are designed for the instant curing of putties, clear coats, primers, and topcoats, and that "each unit can be adjusted according to the performance of different manufacturers' coatings," a common description of commercially available UV paint dryer machines.
Key differences:
• Thermal drying (infrared/hot air): Relies on temperature to evaporate solvents or accelerate chemical reactions, taking longer and requiring larger volume;
• UV drying: Relies on light to trigger chemical cross-linking, resulting in faster speed, smaller footprint, and lower solvent/VOC levels (especially for 100% solid systems).
What types of UV light sources are available? How to choose the right UV paint dryer machine?
Common industrial UV light sources fall into two main categories: mercury vapor UV lamps (traditional gas discharge lamps) and UV-LED light sources. The differences between the two directly affect the selection of a UV Paint Dryer Machine and the compatibility of paint formulations:
• Spectrum/Wavelength: Mercury lamps emit broad-spectrum (multi-peak) ultraviolet light, covering multiple spectral peaks (e.g., 254nm, 313nm, 365nm, etc.), and have good compatibility with many traditional photoinitiators; while LEDs emit relatively narrow bands (commonly 365nm, 385nm, 395nm, 405nm, etc.), requiring the photoinitiator in the paint to match the LED wavelength.
• Instantaneous Power, Flicker, and Stability: Mercury lamps have high instantaneous power and strong irradiance, but require a preheating/stabilization process; LEDs start up quickly, and their output is stable and adjustable.
• Energy Consumption and Maintenance: LEDs are generally more energy-efficient, have a longer lifespan, and a longer switching life; mercury lamps generate more heat during operation and require regular replacement of components such as tubes and ballasts.
• Environmental and Safety Impacts: Mercury lamps may produce ozone in the short-wavelength range (if containing <240 nm output) and contain mercury, posing higher environmental and maintenance requirements; LEDs are mercury-free and produce less ozone.
These differences determine that:
If a factory wants to use existing traditional formulations or multiple photoinitiators, a mercury lamp UV paint dryer machine may be more compatible; if energy consumption, maintenance, and temperature control are important, UV-LED is a more modern choice, but it is essential to ensure that the paint formulation matches the LED wavelength.
What are the key variables to consider when operating a UV paint dryer machine?
1. Key Modules of a UV Paint Dryer Machine
• Light Source Module (Mercury Lamp or LED Unit) – Determines irradiance and wavelength;
• Reflection and Optical Guidance – Improves effective energy and ensures uniform irradiation;
• Conveying System (Belt/Roller Conveyor) – Controls throughput speed;
• Heat Dissipation/Ventilation System – Removes heat and controls lamp and workpiece temperatures;
• Control System (PLC, HMI) – Sets lamp start/stop, speed, power settings, etc.;
• Safety Protection – Prevents UV leakage, door interlocks, emergency shutdown, etc. (Xingfa Polyurethane)
2. Key Adjustable Parameters (Directly Affecting Curing Effect)
• Irradiance (W/cm²): The light power received per unit area per unit time;
• Energy Dosage/Cumulative Dosage (dose, mJ/cm²): Irradiance × exposure time, the fundamental dimension determining whether cross-linking is complete;
• Transmission Speed (Pass-through Time): Faster belt speed results in lower energy per unit area, and slower belt speed results in higher energy per unit area;
• Distance between Lamp and Workpiece: Closer distance results in higher light intensity but increased heat, while greater distance leads to light attenuation;
• Segmented Lamp Control: UV Paint Dryer Machines are often divided into multiple lamp segments to adjust the energy input for different stages or different colors/positions;
• Cooling/Airflow: Controls surface temperature to avoid heat damage or overheating leading to yellowing.
Common practice in production is:
Adjusting lamp power and linear speed according to the coating (manufacturer's technical data) requirements, and testing to determine the "minimum energy dosage" to ensure the surface passes the "scrub resistance, adhesion, and tack-free" tests. Note: Different coatings, pigments, or fillers will significantly change the required dosage.
Why do many furniture manufacturers consider UV Paint Dryer Machines?
Key advantages of UV Paint Dryer Machines:
• Extremely fast curing speed: The curing process involves photochemical cross-linking, achieving "instant film formation without thixotropy" within seconds to tens of seconds after irradiation—significantly increasing production capacity and saving space and drying time.
• Low VOC/low solvent emissions: Especially for 100% solid UV coatings, there is almost no reliance on solvent evaporation, resulting in a smaller environmental burden.
• High surface hardness and abrasion resistance: The highly cross-linked structure provides excellent scratch resistance, chemical resistance, and weather resistance (depending on the formulation).
• Space and energy efficiency advantages: Compared to large-area hot air ovens, UV curing lines are typically more compact and energy consumption is controllable (especially when using LEDs).
These advantages explain why industries such as furniture, wooden doors, and flooring adopt UV Paint Dryer Machines in their mass production lines to improve cycle time and surface performance.
When is UV drying not an option?
UV curing is not a panacea; common limitations include:
• The coating must be a curable formulation: Traditional solvent-based or certain polymer systems lack photoinitiation systems and cannot form films using UV curing.
• Shading/shadowing issues: UV irradiation is linear/surface irradiation; deep recesses, holes, or shadowed areas cannot be directly illuminated, easily leading to "uncured" conditions.
• Opacity of pigments and fillers: Dark or high-opaque pigments, metallic powders, carbon black, etc., absorb/scatter UV light, significantly increasing the required energy or preventing curing.
• Coating thickness limitations: Extremely thick coatings may exhibit surface drying but internal uncured conditions due to limited light penetration (requiring layering, increased energy, or the use of different systems).
• Substrate heat/light resistance: Some plastics or thin substrates may experience localized deformation or discoloration under high-intensity irradiation, requiring controlled energy and thermal management.
Therefore, the overall compatibility of the "coating system—pattern/shape—substrate—light source" must be evaluated during process design. If shading or thick coating is required, it is often necessary to use multiple thin coats, rotating/multi-angle irradiation, or a formulation with a penetrating wavelength.
