Can Curtain Coating Machines Replace Traditional Spraying Equipment?

In the diversified evolution of modern coating processes, curtain coating machines, with their advantages of high precision, high uniformity, and high efficiency, are attracting increasing attention from manufacturing enterprises. Meanwhile, traditional spraying equipment, with its flexible operation and wide applicability, still occupies a certain market share.

Therefore, a question worthy of in-depth discussion has emerged within the industry: Can curtain coating machines replace traditional spraying equipment?

This article will systematically compare the two from multiple perspectives, including principles, process characteristics, and applicable scope, to help you scientifically determine their differences and substitution relationships.

Curtain Coating Machines vs. Traditional Spraying Equipment: What are the Differences?

To determine whether curtain coating machines can replace spraying equipment, it is essential to understand the differences in their working principles. Although both belong to coating process equipment, their coating mechanisms are completely different.

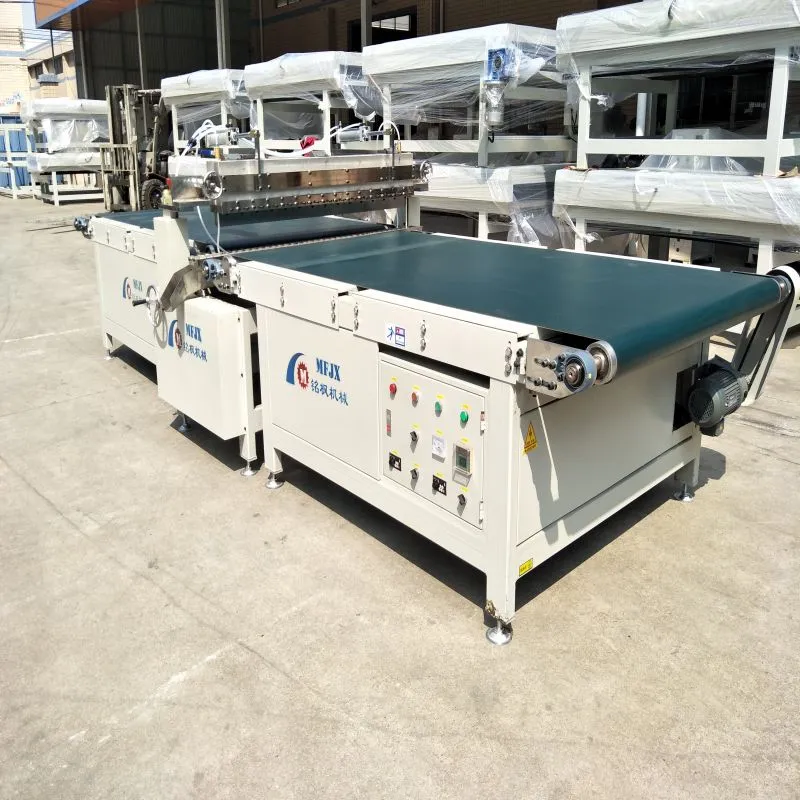

1. The Principle of Curtain Coating Machines

Curtain coating machines utilize the uniform liquid curtain formed by gravity. When the substrate passes through the liquid curtain at a constant speed, the coating is uniformly deposited on the substrate surface, forming a continuous coating.

Its key features include:

    • Coating thickness is controlled by liquid flow rate;

    • Smooth, uniform coating surface, free of bubbles and pinholes;

    • Capable of single-layer or multi-layer simultaneous coating;

    • Suitable for continuous roll-to-roll production.

2. Principle of Traditional Spray Coating Equipment

Spray coating equipment uses compressed air or a high-pressure pump to atomize the paint and spray it onto the surface of the object to form a coating.

Its characteristics are:

    • Coating is controlled by the spray gun's movement trajectory and airflow;

    • Suitable for dotted, discontinuous, and irregularly shaped surfaces;

    • Low paint utilization rate, resulting in overspraying and waste;

    • Suitable for sheet or three-dimensional workpiece surfaces.

From a principle perspective, curtain coater machines are based on "continuous liquid flow deposition," while spray coating is based on "atomized impact adhesion." There is a fundamental difference in their coating formation mechanisms; therefore, the substitution relationship needs to be discussed in conjunction with specific application conditions.

Can curtain coater machines outperform spray coating equipment in terms of coating uniformity?

Coating uniformity is a core indicator for evaluating the performance of any coating equipment.

Advantages of Curtain Coating Machines in Uniformity:

    • Utilizing a gravity-fed liquid curtain and constant flow system, thickness uniformity can be controlled within ±0.5 μm;

    • Continuous and stable coating with smooth edges;

    • Eliminates the "cloudy" particle appearance common in traditional spraying.

Disadvantages of Spraying Equipment in Uniformity:

    • Coating thickness depends on the operating angle and spray gun speed;

    • Prone to problems such as "paint piling," "missed areas," and "overlapping lines";

    • High dependence on operator experience.

Therefore, from the perspective of coating consistency and thickness control, curtain coater machines offer far superior uniformity compared to traditional spraying equipment.

What materials are curtain coater machines suitable for? Are they as versatile as spraying?

Traditional spraying can coat almost any solid surface, including metals, plastics, wood, and ceramics, thus offering broad versatility. Curtain coater machines, however, are primarily designed for flexible substrates and thin-film materials.

1. Application Scope of Curtain Coating Machine

    • Plastic films (PET, PE, PP, BOPP, etc.)

    • Paper-based materials

    • Metal foils (copper foil, aluminum foil)

    • Roll-to-roll substrates such as lithium battery separators, optical films, and packaging films

2. Application Scope of Spray Coating Equipment

    • Flat and three-dimensional workpieces;

    • Various surface morphologies;

    • Small-batch, non-continuous production scenarios.

Therefore, the curtain coater machine is not a "universal device." It is more suitable for continuous, flat, and flexible material coating processes.

For three-dimensional workpieces or irregular surfaces, traditional spray coating still offers greater flexibility.

Is the coating quality of the curtain coater machine superior to that of spray coating?

1. Coating Quality Characteristics of the Curtain Coating Machine

    • Smooth, dense coating surface, free of pinholes;

    • Precise control of multi-layer structure thickness;

    • Clean coating edges, without transition lines;

    • Suitable for precision fields such as optics, electronics, and energy.

2. Coating Characteristics of Spray Coating Equipment

    • High surface roughness, prone to particle and flow marks;

    • Coating thickness is significantly affected by air pressure and distance;

    • Uneven atomization easily causes local color differences or voids.

Therefore, in scenarios requiring extremely high coating thickness uniformity and surface smoothness (such as optical films and functional films), curtain coater machines undoubtedly have a significant advantage.

Curtain Coating Machine vs. Spray Coating Equipment: Which is More Efficient?

Production efficiency depends not only on speed but also on material utilization, downtime frequency, and changeover efficiency.

The result is very clear:

In scenarios such as continuous production, roll-to-roll processing, and high-consistency coating, the production efficiency of curtain coater machines far exceeds that of spray coating equipment.

Will using a curtain coater machine consume more energy?

In fact, curtain coater machines, due to their use of the liquid free-fall coating principle, are more economical in terms of energy consumption compared to spray coating equipment.

1. Energy Consumption Comparison

    • Spraying equipment requires continuous operation of a high-pressure air compressor;

    • Curtain coater machines primarily rely on gravity flow and low-power pumping systems;

    • Overall energy consumption can be reduced by approximately 20%–40%.

2. Paint Waste Comparison

    • Severe overspraying leads to paint waste;

    • Curtain coater machines can be equipped with an automatic paint return system to achieve closed-loop recycling.

3. Labor and Maintenance Costs

    • Spraying equipment requires manual adjustment of spray width, pressure, and spray distance;

    • Curtain coater machines achieve PLC control and automated operation, reducing reliance on manual labor.

Therefore, from an overall operating cost perspective, curtain coater machines offer better energy consumption control and economic benefits.

Is the curtain coater machine superior in terms of environmental protection and dust control?

The spraying process generates significant amounts of solvent evaporation and atomized dust, impacting both the environment and operator health.

In contrast, curtain coater machines have a natural advantage in environmental control.

1. Closed-Loop Coating Structure

The paint supply and return system of a curtain coater machine is typically a closed loop, effectively reducing volatile organic compound (VOC) emissions.

2. Zero Atomized Dust

Liquid curtain coating involves continuous liquid deposition, eliminating spray and aerosol issues.

3. Paint Recycling and Reuse

Automatic paint return systems can recycle and reuse excess liquid, significantly reducing wastewater treatment volume.

Therefore, in today's increasingly stringent environmental regulations in manufacturing environments, curtain coater machines are significantly superior to spray coating equipment in terms of environmental friendliness and resource utilization.

Is curtain coater machine maintenance more convenient?

From a maintenance perspective, is a curtain coater machine easier to manage? Equipment maintenance is a critical factor affecting production stability.

The maintenance methods for curtain coater machines and spray coating equipment also differ significantly.

Maintenance Features of Curtain Coating Machines

    • Simple die and liquid tank structure, easy to disassemble and clean;

    • Automatic cleaning and circulation system reduces manual operation;

    • Strong self-diagnostic function of the control system, easy to monitor remotely.

Maintenance Pain Points of Spray Coating Equipment

    • Nozzles are prone to clogging, requiring frequent replacement;

    • Spray guns and nozzles have a lot of residual paint, making cleaning difficult;

    • Frequent paint changes require a lot of manual operation.

In automated factories, curtain coater machines, with their automatic cleaning and visual control, are significantly more convenient to maintain than spray coating equipment.

Can Curtain Coating Machines Completely Replace Traditional Spray Coating Equipment?

Curtain coater machines cannot completely replace spray coating equipment in all scenarios.

The reason lies in the different process characteristics of the two:

Therefore, curtain coater machines and spray coating equipment are more suitable to be considered complementary:

    • For production lines requiring high precision, continuous, thin-film coating, curtain coater machines are the best choice;

    • For three-dimensional parts, small batches, or customized surface treatments, spray coating equipment remains indispensable.
