Can a UV Roller Coating Machine run continuously for 24 hours?

In modern furniture manufacturing and panel coating production lines, the UV Roller Coating Machine, with its advantages of high efficiency, environmental friendliness, and uniform coating, has become a core piece of equipment in the coating system. For many furniture factories, production capacity is closely related to equipment stability, so a common question is: Can a UV Roller Coating Machine run continuously for 24 hours?

This question seems simple, but it involves multiple technical aspects, including mechanical structure, coating performance, UV curing system heat dissipation, equipment maintenance, and production management.

This article will systematically answer this question, providing a comprehensive analysis from equipment principles to continuous operating conditions, giving you a deep understanding of the operating limits and key points for ensuring the performance of a UV Roller Coating Machine.

What is a UV Roller Coating Machine? Why is long-term continuous operation necessary?

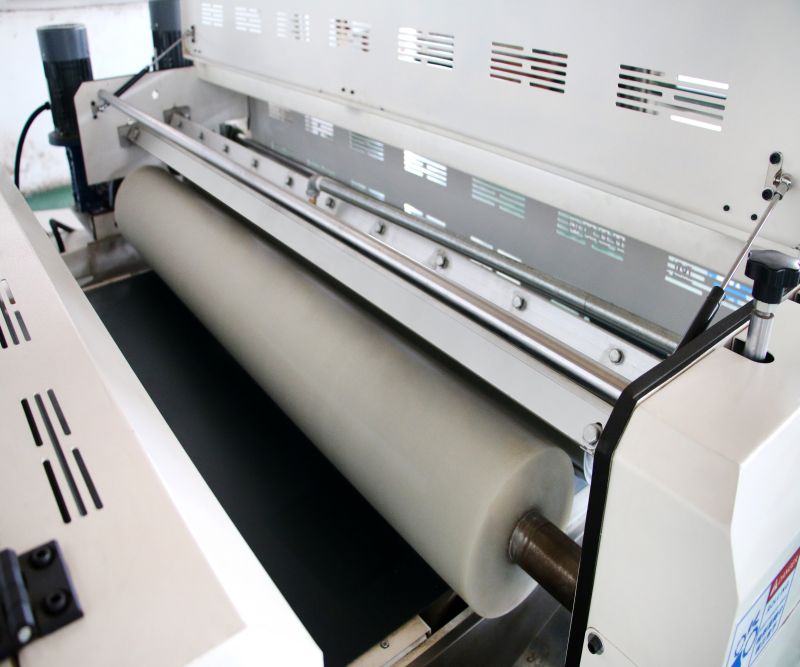

A UV Roller Coating Machine is a device that uses a roller structure to evenly coat UV-cured coatings (such as UV primers, topcoats, matte coatings, and high-gloss coatings) onto the surface of a panel. Compared to traditional spraying methods, it has the following significant advantages:

• High coating uniformity: Precise control achieved through roller pressing;

• High material utilization: Low paint loss;

• Good environmental performance: No solvent VOC emissions;

• Strong integration with UV curing lines: Enables fully automated continuous production.

On furniture production lines, production is typically calculated on a shift basis, with each shift lasting 8 or 12 hours. Some large enterprises adopt a 24-hour continuous production mode to fully utilize the production line's efficiency. Therefore, the ability to achieve 24-hour continuous operation of the UV Roller Coating Machine directly determines the upper limit of production capacity and equipment stability.

Can a UV Roller Coating Machine theoretically operate continuously for 24 hours?

Theoretically, a UV Roller Coating Machine is capable of 24-hour continuous operation.

The reasons are:

1. The mechanical structure is designed for continuous operation

The main machine's roller system, drive motor, conveyor system, and paint supply system all adopt industrial-grade design, with a rated operating cycle of thousands of hours.

2. UV Coatings are Fast-Curing Systems

UV-cured coatings cure within seconds, eliminating long waiting times or reaction delays.

3. Continuous Coordination of Coating and Curing Processes

Coating machines, UV curing machines, and sanders are linked through an automated control system, maintaining a stable 24-hour production line cycle.

However, it's important to emphasize that theoretical feasibility does not guarantee practical sustainability. In real-world production environments, continuous 24-hour operation places stringent requirements on the equipment's cooling system, roller durability, coating viscosity control, and operator maintenance frequency.

What are the Key Conditions for Continuous 24-Hour Operation?

For a UV Roller Coating Machine to operate stably and continuously for 24 hours, the following key conditions must be met simultaneously:

1. Normal Operation of the Lubrication and Cooling Systems

Prolonged operation causes the temperature of bearings, gears, and rollers to rise. Insufficient lubrication or inadequate cooling can easily lead to wear or thermal expansion deformation.

Therefore, the following should be ensured:

• Regularly apply high-temperature grease to all transmission parts;

• Ensure continuous operation of the cooling system (e.g., air-cooled or water-cooled devices);

• Regularly monitor roller temperature and bearing temperature rise.

2. Stable Coating Viscosity and Paint Supply System

UV coating viscosity is prone to change at high temperatures, affecting coating thickness and uniformity. For continuous production, the following must be maintained:

• A well-sealed paint supply system to prevent air ingress;

• A constant flow rate maintained by the circulating pump;

• Real-time monitoring and appropriate adjustments to coating viscosity.

3. Stable Heat Dissipation of the UV Lamp System

UV Roller Coating Machines are typically paired with UV curing machines. UV lamps generate significant heat during prolonged operation. The following must be maintained:

• Unobstructed airflow in the UV lamp box;

• Clean and dust-free quartz lamp surfaces;

• Regularly check lamp life and energy output.

4. Good Roller Surface Condition

Prolonged operation can easily lead to paint residue and impurities adhering to the surface, affecting coating results. Recommendations:

• Inspect the roller surface every 4 hours;

• Clean the metering roller and paint supply roller as needed;

• Prevent paint from hardening or drying on the roller surface.

5. Continuous Operation System

Personnel management is equally crucial. 24-hour production should employ a three-shift system, ensuring that each shift has a skilled operator inspecting the equipment and promptly identifying any abnormalities.

What are the advantages of continuous operation of a UV Roller Coating Machine?

If equipment and process conditions permit, continuous operation of a UV Roller Coating Machine can bring significant production advantages:

• Maximized capacity: 24-hour continuous operation can increase daily output of a single line by more than 2 times;

• More stable coating uniformity: Long-term constant speed operation reduces coating fluctuations caused by start-ups and shutdowns;

• Reduced paint waste: Avoids paint loss caused by frequent cleaning and reloading;

• Increased automation utilization: More efficient inter-equipment linkage and reduced manual intervention;

• Improved economic efficiency: With the same equipment investment, continuous production can significantly reduce fixed costs.

Because of these advantages, many high-efficiency production lines want UV Roller Coating Machines to operate continuously.

What are the risks of prolonged UV Roller Coating Machine operation?

While continuous operation improves efficiency, improper operation and maintenance can lead to the following problems:

1. Thermal Fatigue and Component Aging

Prolonged exposure to heat in critical components such as motors, bearings, and rollers can cause material fatigue, resulting in precision deviations or even malfunctions.

2. Coating Deterioration or Drying

Prolonged exposure of UV coatings to light sources or high-temperature environments can cause localized curing and increased viscosity, affecting leveling and coating quality.

3. Lamp Energy Decay

Continuous operation of UV lamps beyond the recommended duration leads to decreased light intensity, and incomplete curing can cause a sticky surface or insufficient brightness.

4. Roller Surface Contamination and Scratches

Long-term lack of cleaning can cause foreign matter to adhere, forming streaks, bubbles, or scratches.

5. Accumulated Human Error

24-hour production increases shift change frequency; if handover is not rigorous, errors in coating parameters or equipment malfunctions can easily occur.

Therefore, although UV Roller Coating Machines are capable of continuous operation, they require strict operational management and maintenance plans.

How to ensure the safe and stable continuous operation of a UV Roller Coating Machine?

The following are key measures to ensure the continuous and stable operation of a UV Roller Coating Machine:

1. Establish a scientific operating cycle

It is recommended to adopt an "8 hours of operation, 15 minutes of inspection" model, with a thorough cleaning and lubrication scheduled at least once every 24 hours.

2. Strengthen equipment inspection and maintenance

Daily inspection items include:

• Roller gap and surface condition;

• Coating supply system sealing;

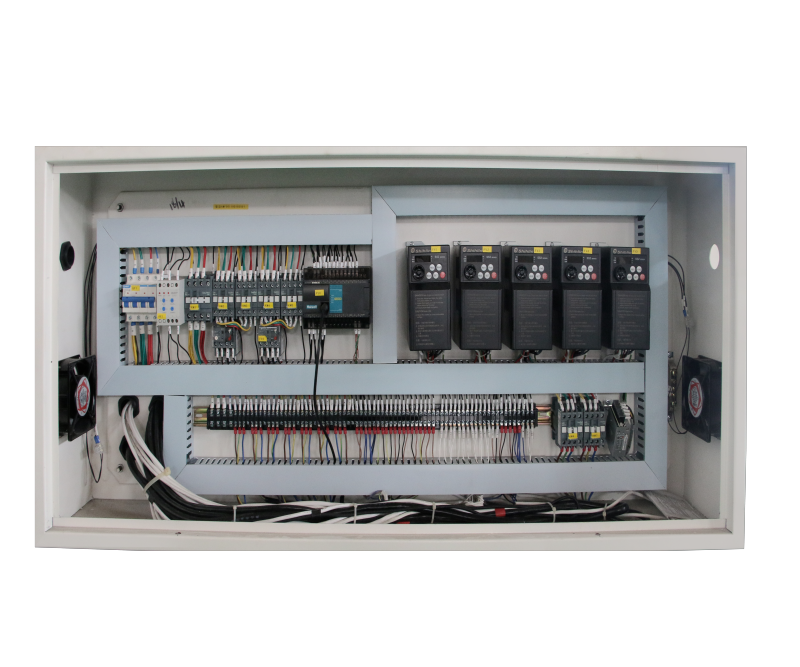

• Electrical control cabinet temperature and wiring tightness;

• Conveyor belt tension and cleanliness.

3. Maintain a constant temperature workshop environment

Coating performance is sensitive to temperature. The production environment should be maintained between 20–25℃, and the relative humidity controlled at around 50% to prevent the coating from becoming sticky or forming a skin.

4. Control UV Lamp On-Time

Use zoned lighting to reduce UV energy consumption during non-working periods; when production is paused for more than 10 minutes, the UV lamps should be turned off to extend their lifespan.

5. Standardized Operation Training

Ensure every operator is familiar with the structure, control logic, and emergency shutdown procedures of the UV Roller Coating Machine, and establish Standard Operating Procedures (SOPs).

Common Problems and Solutions for Continuous Operation of UV Roller Coating Machines

Through timely monitoring and maintenance, the UV Roller Coating Machine can achieve stable continuous operation, avoiding production interruptions and rework.

Which Continuous Operation Scenarios are Suitable for UV Roller Coating Machines?

Not all production lines are suitable for 24-hour operation. The following situations are more feasible:

• Mass production of standardized furniture: consistent product dimensions and fixed processes;

• Automated production line integration systems: strong equipment linkage and automated operation;

• High-viscosity UV primer and topcoat systems: suitable for long-term, non-delaminating cycles;

• Modern factory environments with controllable temperature and humidity.

Under these conditions, continuous operation of the UV Roller Coating Machine offers optimal economic benefits and quality stability.

Does 24-hour operation of the UV Roller Coating Machine require special configuration?

Yes. For long-term continuous operation, it is recommended to add the following configurations to the standard model:

• Automatic oiling and lubrication system: Maintains continuous lubrication of the rollers and gears;

• Online paint circulation and filtration device: Prevents paint sedimentation or impurity accumulation;

• Roller temperature control system: Water-cooled or air-cooled, controlling roller temperature stability;

• UV lamp energy monitor: Real-time monitoring of curing strength;

• PLC automatic alarm system: Monitors for abnormal current, temperature, and speed.

These configurations significantly improve the durability and operational safety of the UV Roller Coating Machine, making 24-hour uninterrupted production a reality.
