In the modern furniture, decorative panel, and industrial surface coating industries, the integration of automated production lines is becoming increasingly sophisticated. Automated coating machines are responsible for precise paint application, while UV dryers handle rapid curing. Combining these two on the same production line has become a key choice for many companies to improve production efficiency and surface quality.
However, many industry professionals often raise a crucial question when planning automated coating lines:
Can a UV dryer machine be used with an automated coating line?
To answer this question, a comprehensive analysis from multiple perspectives is necessary, including equipment principles, process matching, process flow integration, curing conditions, and safety control.
This article will systematically explain the feasibility, key points, technical considerations, and appropriate combinations of UV dryers and automated coating machines in different application scenarios.
What is a UV dryer machine? What role does it play in a coating production line?
1. Basic Definition of a UV Dryer Machine

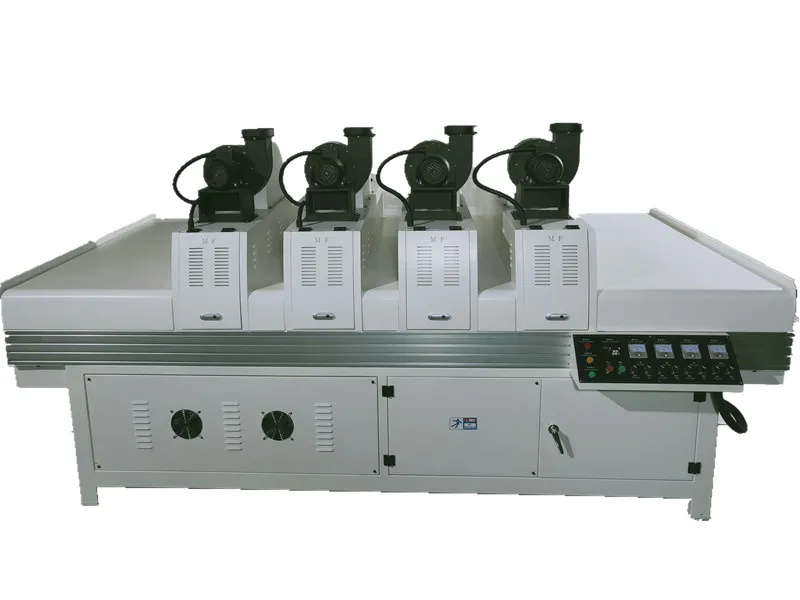

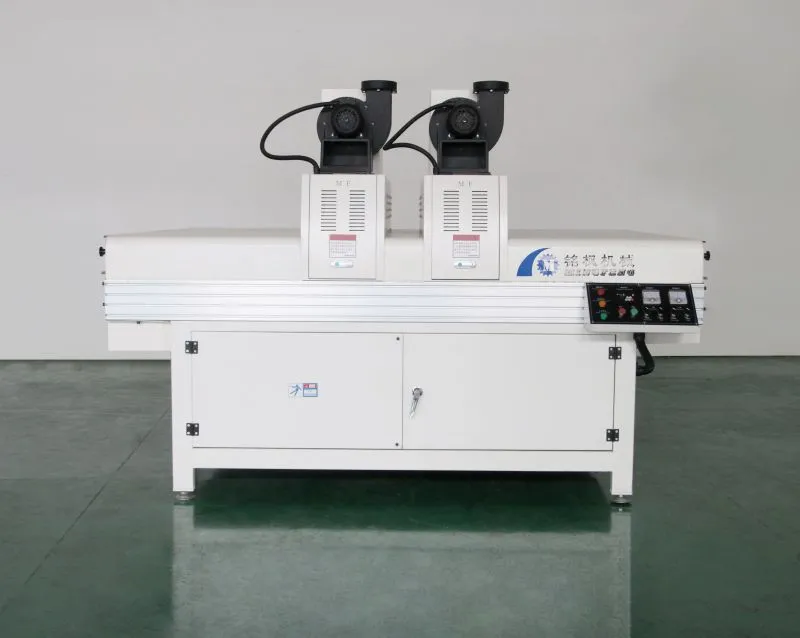

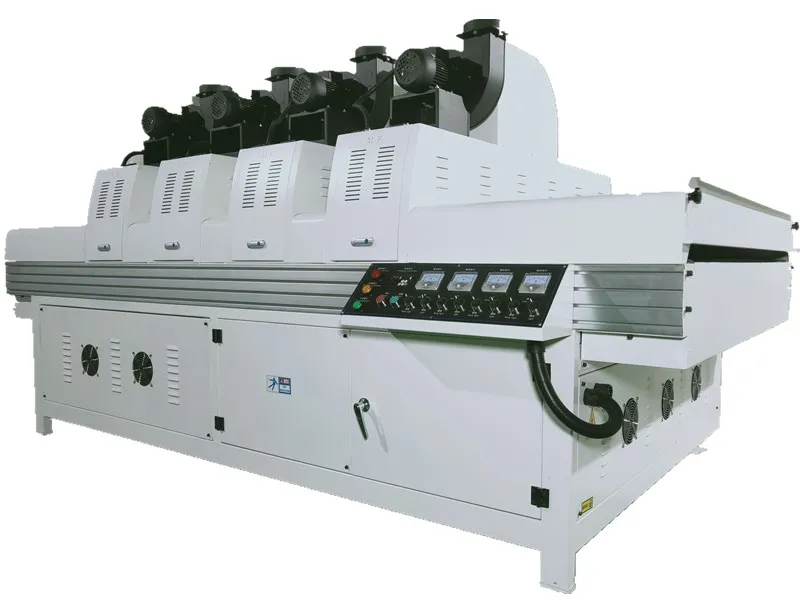

A UV dryer machine (UV Curing Machine) is a device that uses ultraviolet light (usually a high-pressure mercury lamp or LED light source) to irradiate the surface of a coating, causing the photoinitiator in the coating to rapidly initiate a polymerization reaction, thus instantly curing the paint.
In the coating process, the main functions of a UV dryer machine are:
• Rapidly converting liquid UV coatings into a solid film;
• Hardening the paint film, making it firmly adhered, wear-resistant, and scratch-resistant;
• Shortening drying time and increasing production cycle time;
• Improving surface gloss and finished product consistency.
2. Working Principle of a UV Dryer Machine
Its core lies in the UV curing reaction:
• When ultraviolet light irradiates a UV paint film containing a photoinitiator, the photoinitiator absorbs energy and forms free radicals;
• These free radicals react with low-molecular-weight monomers or oligomers in the coating to form polymers;
• The coating film transforms from a liquid to a solid state in a very short time.
This process is completed in almost a few seconds, therefore UV dryer machines are often used in high-speed automated production lines.
What are the working characteristics of an automatic spray coating machine?
1. Definition of an Automatic Spray Painting Machine
An automatic spray painting machine is a device that uses robotic arms, reciprocating machines, or rotary spray guns to automate the painting process. Through programmed control, it achieves uniform spraying of paint onto the surfaces of workpieces such as sheets, profiles, and door panels.
Common types of automatic spray painting machines include:
• Reciprocating automatic spray painting machine
• Robotic automatic spray painting machine
• Rotary cup spray painting machine
2. Main Functions of an Automatic Spray Painting Machine
• Replaces manual labor, achieving coating accuracy and consistency;
• Controls paint film thickness, reducing waste;
• Increases spraying speed and output;
• Ensures a uniform and smooth coating.
Therefore, in furniture coating production, the automatic spray painting machine is the core equipment for "painting," while the UV dryer machine is the core equipment for "curing." The two complement each other functionally, forming a complete automated coating system.
Can a UV dryer machine be paired with an automatic spray painting line?
The answer to this question is—absolutely, and very commonly.
In fact, the combination of an "automatic sprayer + UV dryer machine" has become standard on modern UV coating production lines. The two are interconnected and operate continuously, achieving fully automated production from spraying to curing.
However, to truly achieve stable and efficient production results, several key matching conditions must be met.
What are the key conditions for cooperating between a UV dryer machine and an automatic sprayer?
1. The coating type must be a UV-curable system
A UV dryer machine only has curing capabilities when using UV coatings (light-curing coatings). If solvent-based, PE, PU, or NC coatings are sprayed, they cannot be cured by a UV dryer machine; hot air or infrared drying should be used instead.
In other words: A UV dryer machine can be used with an automatic spraying line, but only if the sprayer is spraying UV paint.
2. Spray uniformity must adapt to UV curing characteristics
The spray thickness of the automatic sprayer must be controlled uniformly; otherwise, after UV irradiation, the following will occur:
• Insufficient curing in thick areas;
• Over-curing and brittleness in thin areas;
• Inconsistent surface gloss.
Therefore, automated spray coating lines are typically equipped with electrostatic dust removal, atomization control, and air circulation systems to ensure uniform coating thickness and stable curing by the subsequent UV dryer machine.
3. Matching Conveyor Speed with UV Energy
The output speed of the automated spray coating machine and the conveyor speed of the UV dryer machine must be synchronized; otherwise, the following will occur:
• Board accumulation;
• Insufficient illumination;
• Production line imbalance.
General requirements:
Conveyor belt speed = Spray coating machine cycle time × Curing energy time constant.
For example, if the UV dryer machine uses 120W/cm lamps, the conveyor speed can be controlled at 5–10 meters/minute. If the spray coating line speed is too fast, the number or power of the UV lamps should be increased accordingly.
What is the typical process flow when a UV dryer machine and an automated spray coating machine are used together?
To understand how they work together, it is necessary to understand the overall structure of the automated spray coating line.
Standard UV Automated Spray Coating Line Process Flow: Dust Collector → Automated Spray Coating Machine → Leveling Section → UV Dryer Machine → Cooling Section → Discharge
As can be seen, the UV dryer machine is usually located in the curing section after the automated spray coating machine, and it is the most critical energy conversion link in the entire automated spray coating line.
What are the technical advantages of using a UV dryer machine with an automated spray coating line?
1. High-efficiency curing, stable cycle time
The UV dryer machine's curing time is only a few seconds, greatly shortening the production cycle and perfectly matching the continuous spraying cycle of the automated spray coating machine.
2. Improved film hardness and abrasion resistance
After UV curing, the film's molecular structure is dense, and the hardness can typically reach 2H or higher, far exceeding that of thermosetting paints.
3. Energy saving and environmental protection
The UV dryer machine does not use high-temperature heating, and there is no solvent evaporation, meeting environmental protection requirements. When combined with the automated spray coating machine, the UV line effectively reduces VOC emissions.
4. Excellent Production Consistency
The automatic spraying machine controls the paint application rate, while the UV dryer machine controls the curing energy. Together, they ensure consistent gloss, thickness, and hardness on each board surface.
5. Adaptable to Multiple Coatings
Whether it's primer, topcoat, or clear coat, the UV dryer machine can be used with the corresponding automatic spraying machine station to achieve multi-layer continuous processes.
What issues should be considered when using a UV dryer machine with an automatic spraying machine?
1. Matching Spray Atomization Particle Size to UV Penetration
If the paint mist is too fine or too thick, UV light cannot penetrate completely, resulting in incomplete curing. It is recommended to use a high-voltage electrostatic nozzle or optimized atomization control on the automatic spraying machine to maintain a uniform coating.
2. Linked Adjustment of Lamp Power and Board Speed
The UV lamp power and conveyor speed should be inversely proportional. An adjustable power UV dryer machine can be selected and linked to the automatic spraying machine via a PLC system.
3. Ensure Isolation Between Spray Booth and Dryer
UV radiation must be prevented from entering the automatic spraying area; otherwise, premature curing of the paint or clogging of the spray gun may occur. A sealed leveling channel should be installed between the two sections.
4. Regular Maintenance and Light Source Calibration
UV lamp aging leads to energy decay, affecting curing results. UV illuminance should be checked regularly, and lamps should be replaced promptly to maintain curing stability.
Core Conclusions on the Integration of UV Dryer Machine and Automatic Spraying Machine
Through the above system analysis, a clear conclusion can be drawn:
The UV dryer machine can not only be used with automatic spraying lines, but is also the core curing equipment of the automatic spraying line.
The relationship between the two is:
• The automatic spraying machine is responsible for precise spraying;
• The UV dryer machine is responsible for efficient curing.
As long as the following conditions are met:
• UV-curable paint is used;
• The spray thickness is uniform;
• The conveyor speed is matched with the lamp energy;
• A reasonable leveling and isolation section is set;
• The UV dryer machine and the automatic spraying machine can then work together efficiently to achieve high-speed, environmentally friendly, and stable coating production.
