In the modern industrial coating field, automated equipment has become an important tool for improving production efficiency and ensuring product quality. Especially in industries such as furniture manufacturing, sheet metal processing, metal surface treatment, and plastic product coating, more and more companies are adopting automated spray painting production lines for mass production. In these production lines, UV dryers are one of the key pieces of equipment for achieving rapid coating curing.
When choosing UV drying equipment, many companies encounter a common question:
What is the difference between a 2-lamp UV dryer and a 4-lamp UV dryer machine? How should one choose in a spray painting production line?
In fact, UV dryers with different numbers of lamps differ in curing capacity, applicable processes, equipment structure, and production efficiency. Correctly selecting a UV dryer not only ensures the stable operation of the spray painting production line but also improves coating quality.
This article will provide a detailed introduction to the working principle of UV dryers, differences in the number of lamps, application scenarios, and selection methods to help companies better understand how to choose the right UV dryer for their spray painting production line.

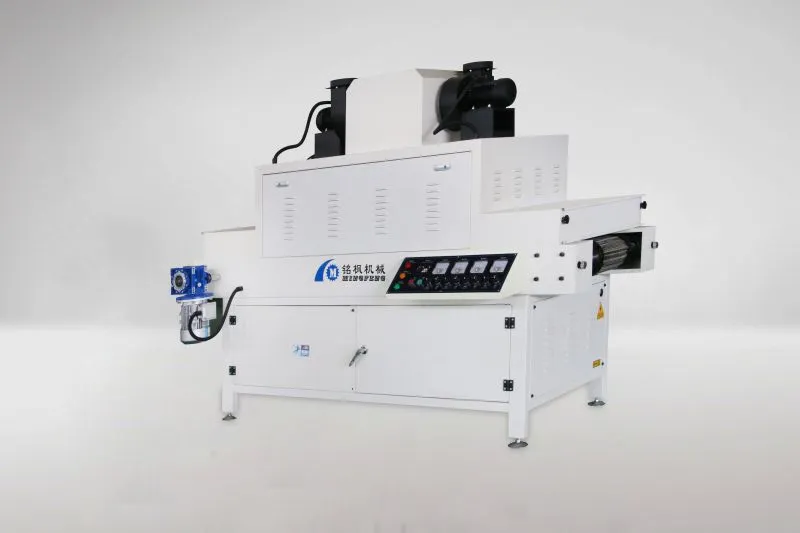

What is a UV Dryer?
A UV dryer is an industrial device that uses ultraviolet (UV) energy to rapidly cure paints, inks, or coatings. In automated painting production lines, UV dryer machines are typically installed after the spraying equipment to quickly cure freshly applied paint.
UV coating systems usually contain photoinitiators. When the UV light emitted by the dryer shines on the coating surface, the photoinitiator is activated, initiating a polymerization reaction and causing the coating to cure rapidly.
Compared to traditional hot air drying methods, UV dryers have the following advantages:
• Faster curing speed
• Relatively lower energy consumption
• Stable curing quality
• Suitable for continuous production
Therefore, UV dryer machines have become essential equipment in many automated painting production lines.
Why are UV dryers so important in painting production lines?
In automated painting production lines, the coated layer must cure within a short time; otherwise, production efficiency and product quality may be affected.
Without a UV dryer, the following problems may occur with the sprayed coating:
• Incomplete curing of the coating
• Surface adhesion
• Coating scratches
• Reduced coating adhesion
Therefore, the main functions of a UV dryer machine in a modern paint production line include:
• Accelerating coating curing speed
• Improving production line efficiency
• Increasing coating hardness
• Reducing production defects
By using a UV dryer, paint production lines can achieve continuous and efficient production.
What is the role of the UV lamps in a UV dryer?
The UV lamps are the core component of a UV dryer. They generate ultraviolet light, which causes the coating to cure.
The number and power of the UV lamps typically determine the curing capacity of the UV dryer machine. Therefore, in a paint production line, UV dryers with different numbers of lamps are suitable for different production needs.
Common UV dryer machine configurations include:
• 1-lamp UV dryer
• 4-lamp UV dryer
Among these, 2-lamp and 4-lamp units are more common in paint production lines.

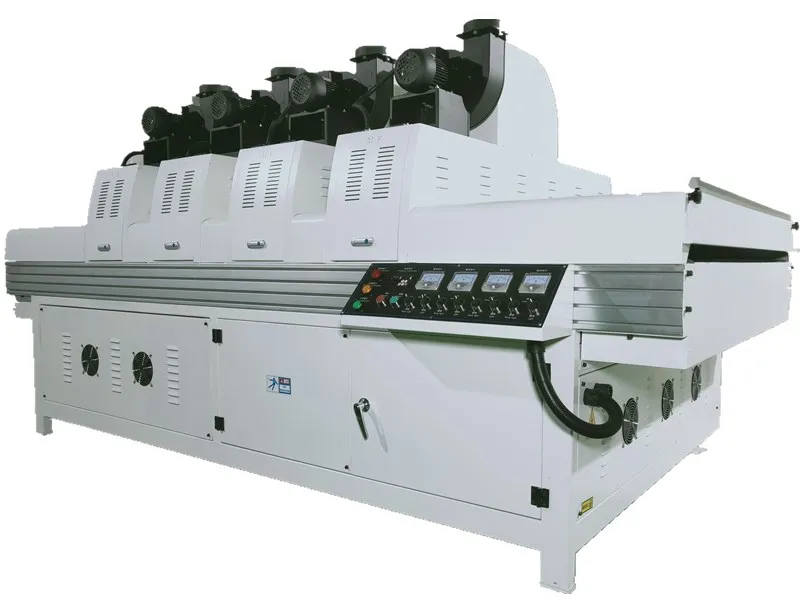

What are the characteristics of a 2-lamp UV dryer?
In automated spray painting production lines, a 2-lamp UV dryer is a relatively basic configuration.
This equipment typically has the following characteristics:
1. Relatively simple structure
A 2-lamp UV dryer has a compact structure and occupies less space.
2. Low energy consumption
Due to the fewer lamps, the overall energy consumption of the equipment is relatively low.
3. Suitable for thin coating curing
For spray painting processes with thin coatings, a 2-lamp UV dryer machine can usually meet the curing requirements.
4. Suitable for low-to-medium speed production lines
If the spray painting production line speed is low, a 2-lamp unit can usually provide sufficient curing capacity.
Therefore, in some spray painting production lines with relatively simple process requirements, a 2-lamp UV dryer machine is a common choice.

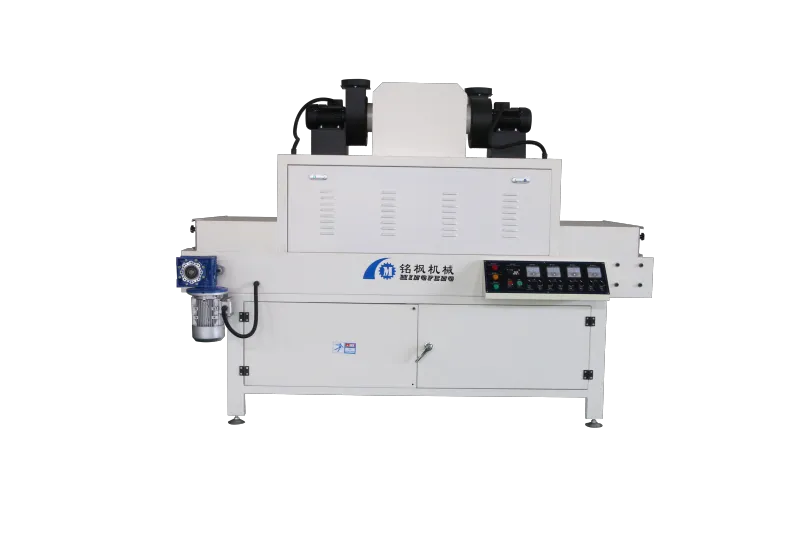

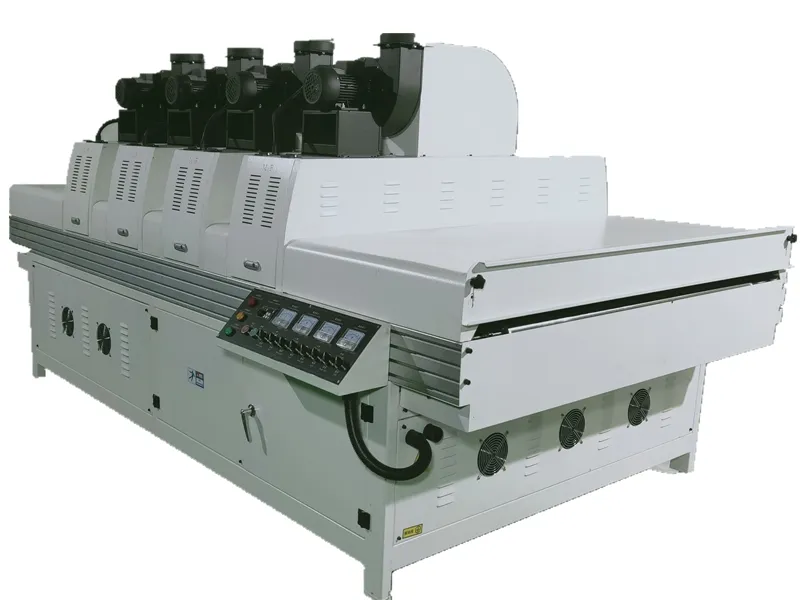

What are the characteristics of a 4-lamp UV dryer?
Compared to a 2-lamp unit, a 4-lamp UV dryer machine typically has a stronger curing capacity.
In automated painting production lines, 4-lamp UV dryers typically have the following characteristics:
1. Stronger Curing Capacity
More UV lamps provide higher intensity ultraviolet light, thus improving curing efficiency.
2. Suitable for Thick Coatings
If the painting production line uses thicker coatings, a 4-lamp system is generally more suitable.
3. Suitable for High-Speed Production Lines
High-speed painting production lines require stronger curing capabilities, therefore 4-lamp UV dryer machines are commonly used.
4. More Stable Curing Results
The multi-lamp design allows for more uniform ultraviolet light distribution, thus improving curing quality.
Therefore, 4-lamp UV dryers are widely used in painting production lines with high process requirements.
What are the main differences between 2-lamp and 4-lamp UV dryers?
In automated painting production lines, the main differences between 2-lamp and 4-lamp UV dryers are as follows:
1. Different Ultraviolet Intensity
4-lamp systems typically provide higher ultraviolet energy.
2. Different Curing Capabilities
A 4-lamp system is more suitable for thick coatings or complex processes.
3. Different Applicable Production Speeds
High-speed painting production lines typically require stronger curing capabilities.
4. Different Equipment Costs
The more lamps, the higher the equipment cost.
Therefore, when selecting a UV dryer machine, it is necessary to determine the specific needs of the painting production line.
FAQ
How to Choose the Right UV Dryer for a Painting Production Line?
Choosing the right UV dryer is crucial when planning an automated painting production line. Several factors typically need to be considered:
What is the production speed of the painting production line?
Production line speed is a significant factor in selecting a UV dryer machine. Higher production line speeds require stronger curing capabilities.
In this case, a 4-lamp UV dryer is usually more suitable.
What is the Coating Thickness?
Coating thickness also affects the selection of a UV dryer. Thicker coatings require higher UV energy.
Therefore, thick coating processes typically require multi-lamp UV dryer machines.
Is there sufficient space in the painting production line?
Different types of UV dryers vary in size. If production line space is limited, a more compact device may be necessary.
What type of paint is used in the painting production line?
Different paint systems have different UV energy requirements. Therefore, the type of paint needs to be considered when selecting a UV dryer.
How to ensure the stable operation of the UV dryer in the painting production line?
Regular maintenance is required to ensure the stable operation of the UV dryer machine in the painting production line.
Common maintenance measures include:
• Regularly check the condition of the UV lamps
• Clean the reflectors
• Check the cooling system
• Maintain good ventilation for the equipment
Good maintenance ensures long-term stable operation of the UV dryer machine.
