With the manufacturing industry's continued progress to automation, mass production, and accurate precision, firms are more than ever demanding improved product surface treatments. Although the methods of traditional manual brushing and spraying are not only time-tested but also very popular, problems of unstable coating thickness, slow production speed, expensive labor cost, and waste of paint are the result of large production.
In particular, the need for speedy, well-painted, and stable coating of the products have become important elements for furniture factories, sheet processing, interior building, new energy material, electronic parts, and the general factory industry sectors of a company in order to make its product competitive.
With that in mind, curtain coating production lines have become an integral part of the industrial surface coating equipment sector. Unlike the standard method of paint spraying, curtain coating is a continuous and steady coating method. The coating takes place as work pieces move through the so-called curtain paint coating area which completely covers the work pieces. The result is an extremely fast as well as perfectly consistent surface coating. Owing to the advantages such as the high-speed coating process, the very high pigment to paint conversion ratio with minimum waste, and the capability to carry out continuous production, curtain coating production lines are finding their way into a large number of industry sectors.
Quite a number of firms when picking out surface coating equipments concentrate their decision-making on just one issue: to what extent are curtain coating production lines really necessitated by various kinds of industries, products? Is everything possible to be coated in such a way? What edge can there be as curtain coating production lines are placed side by side with spray coating equipments?
In fact, curtain coating production line has not completely substituted other types of surface coating machinery, it only has an edge under particular situations like materials, modes, and standards of materials, production, and quality.
This article will do an in-depth discussion on curtain coating technology, suitable applications, and benefits from its use.
Curtain coating line production: Characteristics, industries for use, and benefits
Work Principle and Advantage Characteristics:

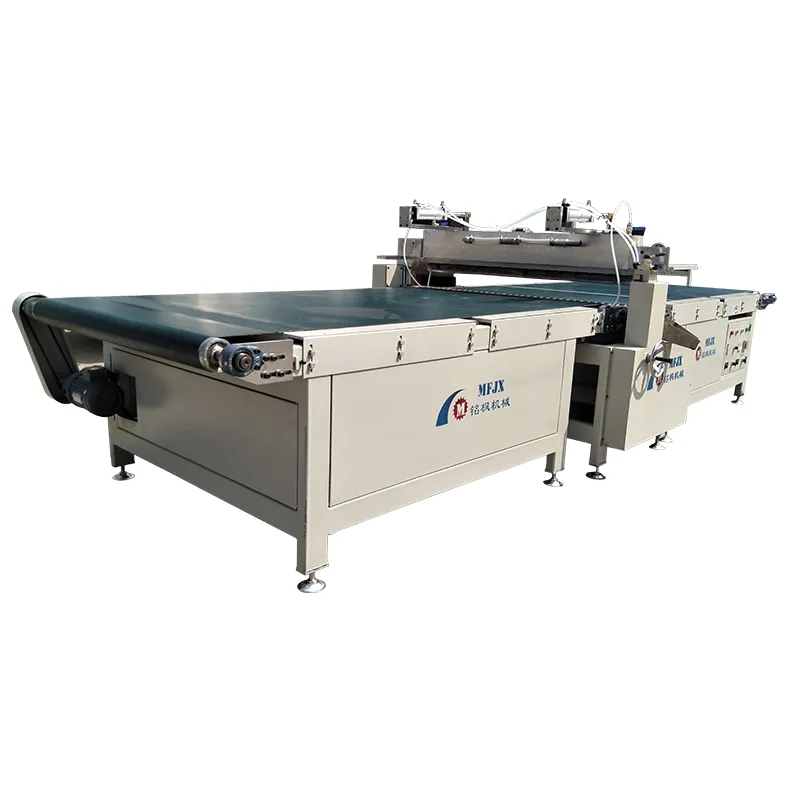

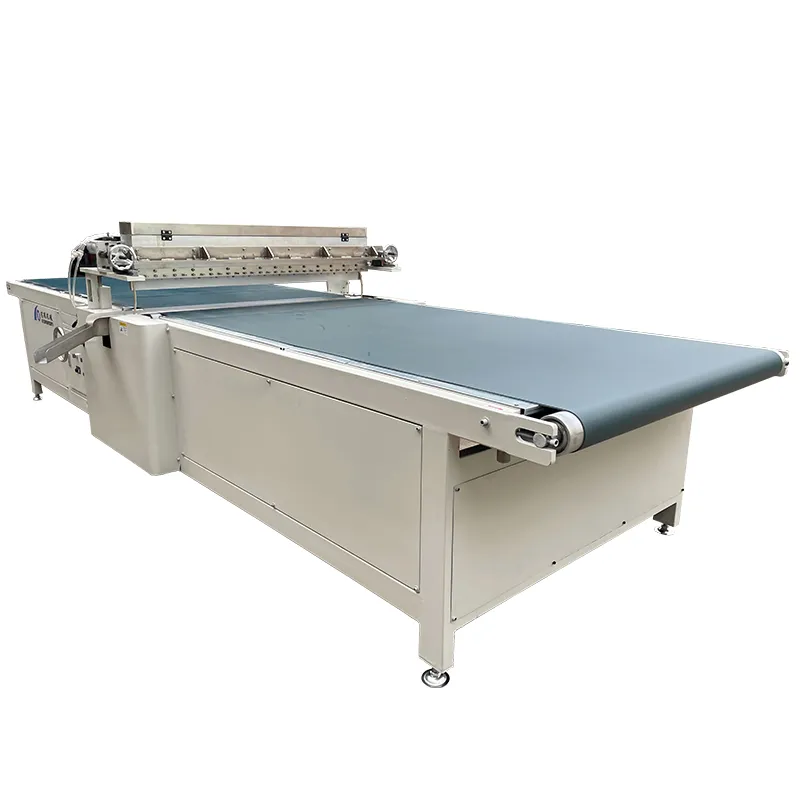

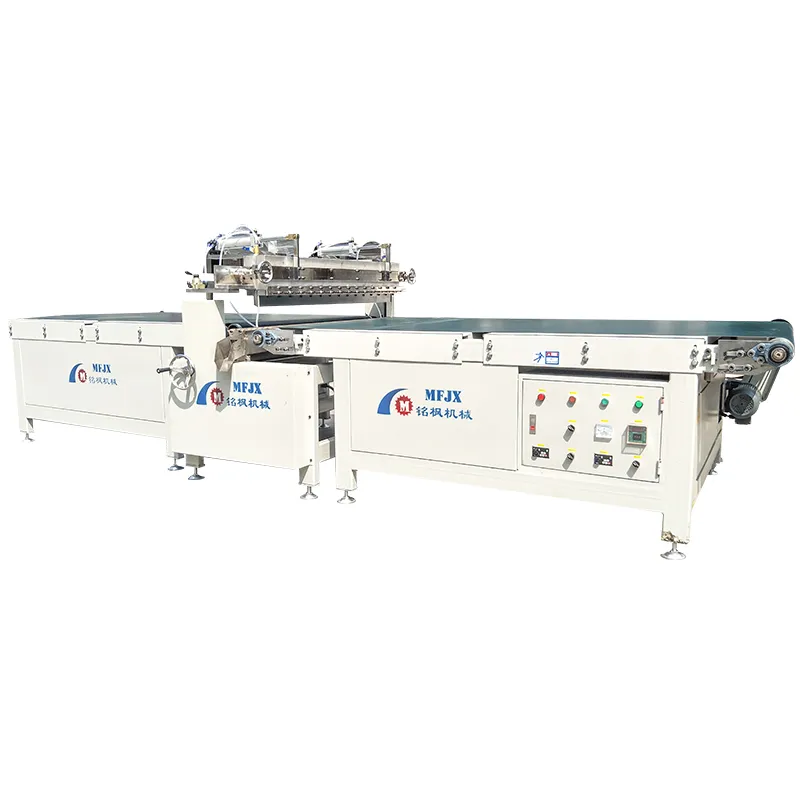

Curtain coating line is an automatic machine of surface coating which paints via the use a paint circulating system to constantly generate a curtain (in the form of a thin waterfall of paint). When workpieces such as flat sheets, glassware, metal sheet are passed through the curtain area, a film layer forms, the paint covers evenly the whole surface, the excess paint being collected back into the recycling system for use.

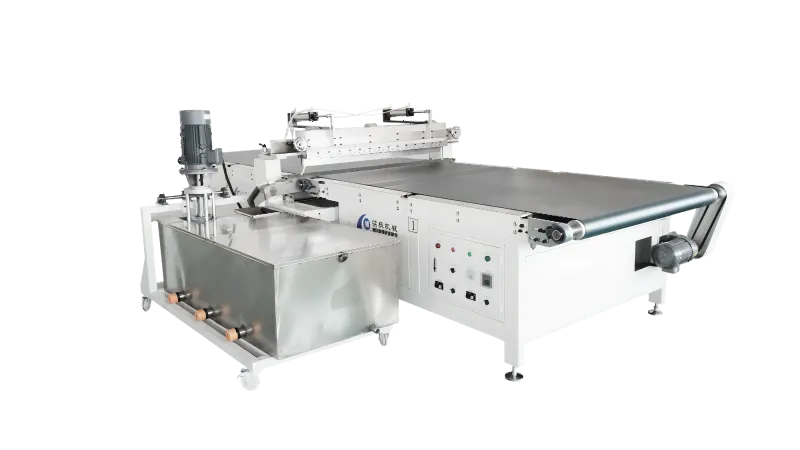

Generally an entire curtain coating line includes:
• Automatic Feeding System;
• Carrying System;
• Curtain Coater Body;
• Paint Circulation System;
• Paint Filtration System;
• Leveling Area;
• Drying Unit or UV Curing Unit;
• A Control System.
During work, paint is pumped through to the coating head and a constant stable paint drop is created from the head. When work pieces in the form of sheets pass through the area of paint curtain they get painted evenly over the entire area and the surplus paint is collected to form a circulation system for reuse.
The most apparent advantages of curtain coating lines are the fact that they are continuous and uniform. During painting, paint is broken down into droplets to get paint dust and some of the paint escapes to the air. On the contrary, curtain paint coating is the only type of direct coating technique and therefore paint loss is kept under control. Statistics from different applications show that for established curtain coating lines the paint utilization level is 85–95 % while conventional painting methods that are dependent upon the equipment, environment, and working may not reach the utilization rate higher than 70 %.
Moreover, curtain paint coating lines are the type of coating method suitable for producing very big and long materials. Taking for example, in the case of furniture panels, wooden doors, and decorative panels the brush method is time-consuming not just but also can result in brush marks and irregularities. With spray coating the quality stays stable even at high speed production.
The furniture manufacturing industry is the most important application area for curtain coating production lines
1. Processing of Wooden Doors, Cabinets, and Furniture Panels
The furniture industry is one of the most mature application areas for curtain coating production lines. As consumers' demands for furniture appearance, environmental performance, and surface durability continue to increase, furniture companies are increasingly emphasizing the application of automated coating equipment.
In traditional furniture production, products such as wooden doors, cabinet doors, and decorative panels typically require multiple primer and topcoat treatments. Manual methods not only have limited production efficiency but also easily lead to quality variations between different operators. Curtain coating production lines, however, enable continuous, large-scale coating, improving product consistency.
For example, an automated furniture panel curtain coating production line can process hundreds of square meters or even more panels per hour. The specific capacity depends on the equipment width, conveyor speed, and coating requirements. Compared to manual coating, production efficiency can be increased several times, while significantly reducing labor input.
In the furniture industry, curtain coating production lines are mainly used for:
• MDF boards;
• Solid wood boards;
• Plywood;
• Wooden doors;
• Cabinet door panels;
• Decorative wall panels;
• Flooring substrates.
Especially in the UV furniture production field, curtain coating production lines are usually used in conjunction with UV curing equipment. After spray coating, the product immediately enters the UV drying zone, allowing the coating to cure rapidly, thus achieving high-speed continuous production.
Why does the building decoration industry need curtain coating production lines?
As the construction industry develops towards green and industrialized directions, the demand for surface coatings for building decoration materials is constantly increasing. Many building materials not only need to be aesthetically pleasing but also need to possess weather resistance, corrosion resistance, moisture resistance, and wear resistance.
Curtain coating production lines are mainly used in the building decoration industry for:
• Aluminum sheets;
• Aluminum composite panels;
• Decorative composite panels;
• Fireproof boards;
• Wall decoration materials.
For example, in the processing of aluminum sheets, a protective layer and a decorative layer need to be coated on the metal surface to improve the material's oxidation resistance. Because sheet metal is typically large and requires continuous production, curtain coating production lines effectively meet this need.
Compared to spray coating, curtain coating production lines offer significant advantages for processing building panels. Firstly, the coating coverage is more uniform, reducing localized thickness variations. Secondly, material utilization is higher, helping to reduce production costs. Thirdly, the continuous conveying mode is suitable for large-scale production.
For building decoration companies, a stably operating curtain coating production line can significantly increase capacity and improve product consistency, thus becoming an essential piece of equipment for large-scale sheet metal processing plants.
Demand for curtain coating production lines in the Electronics and Precision Manufacturing Industries
Electronic product manufacturing has extremely high requirements for surface quality, especially in consumer electronics, home appliances, and precision components. Products not only need a good appearance but also require properties such as wear resistance, scratch resistance, and corrosion resistance.
Curtain coating production lines can be used to process:
• Electronic panels;
• Home appliance casings;
• Plastic decorative parts;
• Precision sheet metal;
• Functional protective films.
When using spray coating in the electronics industry, the focus is typically on coating uniformity and surface cleanliness. For example, some electronic device casings require a transparent protective coating. Inconsistent coating thickness can affect the product's appearance and performance.
Automated coating production lines, through precise control of conveyor speed, paint flow rate, and coating thickness, can reduce human error and improve batch stability.
Furthermore, with the continuous growth of smart home and consumer electronics products, the demand for high-quality surface treatments continues to increase, further driving the development of coating production lines in the electronics manufacturing sector.
Applications of Coating Production Lines in the Glass Processing Industry
Glass is a very smooth material, requiring high coating uniformity; therefore, coating production lines are widely used in the glass processing industry.
Common applications include:
• Architectural glass;
• Appliance glass;
• Decorative glass;
• Photovoltaic glass;
• Automotive glass.
Glass surface coatings can achieve:
• Anti-fog function;
• Anti-fingerprint function;
• Decorative effect;
• Anti-reflective effect;
• Protective function.
Because the glass surface is flat and lacks obvious unevenness, it is very suitable for coating processing. By controlling the height of the coating head, the viscosity of the coating material, and the conveying speed, highly uniform film coverage can be achieved.
Especially against the backdrop of the rapid development of the new energy industry, the increasing demand for functional coatings in photovoltaic glass has provided new application opportunities for coating production lines.
Is coating production lines suitable for the automotive parts industry?
The automotive manufacturing industry has very strict requirements for coating quality. Although large car bodies mainly use spray painting, many automotive parts and flat decorative components are also suitable for coating production lines.
Main application products include:
• Automotive interior panels;
• Plastic decorative components;
• Door panel assemblies;
• Instrument panel components;
• Flat composite materials.
Automotive parts production is typically characterized by large batches and a high degree of standardization; therefore, automated coating production lines can effectively improve production efficiency.
For example, some automotive interior materials require wear-resistant, UV-resistant, and anti-aging treatments. Coating processes can achieve stable coverage, and combined with drying equipment, rapid curing can be achieved.
With the continuous development of the new energy vehicle industry and the increasing application of lightweight materials and composite materials, coating production lines still have significant growth potential in the automotive parts sector.
Why do the plastics and composite materials industries choose curtain coating production lines?
Due to their unique surface properties, plastics and composite materials often require functional coating treatments, such as improved wear resistance, increased gloss, or enhanced appearance.
Curve coating production lines can process:
• PVC sheets;
• ABS sheets;
• PET materials;
• Composite decorative panels;
• Polymer materials.
Compared to traditional spraying, curtain coating reduces paint mist pollution, increases paint utilization, and is more suitable for continuous sheet processing.
However, because some plastic materials have low surface energy, surface treatment is usually required before using a curtain coating production line. This can be done through plasma treatment, corona treatment, or primer treatment to enhance coating adhesion.
Which products are best suitable for the curtain coating production lines?
Curtain coating production lines can be applied to various products and are quite versatile. However, that does not mean you can coat any product with them.
Apart from the obvious, we have the following reasons why certain products will give a better result:
1. Large surface area products. As curtain coating is carried out on a continuous flowing "curtain" of paint, the smoothness and flatness of the product play a vital role in achieving excellent results.
As explained in the above, a product can be coated even if it is only partially smooth. However, in general, curtain coating will give the best result if the product is entirely smooth. As mentioned earlier, the paint in its flow can reach all parts of the product.
2. Products for large-scale production. We should only go for equipment with high ROI if the processing volume of a product per day is small. Whereas, large scale continuous production will highlight more advantages of the curtain coating production line.
3. Products with high requirement of coating uniformity. For products as furniture panels, decorative panels, and metal sheets require the film thickness to be stable and the appearance of the product to be consistent.
4. Products needing multiple coating stages. Curing production lines connect easily with primer, topcoat, and curing systems, allowing fully automated continuous production!
What factors should companies consider when selecting the curtain coating production line?
Companies are advised not to solely focus on equipment price when acquiring a curtain coating production line but to also comprehensively weigh product features, production capacity, and expansion plans.
1. To begin with, the type of material to be treated should be determined. Different coating, roller, conveying methods, and curing equipment are required for different materials. In some cases, the curing oven for one type of coating may not be suitable for another type.
2. Then, it is important to assess the required production speed. If the company produces at a very large scale, it should choose a high degree of automatization equipment with a more stable circulation system.
3. Another factor is the coating requirements. For example, if the customer needs coating with high-gloss, or high-abrasion-resistant, or some special functional coating, a compatible coating system and curing method must be selected.
Apart from considering the price of the equipment and the technical aspects, we cannot ignore one thing – equipment maintenance!
An excellent curtain coating production line should be easy to operate, convenient to clean, and stable in running.
Built with foresight, enterprises will be fully empowered by their production line curtain coating.
FAQ
1. Which industries are curtain coating production lines mainly suitable for?
Curtain coating production lines are mainly used in furniture manufacturing, building decoration, electronics, glass processing, automotive parts, plastic products, and composite material processing. As long as the product surface is relatively smooth and continuous, high-efficiency coating processing is required, a curtain coating production line can be considered.
2. What is the difference between a curtain coating production line and a spray coating production line?
A curtain coating production line covers the workpiece surface with a liquid curtain, while a spray coating production line processes the coating by atomizing it with a spray gun. Curtain coating production lines typically have higher coating utilization and more stable film thickness control, making them more suitable for continuous production of large-area flat materials.
3. What materials can a curtain coating production line process?
A curtain coating production line can process wood, engineered wood, metal sheets, glass, plastic sheets, composite materials, and some thin film materials. The specific applicable scope depends on the material surface condition, coating type, and equipment configuration.
4. Does a curtain coating production line require a drying device?
Typically, it is required. Depending on the coating used, the back end of the curtain coating production line can be equipped with UV curing equipment, hot air drying equipment, or infrared curing equipment to quickly stabilize the coating and improve production efficiency.
5. Is a curtain coating production line suitable for small-batch production?
The biggest advantage of a curtain coating production line is its continuous and large-scale production, making it more suitable for medium to large-batch production. If the production quantity is small, a comprehensive evaluation of equipment investment costs and long-term benefits is necessary.
